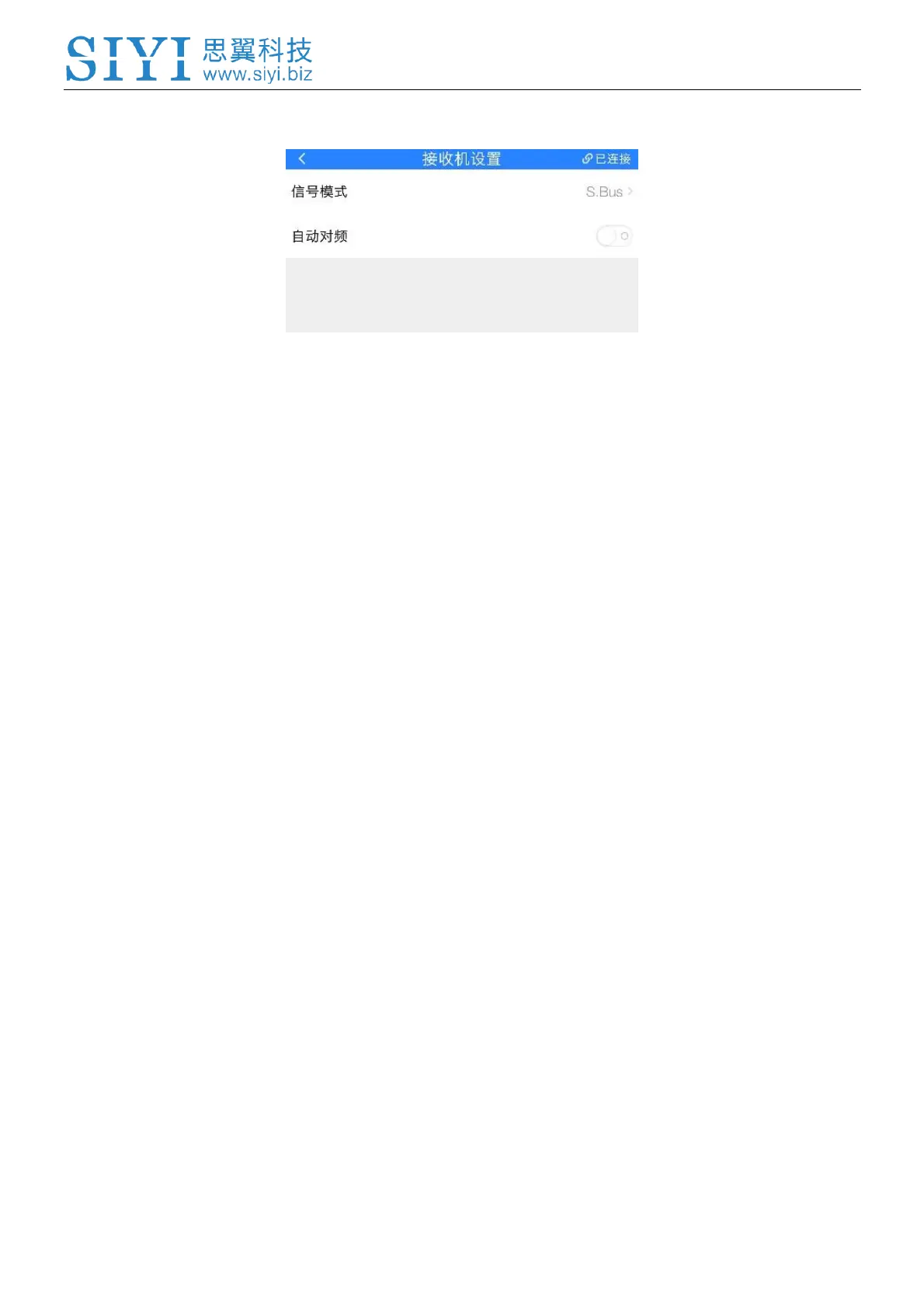

Signal Mode
Set different signal mode according to XR32 receivers three different output mode,
SBUS, PPM and PWM.
Auto Linking
When datalink sky station is powered on, the automatic linking function is turned on,
and receives no signal from datalink ground station in 20 seconds, datalink sky
station starts linking to ground station automatically.
Automatic linking function is to simplify procedure. We suggest users to turn on the
function when datalink sky station is installed in aircraft body, thus they have no
approach to sky station’s linking button.
4.2 Channel
Channel settings help user adjust end point, middle point, channel reverse and
channel mapping of each channel.
