DEEP-V BOATS

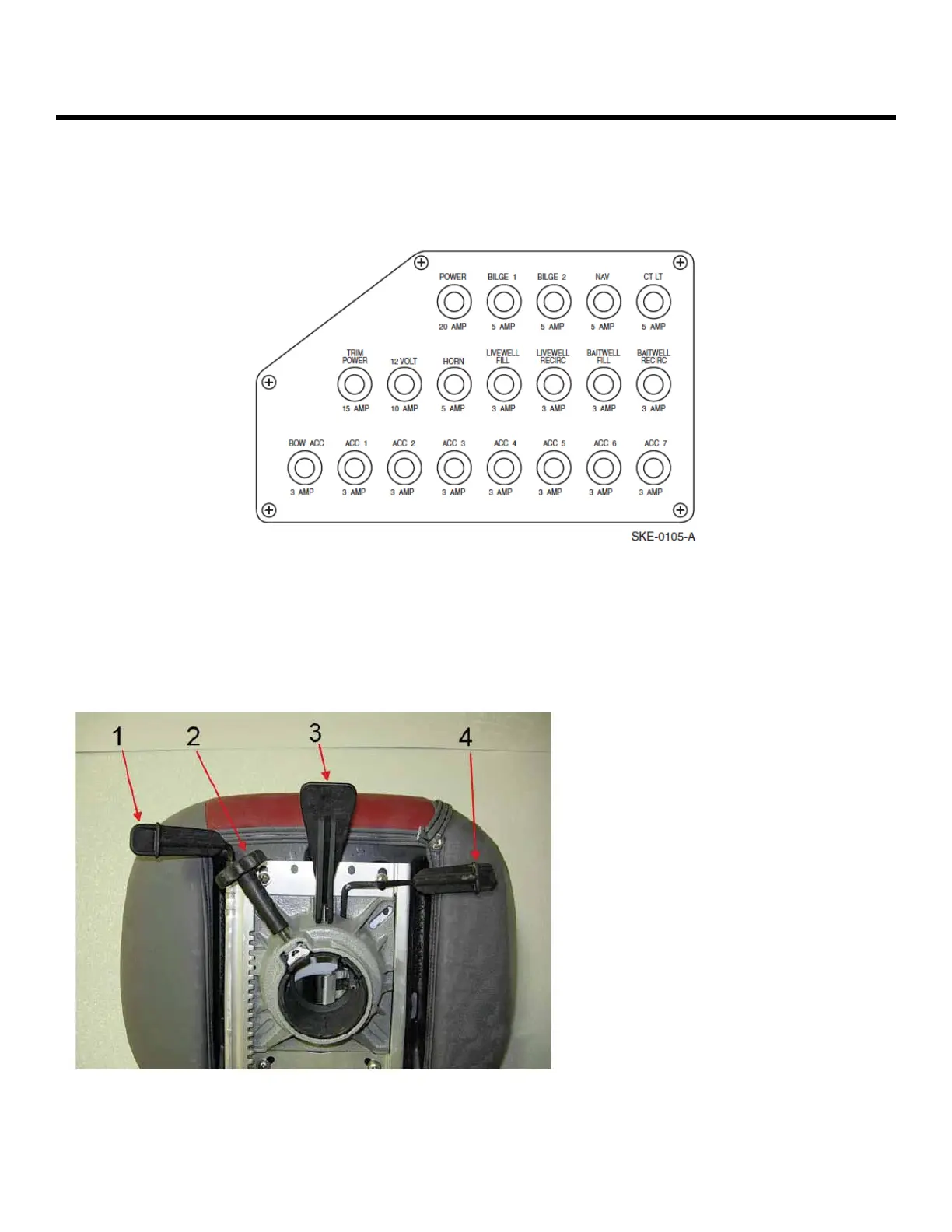

Circuit Breakers – MX1825, MX2025, WX2190, and WX2060
The circuit breaker panel is located under the helm console. The breaker button will pop out when the
circuit is overloaded. Press in the breaker to reset it.
WX Series Driver’s Pedestal Seat
1. This lever adjusts the seat fore
and aft.
2. Twist this handle to increase
friction on post or lock
the seat from turning.
3. This lever locks the seat in the
forward position.
4. This lever allows you to raise and
lower the seat.
Adjustable and Movable Seats
Circuit Breaker - MX1825, MX2025, WX2190 and WX2060
Figure 3-14
WX Series Driver’s Seat
Figure 3-15
