4.7 Terminal board 100 to 240 VAC
4.7.1 Terminal board 24 VDC

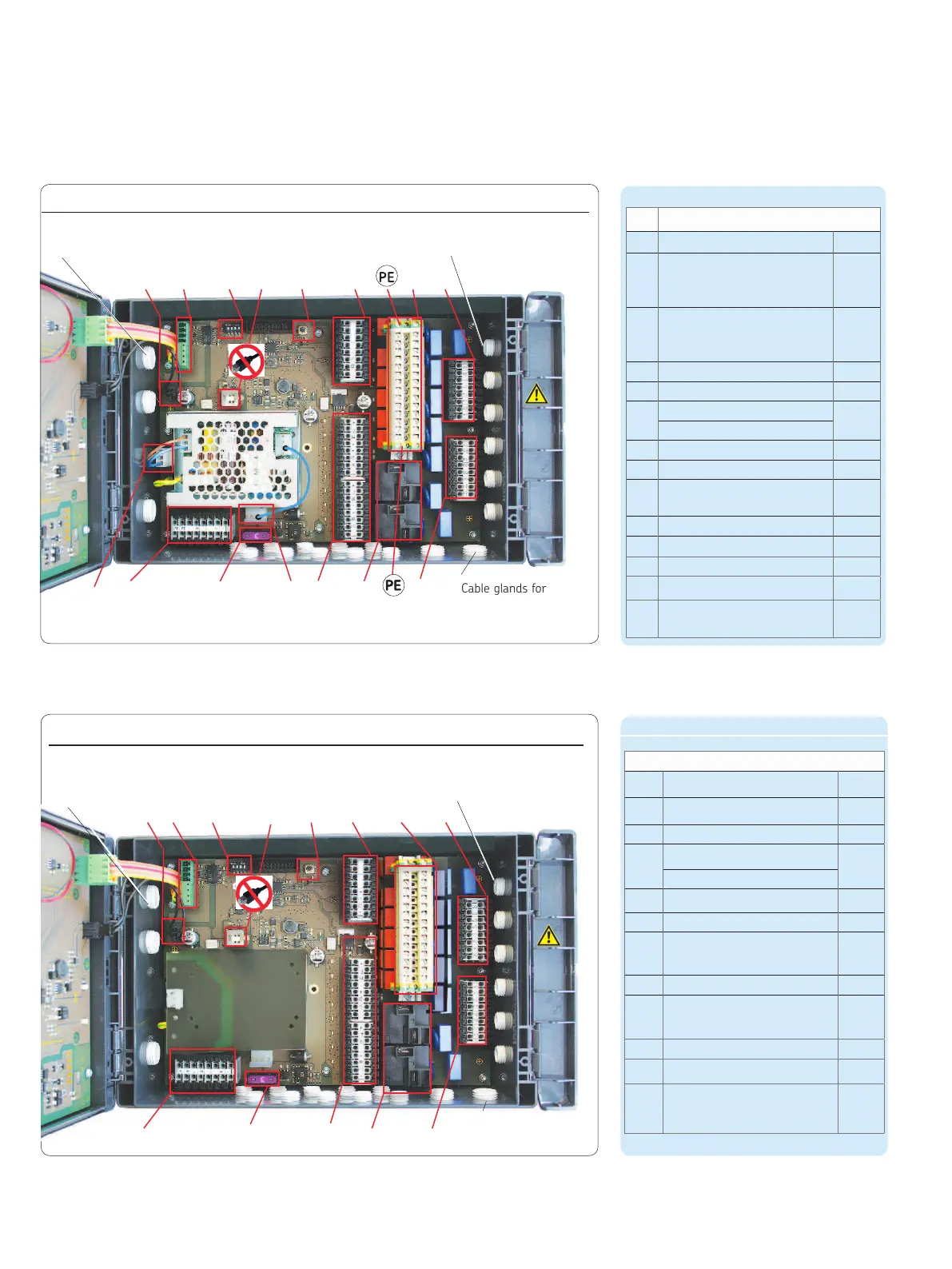

Connections on mainboard, 100 to 240 VAC design, Fig. 4
Cable glands for
sensors
Cable glands for power supply/interface
Cable glands for valves/motor
Legend to Figure 4
Item Description BA-Chapter
1
Power supply X1
4.7.2
1a
Internal 100 to 240 VAC con-
nection for the AC/DC power
supply unit
1b
Internal 24 VDC connection
from AC/DC power supply unit
to the board
2
Digital inputs X2
4.7.6
3 Digital/Analog inputs X3
4.7.7
4
4.1 Relay outputs X4
4.7.3
4.2 Relay outputs X4
5
RS485-Interface
6
24 VDC output for mainboard
7
USB port (external)
Not for User
8
DIP switch addresses 4.8
9
RESET switch Hardware Reset
10
Fuse
(FK1) 3A
11
Load switching relay (2x) X5
4.7.5
12
PE/Ground terminals for relay
outputs X6
4.7.4
Connections on mainboard, 24 VDC design, Fig. 5
Cable glands for power supply/interface
Cable glands
for valves/motor
Legend to Figure 5
Item Description BA-Chapter
1 Power supply X1
4.7.2
2 Digital inputs X2
4.7.6
3 Digital/Analog inputs X3
4.7.7
4
4.1 Relay outputs X4
4.7.4
4.2 Relay outputs X4
5
RS485 Interface
6
24 VDC output for main board
7
USB port (external)
Not for User
8
DIP switch addresses 4.8
9
RESET switch
Hardware Reset
10
Fuse (FK1) 3A
11 Load switching relay (2x) X5
4.7.5
12
PE Ground terminals for relay
outputs X6
4.7.4
1a 1 10 1b 2 11 4.2
6 5 8 7 9 3 12 4.1
1 10 2 11 4.2
6 5 8 7 9 3 12 4.1
Cable glands
for sensors
