Unit Configuration
Analogue Inputs
3 - 2 SKF Multilog On-Line System IMx-S
User Manual – Revision S

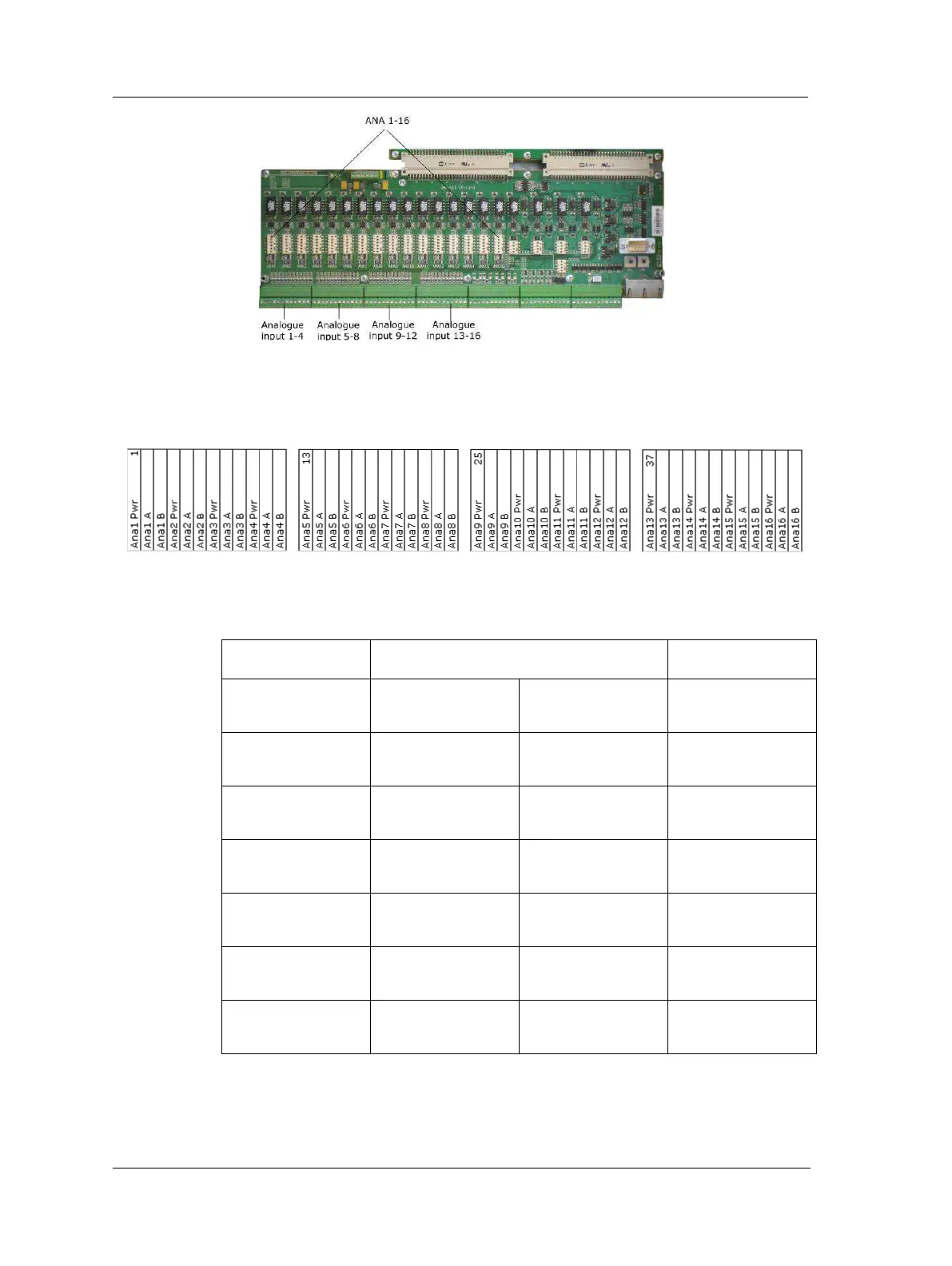

Figure 3 - 2.
IMx-S I/O Board, Analogue Inputs.
Table 3-2: Analogue terminal list.
The DIP switch settings for connected analogue sensors must be applied according to
the table below.
Table 3-3: DIP switch settings for analogue sensors.
Signal
Terminal
DIP Settings
position: 123456
Standard
accelerometer
(2-wire, IEPE)
N.C.
+ Signal/Pwr
Com.
Pwr
A
B
100110
Voltage source
N.C.
+ Signal
Com.
Pwr
A
B
000000
4–20 mA source
N.C.
+ Signal
– Signal
Pwr
A
B
000001
B-sensor (4–20 mA
output)
+24 V
Signal
Com.
Pwr
A
B
100101
Eddy current probe
(–24 V)
–24 V
Signal
Com.
Pwr
A
B
011000
Voltage powered
sensor (max 35 mA)
+24 V
Signal
Com.
Pwr
A
B
100100
4–20 mA (IMx
powered)
+ Signal
– Signal
N.C.
Pwr
A
B
100101
N.C. = Not Connected
DIP switch setting 1 = ON, 0 = OFF
