6 SKF SYSTEM 24 - LAGD 60 / LAGD 125

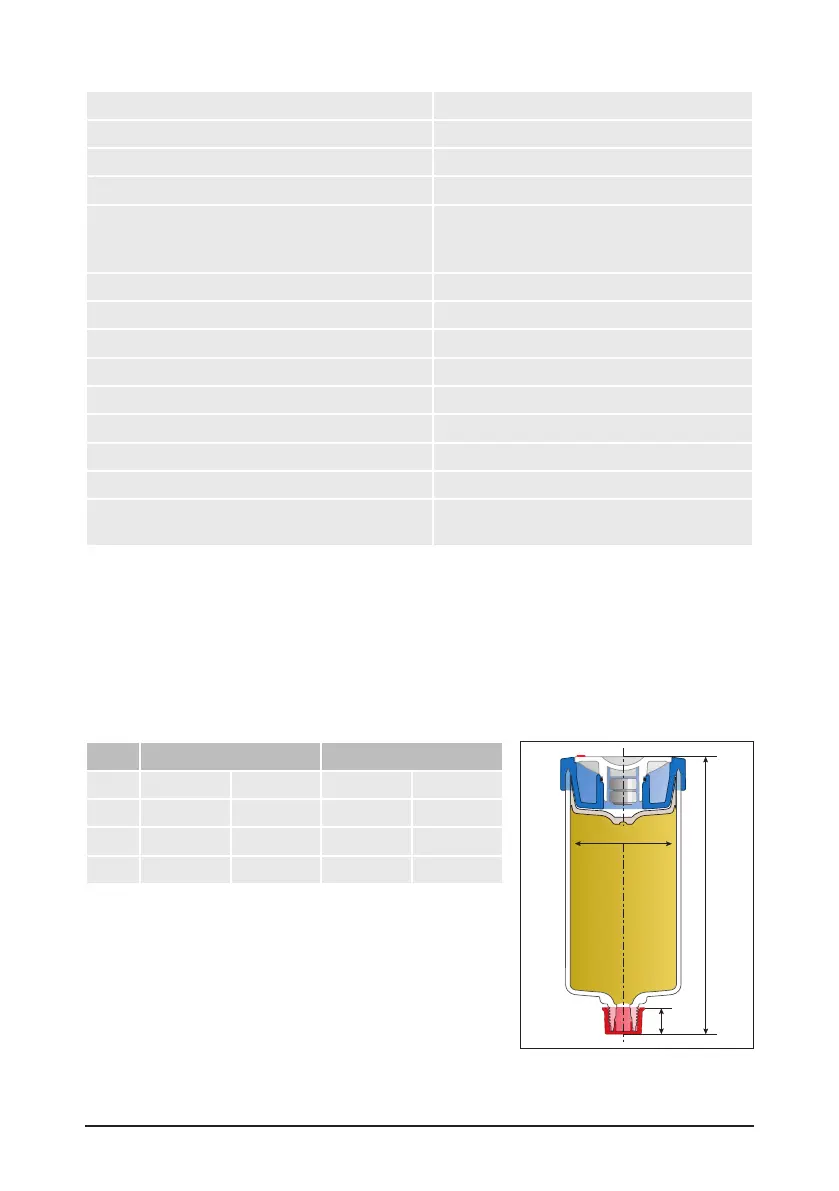

1. Technical data
Grease capacity LAGD 60 60 ml, (2,03 fl.oz US)
Grease capacity LAGD 125 125 ml, (4,25 fl.oz US)
Nominal emptying time adjustable; 1-12 months
Ambient temperature range LAGD 60/125 -20 °C to 60 °C (-5 °F to 140 °F)
Intrinsically Safe approval II 1 G Ex ia IIC T6 Ga
II 1 D Ex ia IIIC T
200
85°C Da
I M1 Ex ia I Ma
Protection Class IP 68
Maximum operating pressure 5 bar (75 psi)*
Drive source pressurised inert gas
Connection thread R 1/4
Recommended storage temperature +20 °C (+70 °F)
Storage life of lubricator 2 years **
Weight LAGD 60 approx. 130 g (4,3 oz) (grease included)
Weight LAGD 125 approx. 185 g (6,9 oz) (grease included)
Designation LAGD 125/WA2 (filled with LGWA 2)
LAGD “Capacity”/”lubricant”
* The maximum internal pressure of a full lubricator applied to a fully blocked
application.
** Storage life lasts for 2 years from the production date printed on the side of the
lubricator. The lubricator may be used for the maximum 12 months after 2 years
of storage.
Empty S24 units are for oil only and must be used with a non-return valve.
LAGD 125 LAGD 60
mm inch mm inch
A 121 4.764 81 3.189
øB 50 1.968 50 1.968
C 11 0.433 11 0.433
A
øB
C
