7
SKF THAP 030E 150E 300E 400E

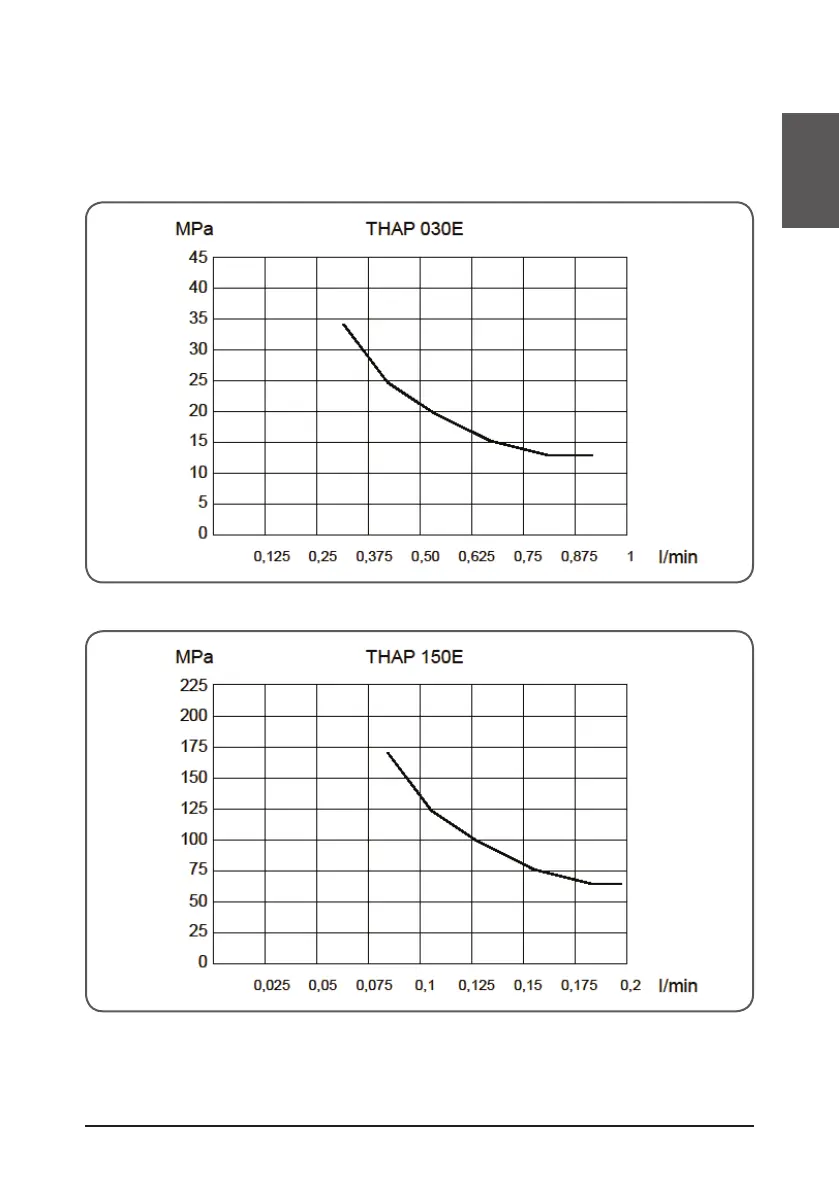

3.3 Performance charts
The charts below shows the relationship between outlet oil pressure (MPa) and oil flow
(l/min). The oil outlet pressure is shown on the vertical axis. The oil flow is shown on
the horizontal axis. The charts show the performance of the THAP...E, when operated with
7 bar (100 psi) of air pressure.
