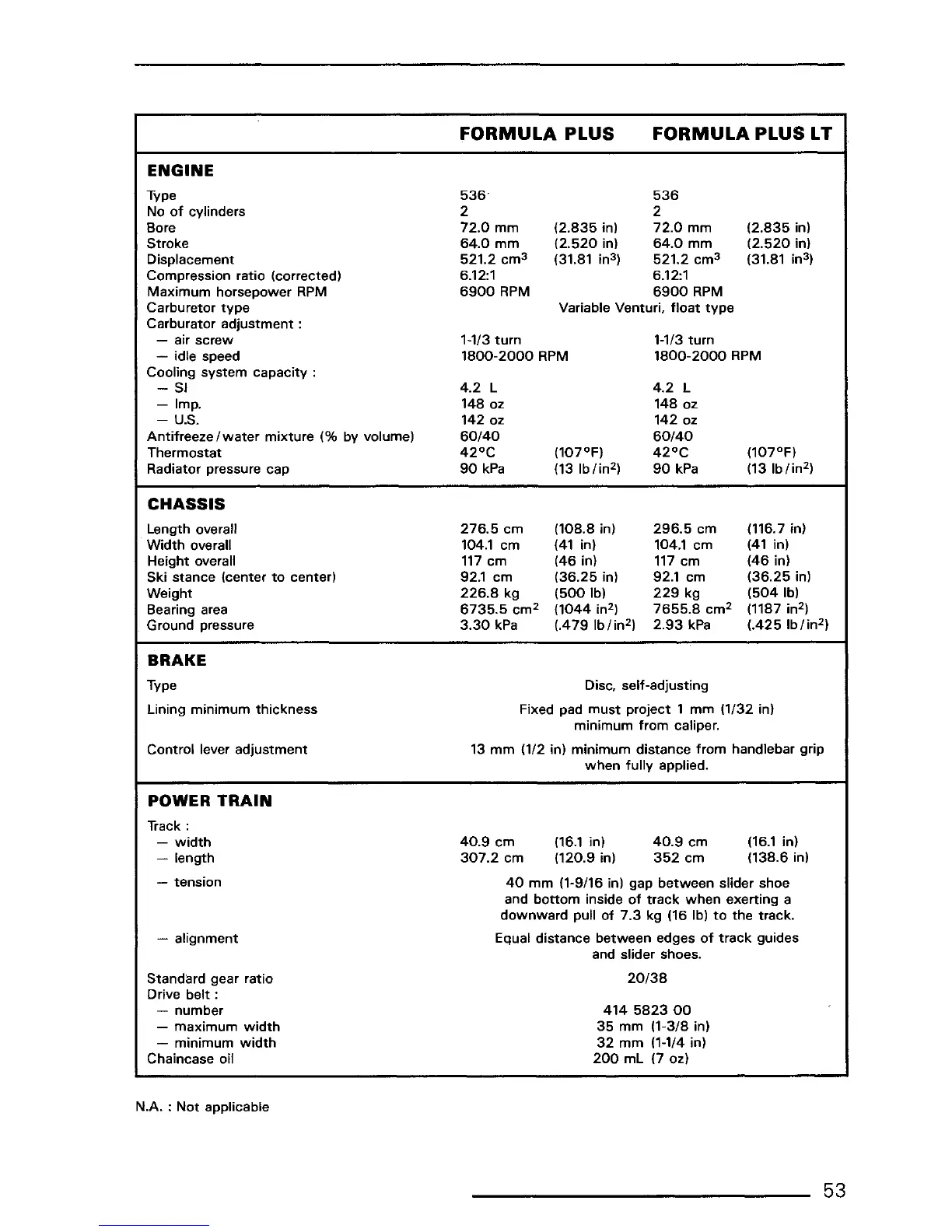

Ski-Doo Formula MACH 1 User Manual

FORMULA PLUS FORMULA PLUS L T
ENGINE
Type
536•
536
No of cylinders 2 2
Bore
72.0 mm (2.835 in) 72.0 mm (2.835 in)
Stroke 64.0 mm
(2.520 in)
64.0 mm
(2.520 in)
Displacement
521.2 cm3 (31.81 in3) 521.2 cm3
(31.81 in
3
)
Compression ratio (corrected)
6.12:1 6.12:1
Maximum horsepower RPM 6900 RPM 6900 RPM
Carburetor
type Variable Venturi, float type
Carburator adjustment :
-air screw 1-1/3 turn 1-1/3 turn
-idle speed
1800-2000 RPM 1800-2000 RPM
Cooling system
capacity :
-
Sl 4.2 L 4.2 L
-Imp. 148 oz 148 oz
-u.s. 142 oz 142 oz
Antifreeze/water mixture (% by volume) 60/40
60/40
Thermostat 42°C
(107°F)
42°C
(107°F)
Radiator pressure cap
90 kPa
(13 lb/in2)
90 kPa
(13 lb/in2)
CHASSIS
Length overall 276.5 em
(108.8 in)
296.5 em
(116.7 in)
Width overall
104.1 em (41 in) 104.1 em
(41 in)
Height overall
117 em
(46 in)
117 em
(46 in)
Ski stance (center
to center)
92.1 em
(36.25 in) 92.1 em
(36.25 in)
Weight 226.8 kg
(500 lb)
229 kg
(5041b)
Bearing area
6735.5 cm2
(1044 in2)
7655.8 cm2
(1187 in2)
Ground pressure
3.30 kPa
(.4
79 lb Jin2) 2.93 kPa
(.425 lb/in2)
BRAKE
Type
Disc, self-adjusting
Lining
minimum thickness Fixed pad must project 1 mm (1/32 in)
minimum from caliper.
Control lever
adjustment
13 mm (1/2 in) minimum distance from handlebar grip
when fully applied.
POWER TRAIN
Track:
-width 40.9 em
(16.1 in)
40.9 em
(16.1 in)
-length 307.2 em
(120.9 in)
352 em
(138.6 in)
-tension
40 mm (1-9/16 in) gap between slider shoe
and
bottom inside of track when exerting a
downward pull of 7.3 kg (16 lb) to the track.
-alignment Equal distance between edges of track guides
and slider shoes.
Standard gear ratio
20/38
Drive belt:
-number 414 5823 00
- maximum width
35 mm (1-3/8 in)
-
minimum width
32 mm (1-1/4 in)
Chaincase oil
200 ml (7 oz)
N.A. :
Not applicable
53
