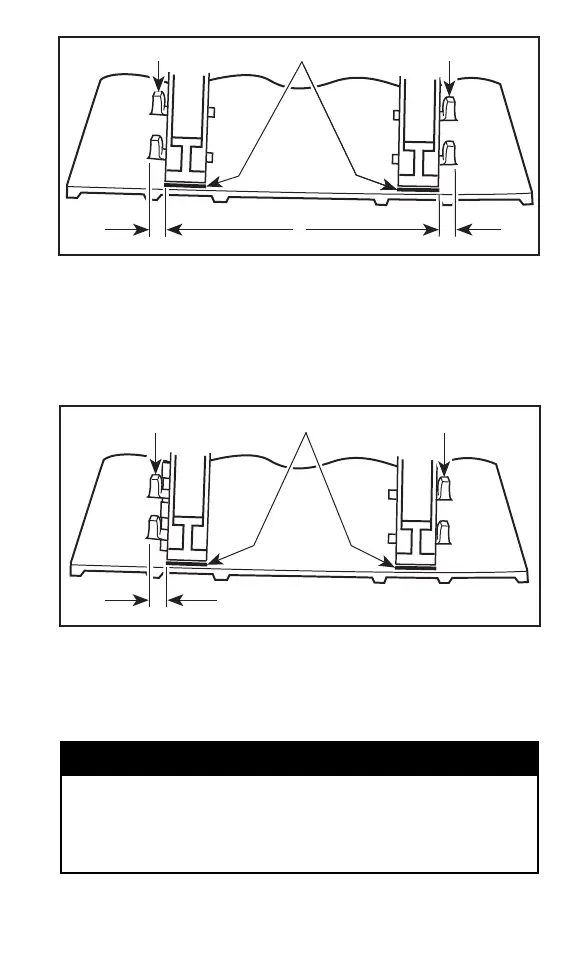

A31F01A
1
2
3
1
TYPICAL
1. Guides
2. Slider shoes
3. Equal distance
To correct, stop the engine: Loosen the lock nuts and tighten the
adjustment screw on side where the slider shoe is the farthest from
the track guides.
A31F02A
1
2
3
1
TYPICAL
1. Guides
2. Slides shoes
3. Tighten on this side
Tighten lock nuts and rear idler wheel retaining screws.
WARNING
If lock nuts or retaining screws are not tightened properly, the
adjusting screws could loosen causing the track to becomes
extremely loose and, under some operating conditions, allow
the idler wheels to climb over the track lugs forcing the track
against the tunnel causing the track to “lock”.
__________________________
83
