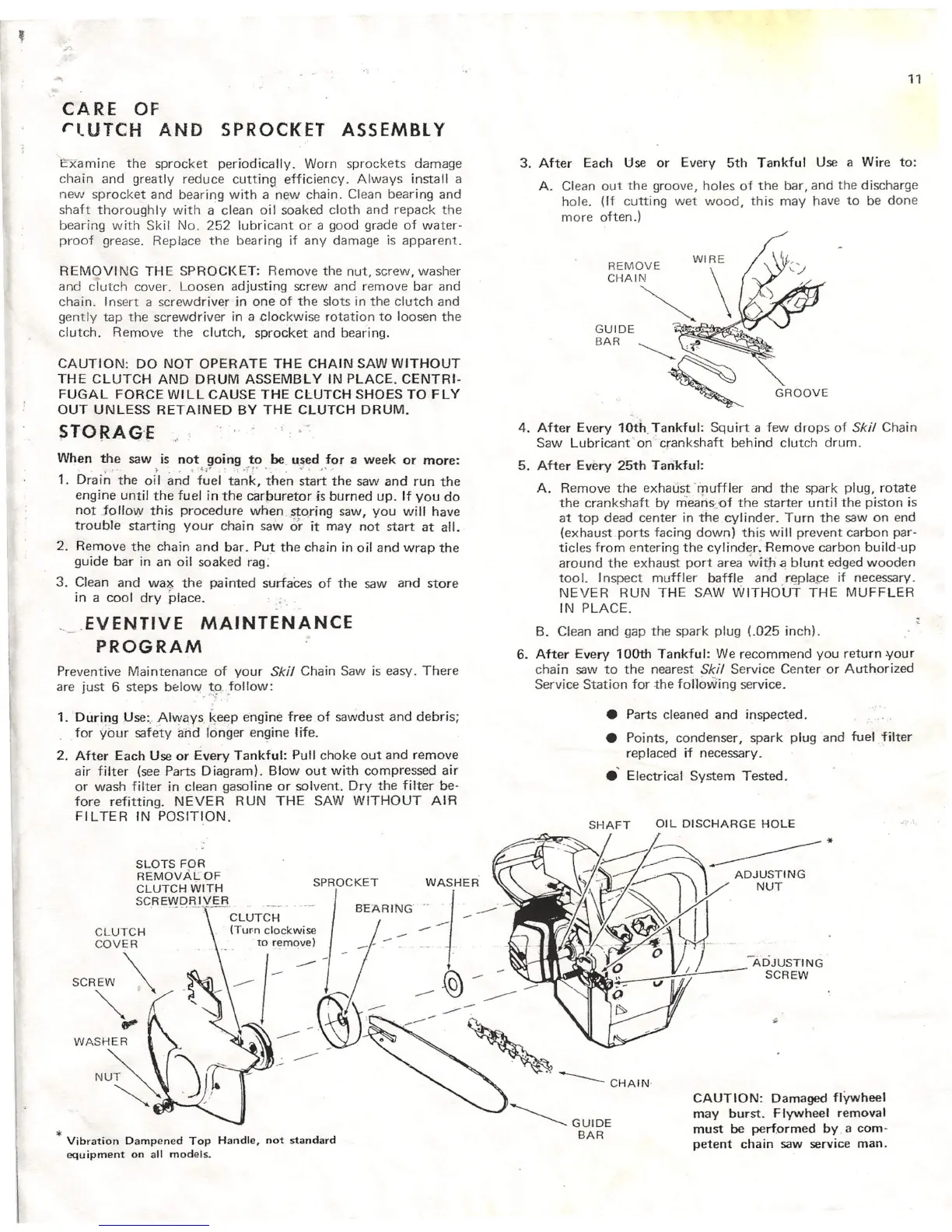

CARE OF
rlUTCH AND SPROCKET ASSEMBLY
Examine the sprocket periodically. Worn sprockets damage
chain and greatly reduce cutting efficiency. Always install a
new sprocket and bearing with a new chain. Clean bearing and
shaft thoroughly with a clean oil soaked cloth and repack the
bearing with Skil No. 252 lubricant or a good grade of water-
proof grease. Replace the bearing if any damage is apparent.
REMOVING THE SPROCKET: Remove the nut, screw, washer
and clutch cover. Loosen adjusting screw and remove bar and
chain. Insert a screwdriver in one of the slots in the clutch and
gently tap the screwdriver in a clockwise rotation to loosen the
clutch. Remove the clutch, sprocket and bearing.
CAUTION: DO NOT OPERATE THE CHAIN SAW WITHOUT
THE CLUTCH AND DRUM ASSEMBLY IN PLACE. CENTRI-
FUGAL FORCE WILL CAUSE THE CLUTCH SHOES TO FLY
OUT UNLESS RETAINED BY THE CLUTCH DRUM.
:
.
"
When the saw is not going to be. used for a week or more:
1. Drai~"the
0{1
a~d' ;~'el· t~~f ~hen ;~a~ ~he saw and run the
engine until the fuel in the carburetor is burned up. If you do
not .follow this procedure when storing saw, you will have
trouble starting your chain saw or it may not start at all.
2. Remove the chain and bar. Put the chain in oil and wrap the
guide bar in an oil soaked rag:
3. Clean and wax the painted surfaces of the saw and store
in a cool dry place. :, '..
.EVENTIVE MAINTENANCE
PROGRAM
.
'
Preventive Maintenance of your
Ski!
Chain Saw is easy. There
are just
6
steps below to. follow:
•. r"i •
1. Durlnq Use:..Always keep engine free of sawdust and debris;
for your safety
a·0d
16nger enqine life.
2. After Each Use or Every Tankful: Pull choke out and remove
air filter (see Parts Diagram). Blowout with compressed air
or wash filter in clean gasoline or solvent. Dry the filter be-
fore refitting. NEVER RUN THE SAW WITHOUT AIR
FILTER IN POSITION.
SLOTS FOR
REMOVALOF
CLUTCH WITH
SCRE\lYD.llIVER.
CLUTCH
(Turn clockwise
.to remove)
SPROCKET WASHER
BEARING' .- __
j
--
.
•• --6;v ~~-
.~ »>:
\SJ)
e
~, . »>
r---.:.II"-"'-
CLUTCH
COVER
SCR~ \
~
*
Vibration Dampened Top Handle, not standard
equipment on all models.
11
3. After Each Use or Every 5th Tankful Use a Wire to:
A. Clean out the groove, holes of the bar, and the discharge
hole. (If cutting wet wood, this may have to be done
more often.)
4. After Every
10th
Tankful: Squirt a few drops of
Skit
Chain
Saw
Lubricantontcrankshaft
behind clutch drum.
5. After Every 25th Tankful:
A. Remove the exhaustrnuff'ler and the spark plug, rotate
the crankshaft by means-of the starter until the piston is
at top dead center in the cylinder. Turn the saw on end
(exhaust ports facing down) this will prevent carbon par-
ticles from entering the cvlinder.Bernove carbon build-up
around the exhaust port area
wltp
a blunt edged wooden
tool. Inspect muffler baffle and replace if necessary,
NEVER RUN THE SAW WITHOUT THE MUFFLER
IN PLACE .
B. Clean and gap the spark plug (.025 inch) .
6,
After Every 100th Tankful: We recommend you return your
chain saw to the nearest
Ski!
Service Center or Authorized
Service Station for the following service.
• Parts cleaned and inspected.
• Points, condenser, spark plug and fuetFilter
replaced if necessary.
.- Electrical System Tested.
SHAFT
OIL DISCHARGE HOLE
~GUIDE
BAR
CAUTION: Damaged flvwheel
may burst. Flywheel removal
must be performed by. a com-
petent chain saw service man.
