Skil 3104 - Unpacking and Contents Check; Tools Required for Assembly

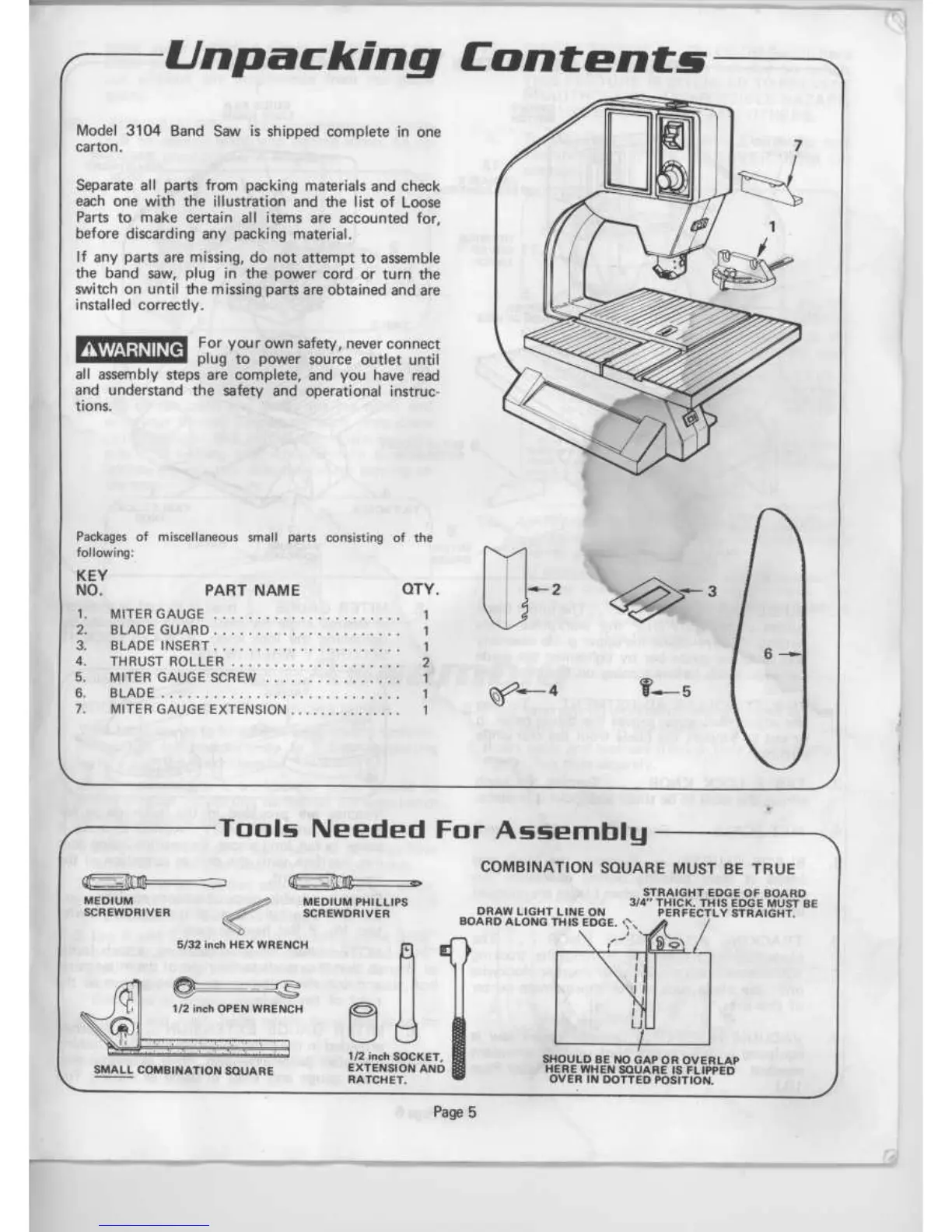

Unpacking
Contents tents
Model 3104
Band Saw is shipped complete in one
carton
.
Separate all
parts from packing materials and check
each
one with the illustration and the list of Loose
Parts
to make certain
all
items are accounted for,
before discarding any packing material .
If any
parts are missing, do not attempt to assemble
the band saw, plug in the power cord or turn
the
switch
on
until the
missing parts are obtained and are
installed correctly .
AWARNING
For your own safety,
never connect
plug to power
source outlet until
all
assembly steps are complete, and you
have read
and understand
the safety and operational
instruc-
tions
.
Packages of miscellaneous
small parts consisting of the
following :
KEY
NO .

PART NAME

QTY .
MEDIUM

_ . .-° . " -

MEDIUM PHILLIPS
SCREWDRIVER
5/32 inch HEX WRENCH
1/2 inch OPEN WRENCH
SMALL COMBINATION
SQUARE
Tools
Needed For
Assembly
SCREWDRIVER
1/2 inch
SOCKET,
EXTENSION AND
RATCHET .
Page 5
SHOULD BE NO GAP OR OVERLAP
HERE
WHEN SQUARE IS FLIPPED
OVER IN
DOTTED POSITION .
COMBINATION
SQUARE
MUST BE TRUE
STRAIGHT EDGEOF
BOARD
3/4"
THICK . THIS EDGE MUST BE
DRAW
LIGHT LINE ON

PERFECTLY STRAIGHT .
BOARD
ALONG THIS EDGE .
1 . MITER GAUGE . . . . . . . . . . . . . . . . . . . . . .
1
2 . BLADE GUARD . . . . . . . . . . . . . . . . . . . . . .
1
3 . BLADEINSERT . . . . . . . . . . . . . . . . . . . . . . 1
4 . THRUST
ROLLER
. . .
. . .
. . . .
.
. .
. . . . . . . 2
5 . MITER GAUGE SCREW . . . . . . . . . . . . . . . .
1
6 . BLADE . . . . . . . . . . . . . . . . . . . . . . . .
. . . .
1
7 . MITER GAUGE EXTENSION . . . . . . . . . . . . . . .
1
