HOUSI No
COVER
6
LOWER
BLADE
GUIDES
UNDER TABLE

2
LOWER THRUST
ROLLER
ADJUSTMENT
UNDER TABLE

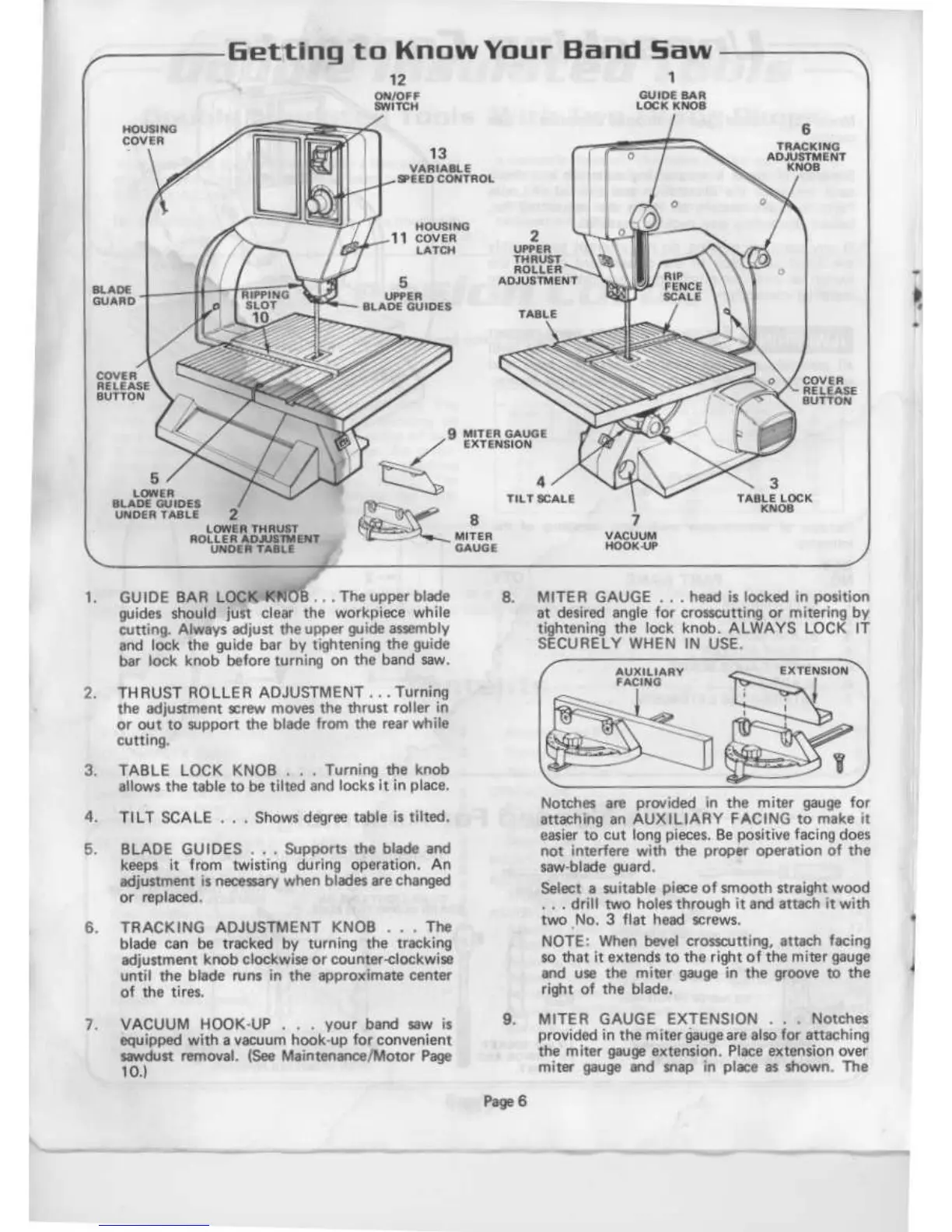

Getting
to Know Your
Band
Saw
12
ON/OFF
SWITCH
1 .

GUIDE BAR LOCK KNOB . . . The upper
blade
guides should just
clear the
workpiece
while
cutting . Always adjust the upper
guide assembly
and lock the guide
bar by tightening the guide
bar lock knob
before turning on the band
saw .
2 .

THRUST ROLLER ADJUSTMENT . . . Turning
the adjustment screw moves the thrust
roller in
or out to support the blade
from the rear while
cutting .
3 .

TABLE
LOCK
KNOB .

. Turning the knob
allows the table to be tilted and locks it
in place .
4 .

TILT
SCALE
. . . Shows degree table is tilted .
5 .

BLADE GUIDES .

. Supports the blade and
keeps it from twisting
during operation . An
adjustment is necessary when blades are
changed
or replaced .
6 . TRACKING
ADJUSTMENT KNOB . . . The
blade can be tracked by turning the tracking
adjustment knob
clockwise or counter-clockwise
until the blade runs in the approximate center
of the tires .
7 .

VACUUM HOOK-UP .

. your band saw is
equipped with a vacuum hook-up for convenient
sawdust
removal . (See Maintenance/Motor
Page
10
.)
MITER
GAUGE
EXTENSION
4
TILT SCALE
8 .

MITER GAUGE . . . head is locked in position
at desired
angle for crosscutting
or
mitering by
tightening the lock knob . ALWAYS LOCK IT
SECURELY WHEN IN USE .
9 .
Page 6
7
VACUUM
HOOK-UP
GUIDE
BAR
LOCK KNOB
Notches
are provided in the miter gauge for
attaching an AUXILIARY
FACING
to
make it
easier to cut long pieces . Be positive facing does
not interfere with the proper operation of the
saw-blade guard .
Select a suitable
piece of
smooth
straight wood
. .
. drill two holes through it and attach it with
two No . 3 flat head screws .
NOTE : When bevel crosscutting, attach
facing
so that it extends to
the right
of
the miter gauge
and use the miter gauge
in
the groove to
the
right
of
the blade .
MITER GAUGE EXTENSION . . Notches
provided in the miter gauge are also for attaching
the miter gauge extension . Place extension over
miter gauge and snap in place as shown
. The
