DANGER
If power cord is worn, cut or damaged
in any way, have it replaced immediately
to avoid shock or re hazard.

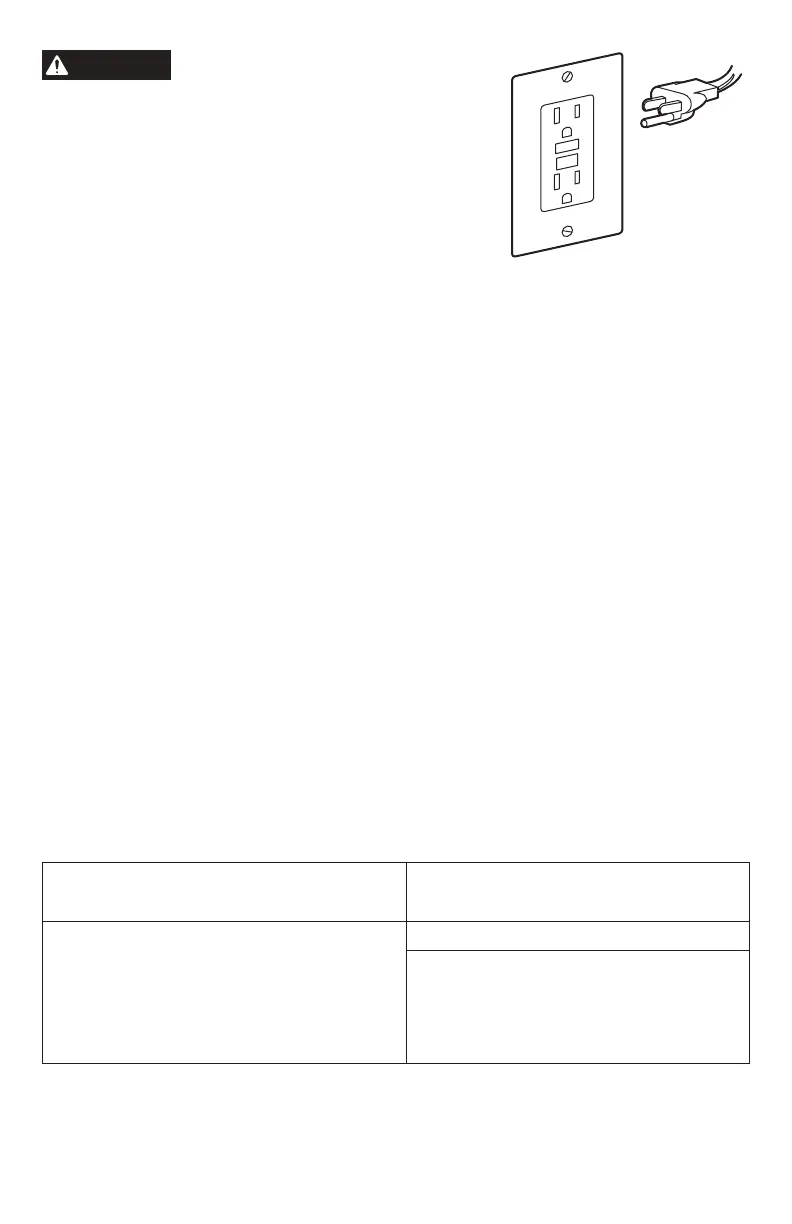

Your unit is for use on 120 volts and is equipped with a
3-conductor cord and grounding type plug, approved by
Underwriters Laboratories and the Canadian Standards
Association. The ground conductor has a green jacket
and is attached to the tool housing at one end and to the
ground prong in the attachment plug at the other end.
If the outlet you are planning to use for this power tool is
of the two-prong type, DO NOT REMOVE OR ALTER THE
GROUNDING PRONG IN ANY MANNER. Have a qualied
electrician replace the TWO-prong outlet with a properly grounded THREE-prong outlet.
Improper connection of the equipment-grounding conductor can result in a risk of electric shock.
The conductor with insulation having an outer surface that is green with or without yellow stripes
is the equipment grounding conductor. If repair or replacement of the electric cord or plug is
necessary, do not connect the equipment grounding conductor to a live terminal.
Check with a qualied electrician or service personnel if the grounding instructions are not
completely understood, or if in doubt as to whether the tool is properly grounded.
Extension Cords
Always use proper extension cord. The use of any extension cord will cause some loss of
power. To keep this to a minimum and to prevent overheating and motor burn-out, use the
table below to determine the minimum wire size (A.W.G.) extension cord. Use only 3-wire
extension cords which have 3-prong grounding type plugs and 3-pole receptacles which
accept the tool’s plug. Make sure your extension cord is in good condition.
Use only extension cords that are intended for outdoor use. These extension cords are
identied by a marking “Acceptable for use with outdoor appliances, store indoors while not in
use.” Use only extension cords having an electrical rating equal to or greater than the rating
of the product. Do not use damaged extension cords. Examine the extension cord before
using, and replace it if it is damaged. Do not abuse extension cords, and do not yank on any
cord to disconnect it. Keep the cord away from heat and sharp edges. Always disconnect the
extension cord from the receptacle before disconnecting the product from the extension cord.
Replace damaged cords immediately. Use of damaged cords can shock, burn or electrocute.
If an extension cord is necessary, a cord with adequate size conductors should be used to
prevent excessive voltage drop, loss of power or overheating. The table shows the correct
size to use, depending on cord length and nameplate amperage rating of tool. If in doubt, use
the next heavier gauge. Always use U.L. and CSA listed extension cords.
RECOMMENDED SIZES OF EXTENSION CORDS
Tool’s Ampere Rating
120 Volt A.C. Tools Cord Length in Feet
Cord Size in A.W.G.
25 50 100 150
0-6 18 16 16 14
6-10 18 16 14 12
10-12 16 16 14 12
12-16 14 12 – –
NOTE:
The smaller the gauge number, the heavier the cord.
SAVE THESE INSTRUCTIONS!
