8/22
For easier access to the terminal box, we recommend
dismantling parts with forged pieces (Fig. 5).

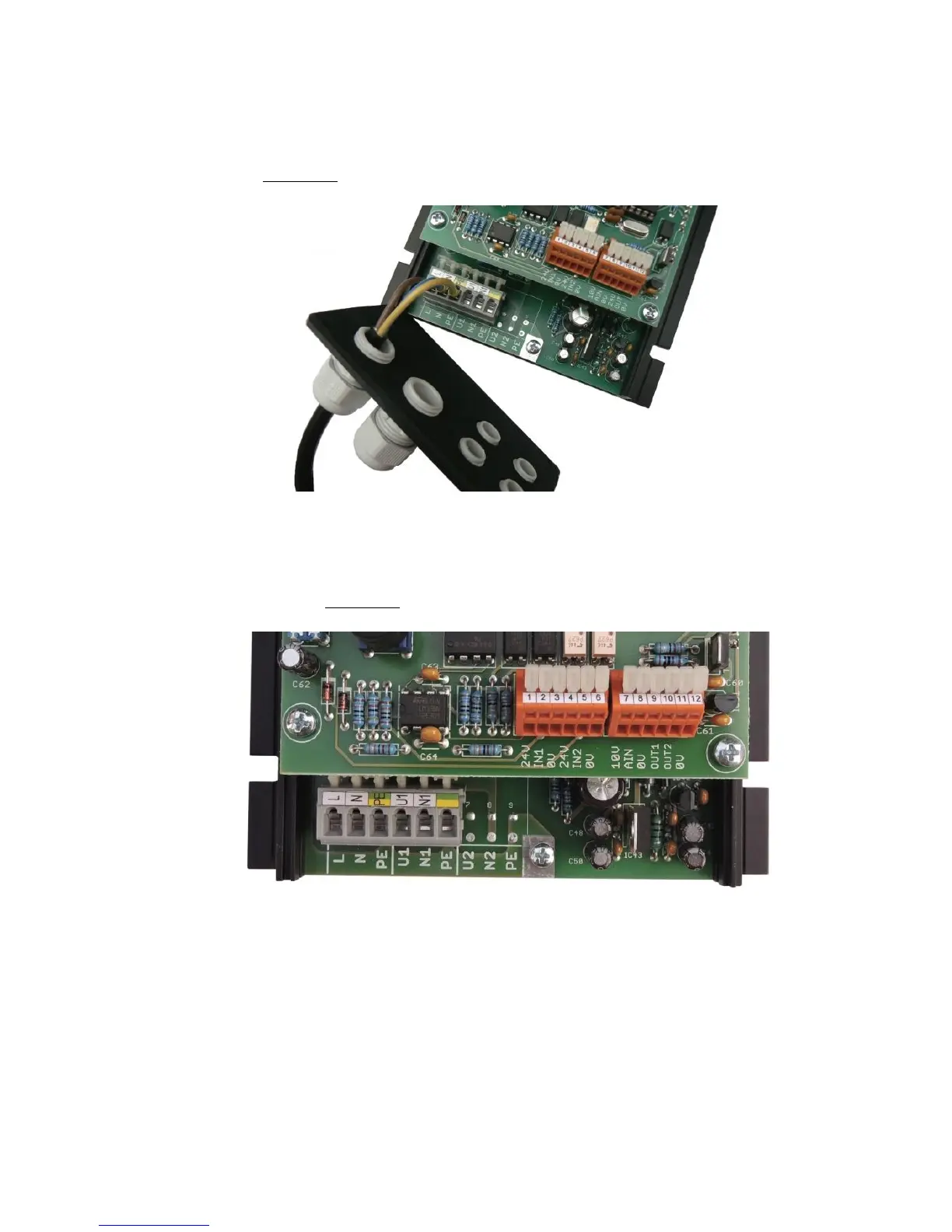

Fig. 5 – dismantling parts with outlets
The connecting terminals are under this cap (Fig. 6).
Fig. 6 – connecting terminals
3.3. Connecting the power part
The controller has an internal T8A circuit breaker,
which protects the device against short circuits, not
against overloading! Select the series protection
according to the actual value of the connected loading.
If more generators are connected to the equipment,
these controllers should be connected to various phase
conductors because of current peak.
