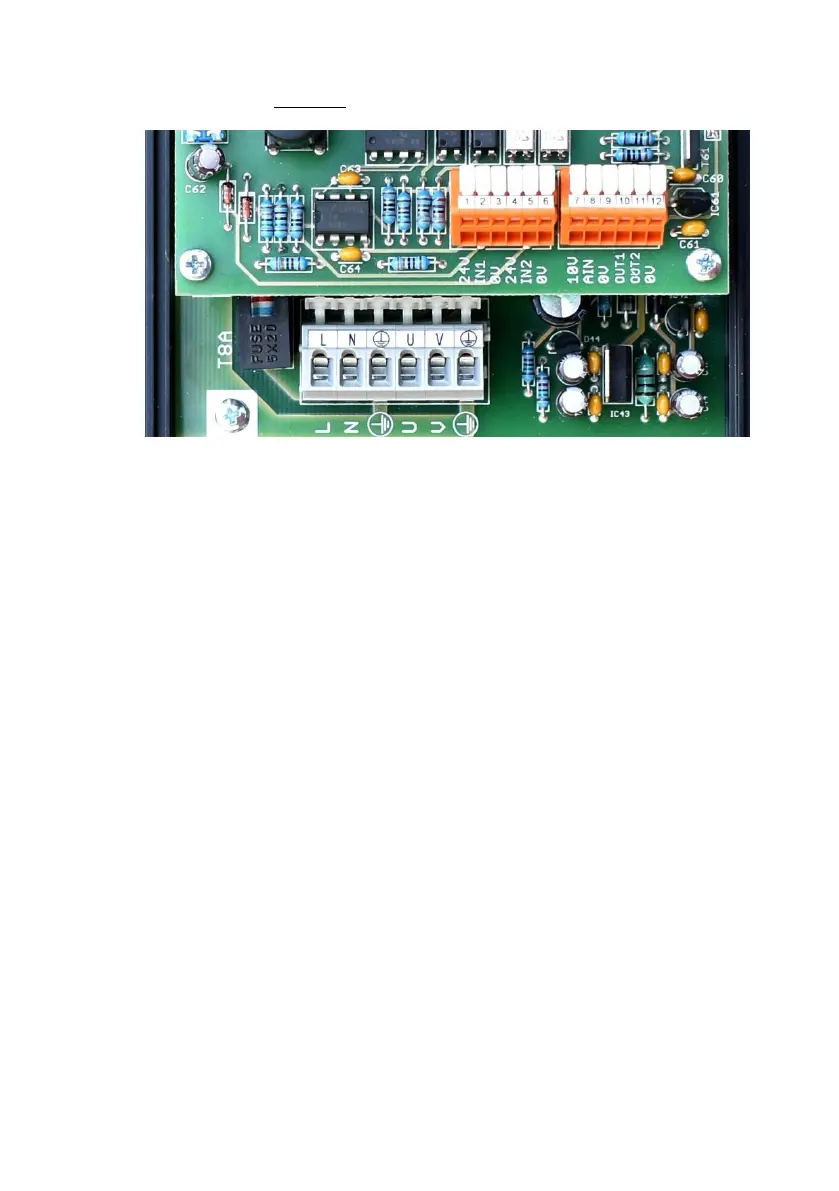

Fig. 6 – Connecting terminals
3.3. Connection of the power section
The controller is equipped with a 2P + PE terminated
lead cable. Connect the plug to a standard 230V socket
that is triggered by a circuit breaker with a maximum
rated current of 16A characteristic B. The fork acts as
a disconnect device and must be placed in a convenient,
easily accessible position near the controller.
If the controller is incorporated into the wiring of
a superior unit such as a machine, the connection is
made by a flexible cable of 3x 1.5 mm
2
which is
triggered by a circuit breaker with a maximum rated
current of 16A characteristic B. This installation must
be equipped with a disconnecting device that
disconnects all conducting currents.
Connect the feeder coil to the PE, U, V terminals
(Fig. 8). We recommend using a shielded cable. If more
controllers are connected to the equipment, it is
necessary to connect them to different phase wires or
ensure their sequential switching on, because of the
current peak.
Termination of the power cables is illustrated in
Fig. 7. Select the wire section areas as follows:
Wire cross section area 0.75 – 1.5 mm
2
Cable diameter 8 - 10 mm
