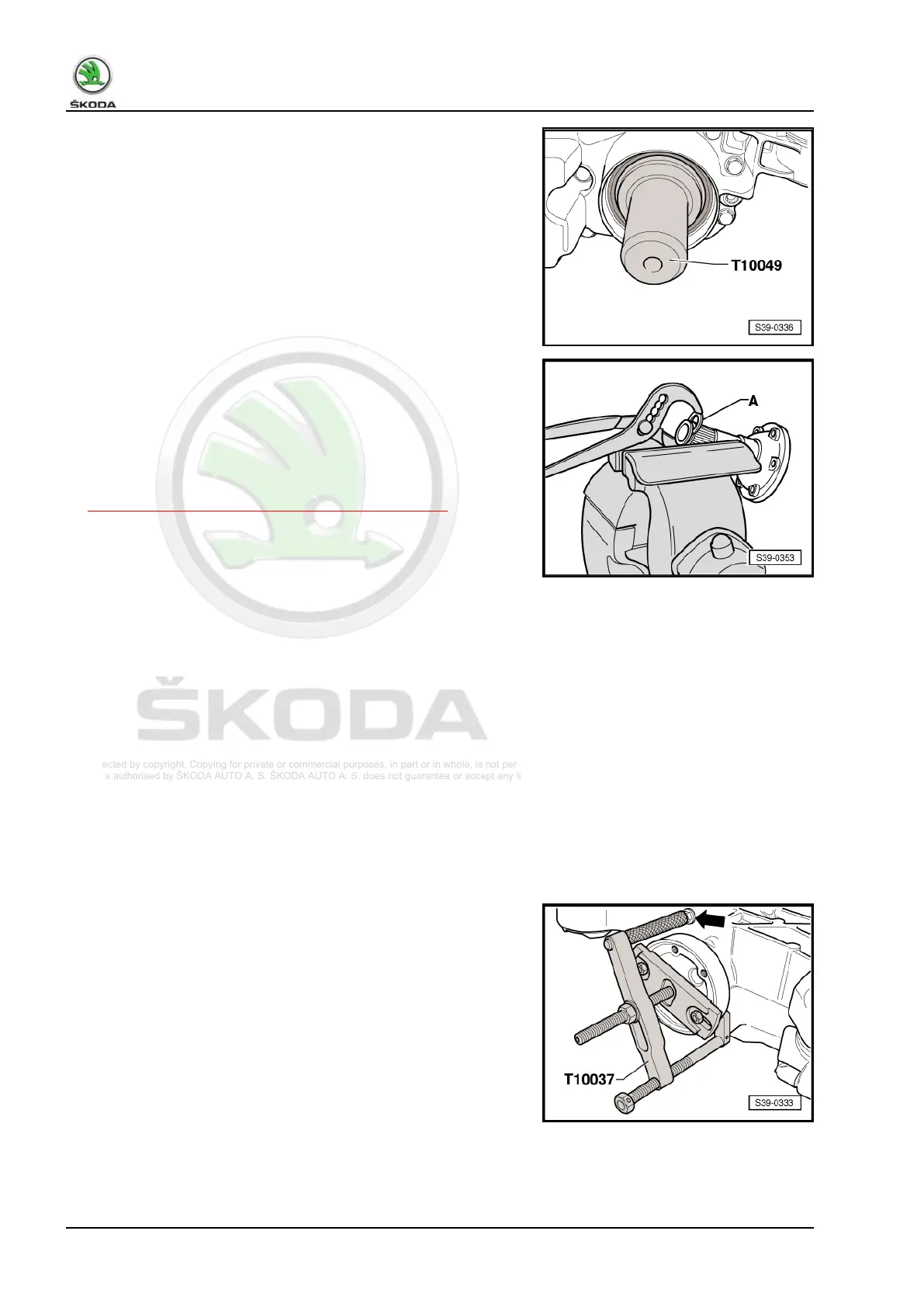

– Lightly oil new gasket ring at outside diameter and drive in with
pressure plate - T10049- up to the stop, do not twist the gasket
ring.
– Fill half the space between the sealing lip and dust lip with
sealing grease - G 052 128 A1- .
– Clamp the flange shaft in a vice with protective jaws.
– Push out the old circlip from the flange shaft groove with the
new circlip -A-.
– Drive in the flange shaft with a rubber hammer.
– Install drive shaft ⇒ Chassis; Rep. gr. 42 .
– Checking the oil level in the rear final drive
⇒ “5.2 Check the oil level in the final drive.”, page 90 .
4.2 Replacing right sealing ring
Special tools and workshop equipment required
♦ Ejection lever - MP3-418 (VW 681)-
♦ Extractor - T10037-
♦ Pressure spindle - T10049-
♦ Catch pan
♦ Sealing grease - G 052 128 A1-
– Remove drive shaft ⇒ Chassis; Rep. gr. 42
– Place a catch pan under the rear final drive.
– Manually screw the plate of the extractor - T10037- with two
screws M8 (30 mm long) onto the flange shaft.
• The shoulders for larger flange diameters point to the outside.
– Fit the nut of the knurled screw -arrow- of the extractor -
T10037- in such a way that the start of the thread is aligned
with the housing.
– Pull out the flange shaft with extractor - T10037- .
