GERMANY
Mounting the COMPIT/E and COMPIT/E+ on and removing them from the bicycle’s handlebar
22
Disassembling the on-board computer from the bicycle
The COMPIT/E and COMPIT/E+, including the on-board computer, are mounted on the bicycle’s
handlebar. To this end, you must remove the on-board computer’s clamping arms and mount the
clamping arms of the COMPIT/E or COMPIT/E+. Proceed as follows to disassemble the on-board
computer:

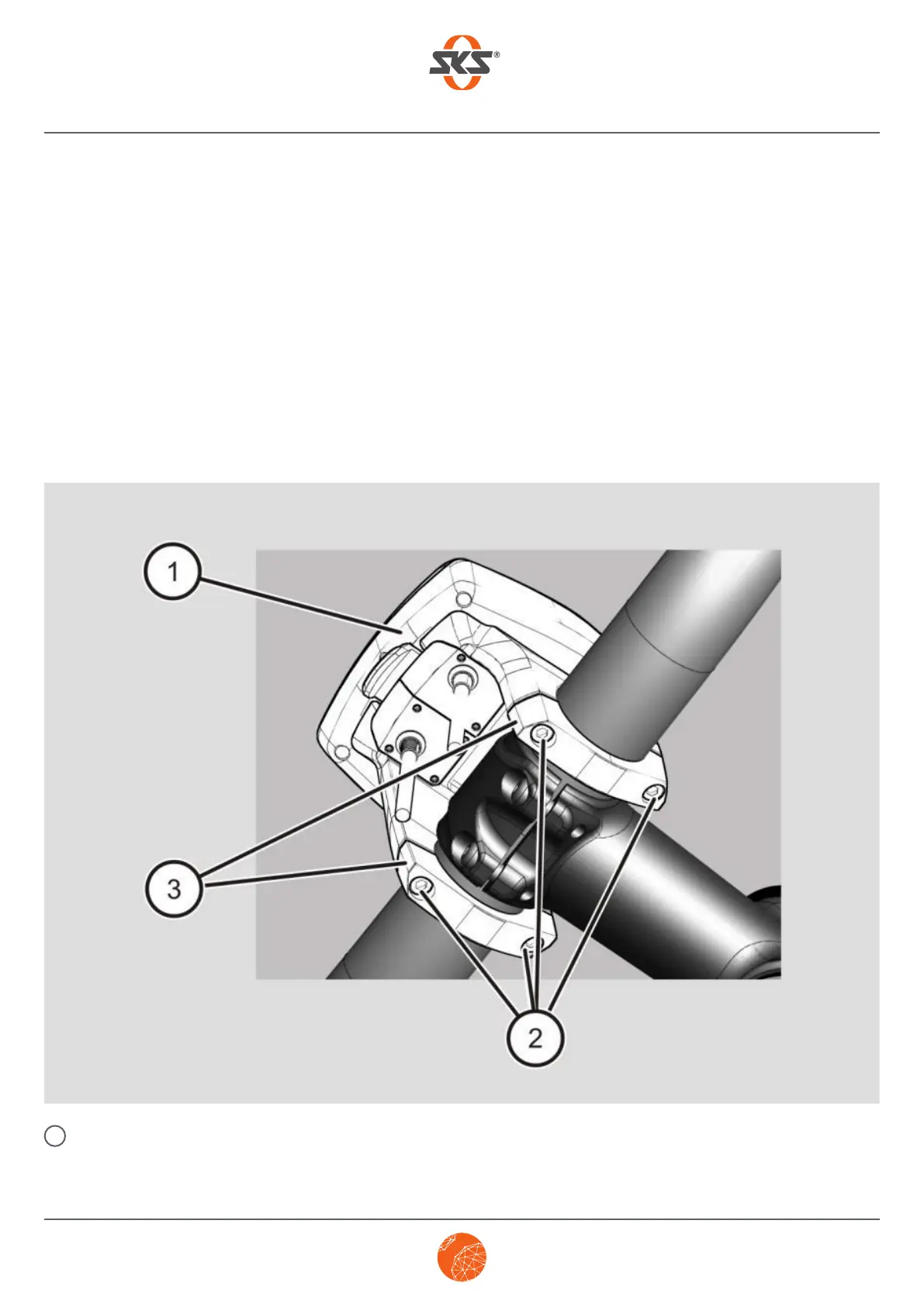

➤ Loosen the screws (2) on the clamping arms (3) of the on-board computer (1).
➤ Set the four screws (2) aside for reuse.
➤ Remove the clamping arms (3).
➤ Remove the rubber adapters from the clamping arms (3) and set them aside for reuse.
➤ Mount the COMPIT/E or COMPIT/E+ and the on-board computer (1) on the bicycle as described
on page 23 onwards.
We have provided a description below of how to mount the COMPIT/E on the vehicle and remove it, both
with and without the COM/LIGHT. The COMPIT/E+ is mounted on/removed from the bicycle in the same
way as the COMPIT/E.
i
