Mounting the COMPIT/E and COMPIT/E+ on and removing them from the bicycle’s handlebar
32
Once you have mounted the COMPIT/E on the bicycle’s handlebar, you can affix a front light on the COM/
LIGHT. Proceed as follows to do so:

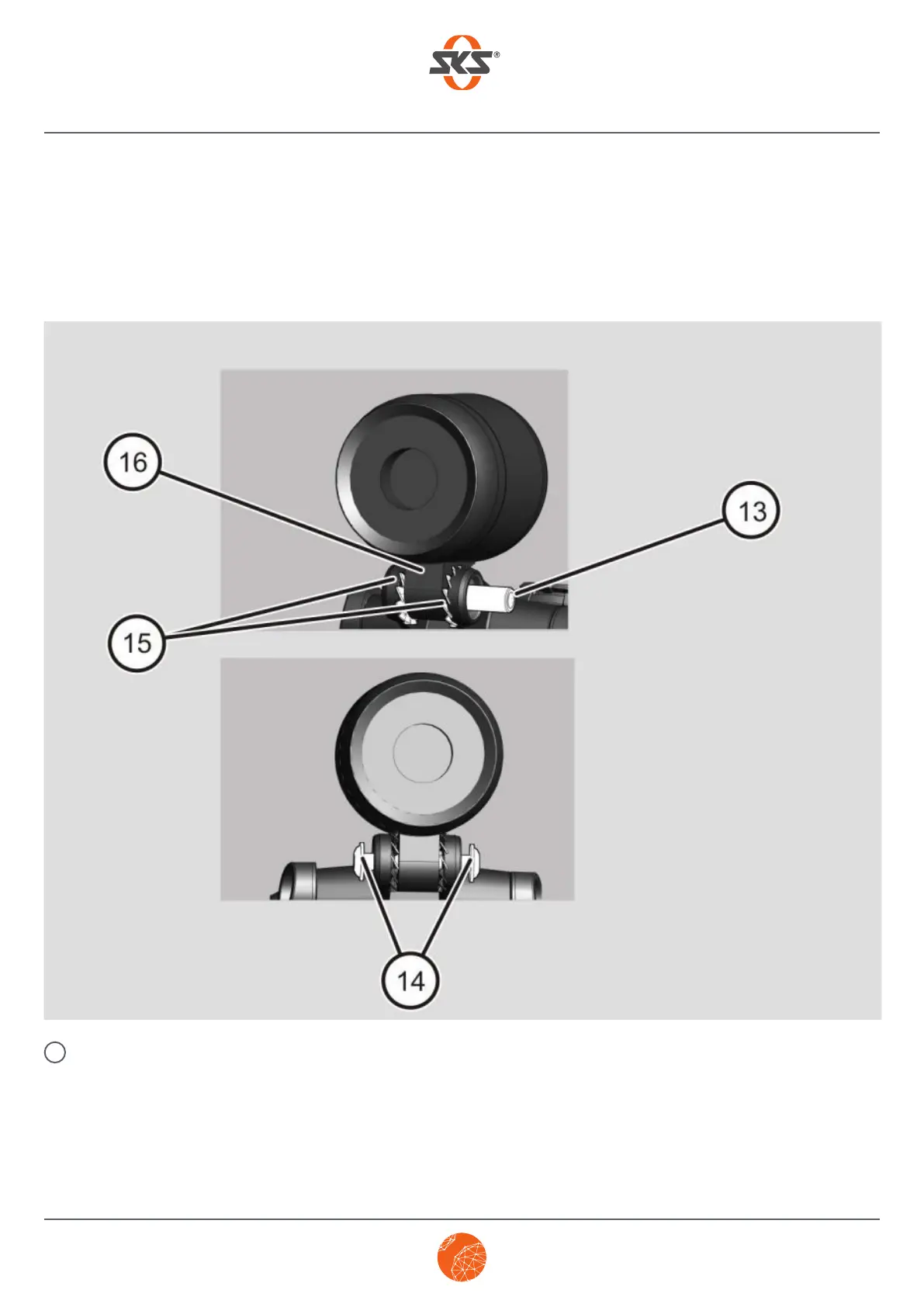

➤ Insert the base of the front light (16) into the COM/LIGHT holder along with the locking washers (15)
on each side of the lamp base and align all the holes.
➤ Insert the shaft (13) through the COM/LIGHT and the lamp base.
➤ Tighten the two screws (14) with the supplied Allen key.
You must observe the maximum width of the lamp base (12 mm) and the minimum hole
diameter (6 mm).
i
Proceed as follows to remove the COMPIT/E from the bicycle’s handlebar:
➤ Loosen the screws on the COMPIT/E.
➤ Remove the COMPIT/E components from the bicycle handlebar.
