Mounting the COMPIT on the Handlebars of the Bicycle and Removing it
29
You can mount a front light on the COM/LIGHT after you have mounted the COMPIT on the handlebars of
the bicycle. You can do so as follows:

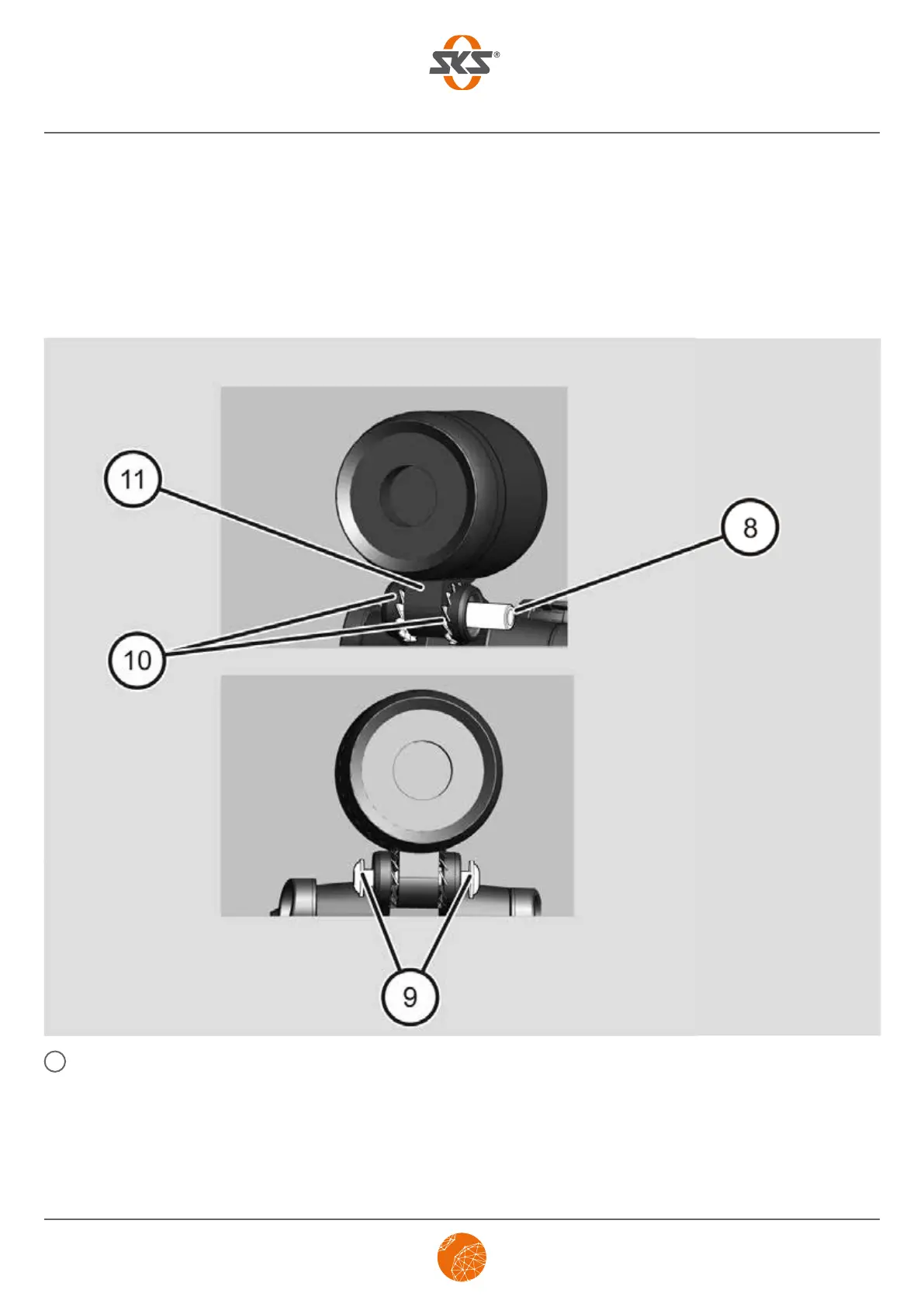

➤ Insert the base of the front light (11) in the recess in the COM/LIGHT together with the locking
washers (10) on each side of the lamp base and align all of the holes.
➤ Insert the shaft (8) through the recess in the COM/LIGHT and the lamp base.
➤ Use the enclosed Alley key to tighten both of the screws (9).
The COMPIT is removed from the handlebars of the bicycle as follows:
➤ Loosen the screws on the COMPIT.
➤ Remove the COMPIT components from the handlebars of the bicycle.
Please take the maximum width of the lamp base of 12 mm and the minimum borehole
diameter of 6 mm into account.
