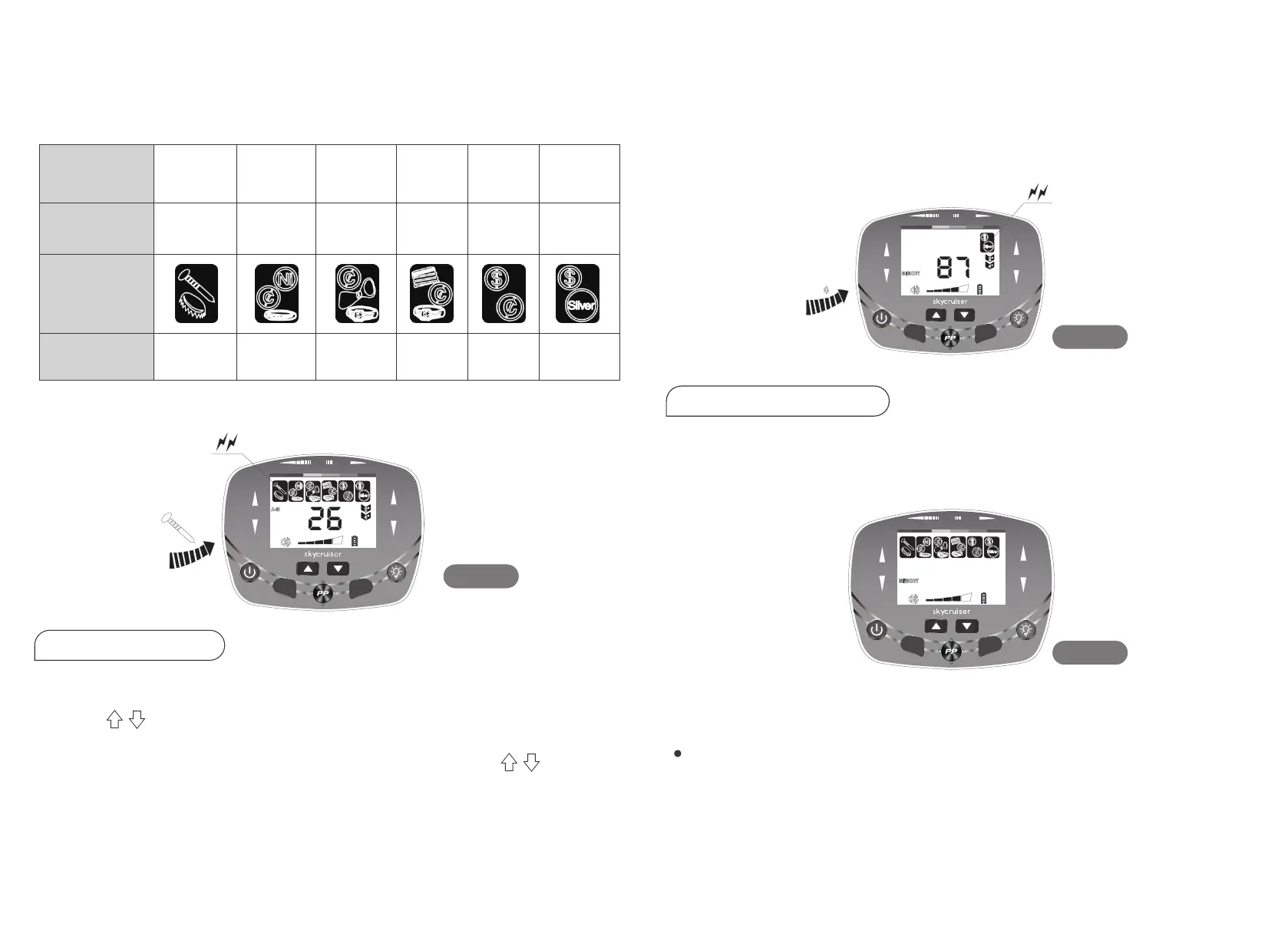

4. DISC Mode Test
5. MEMORY Mode Test
Press the MODE button again, and the DISC icon lights up.
Press ( , ) button and set the discrimination target to eliminate some
metals that do not need to be detected. For example, to eliminate three
kinds of metals such as iron, nickel and pull-tab. Press the ( , ) button to
eliminate these three target metals.
Sweep the search coil about 2.75-3.93 inches above the six metal samples
in turn.
When sweeping above the iron nail, 5￠ nickel coin and pull-tab, the
detector will not make responses, because they are eliminated.
When sweeping the other three samples, the corresponding target icons
flash, and the double digits show the corresponding number.
Take detecting the 50￠ silver coin as an example (see Fig. 10).
a) The detector sounds three different tones in turn.
b) The depth indicator indicates the second grade.
c) The target metal icon flashes respectively. The double digits display the
corresponding number as shown in the table.
Take detecting the iron nail as an example. (See Fig. 9)
Sample
Iron Nail
5￠
Nickel
Coin
Pull-tab
1￠
Zinc
Coin
25￠
Copper
Coin
50￠
Silver
Coin
High
Tone
High
Tone
Middle
Tone
Low
Tone
Middle
Tone
Low
Tone
10-40 41-50 55-70 72-75 80-83 86-88
Tone
Identification
Indicator
Double Digits
COIN
DEPTH
FERROUS
NON - FERROUS
GOLD SI LVER
MODE
40 50 60 70 80 90
SENS
MODE
a)
b)
c)
d)
Press the MODE button again, and the MEMORY icon lights up. The target ID
cursor will all light up (see Fig. 11).
a)
If you want to detect 50￠ silver coin and eliminate the other metals, you can
follow the procedure below.
Sweep the search coil about 2.75-3.93 inches above the 50￠silver coin
scan, and the target metal icon of 50￠silver coin consistently flash, while
the other metal icons are removed (See Fig. 12).
b)
e)
COIN
DEPTH
FERROUS
NON - FERROUS
GOLD S ILVER
40 50 60 70 80 90
SEN S
MODE
MODE
25
COIN
DEPTH
MODE
FERROUS
NON - FERROUS
GOLD S ILVER
40 50 60 70 80 90
SENS
MODE
To Next Page
