Section 2 - Operation Component Identification

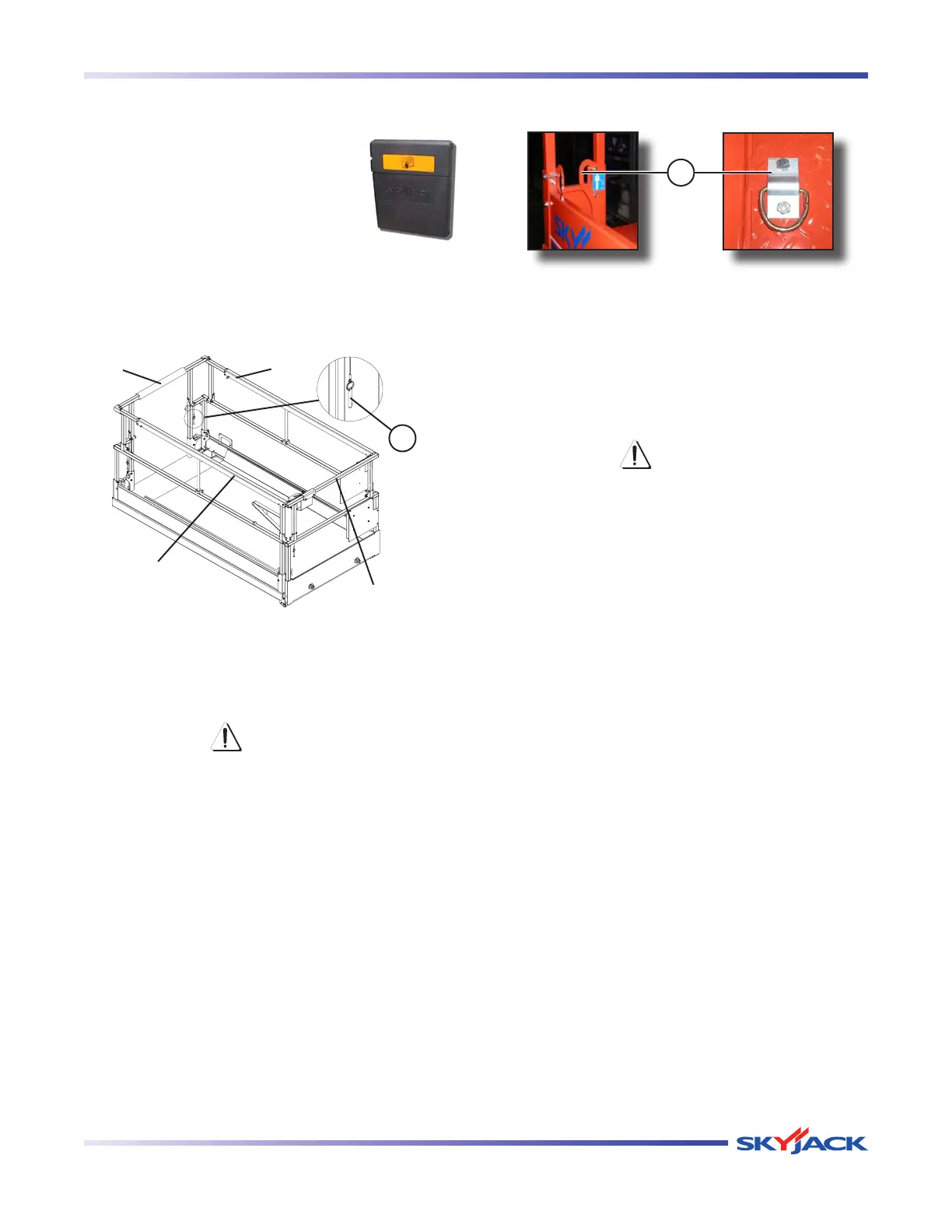

2.5-14 Manual Storage Box
This weather-resistant box is mounted on the platform
railings. It contains the operating manual,
EC declaration and other important
documents. The operating manual for
this make and model of aerial platform
must be stored in this box.
2.5-15 Folding Guardrail System
This system, when folded down, reduces the height
of the retracted aerial platform for transporting and
traveling through doorways only. Refer to Section 2.11
for guardrail folding procedure.
1
Entrance
Left
Right
Extension
Figure 2-12. Folding Guardrail System
1. Guardrail Locking Pin with Lanyard - This pin is
used to lock the guardrail in place.
WARNING
The scissor assembly must be fully
lowered before raising or lowering the
guardrails.
2.5-16 Lanyard Attachment Anchorage
1
Figure 2-13. Lanyard Attachment Anchorage
1. Lanyard Attachment Anchorage - Use this as an
attachment point for safety belt/harness tethers.
Do not attach belts/harnesses to any other point
on the platform. Do not use this point to lift,
anchor, secure or support the platform or any
other apparatus or material.
WARNING
The lanyard attachment anchorage
is used for travel restraint, within the
limits of the platform only. It is not a fall
arresting device! Use as such could result
in death or serious injury.
