SJRT Compact Series
Engine Powered
Visual & Maintenance Inspection Section 2 - Familiarization
It is the responsibility of the operator to read, completely understand and follow all instructions and warnings
contained in this operating manual and on the aerial platform.
2.3-9 Base
• Base Weldment
- Ensure there are no visible cracks in welds
or structure and there are no signs of
deformation
.
• Wheel/Tire Assembly
The aerial platform is either equipped with
air tires or foam-filled tires. Tire and/or wheel
failure could result in an aerial platform tipover.
Component damage may also result if problems
are not discovered and repaired in a timely
fashion.
WARNING
Air filled tires are not permitted on some
models. Refer to Table 4.2.
WARNING
An over-inflated tire can explode and
may cause death or serious injury.
- Check all tire treads and sidewalls for cuts,
cracks, punctures and unusual wear.
- Check each wheel for damage and cracked
welds.
- Check each lug nut for proper torque to
ensure none are loose.
- Check wheel motor assembly for loose
or missing parts and signs of visible
damage.
- Ensure wheels are aligned and true
vertically and horizontally.

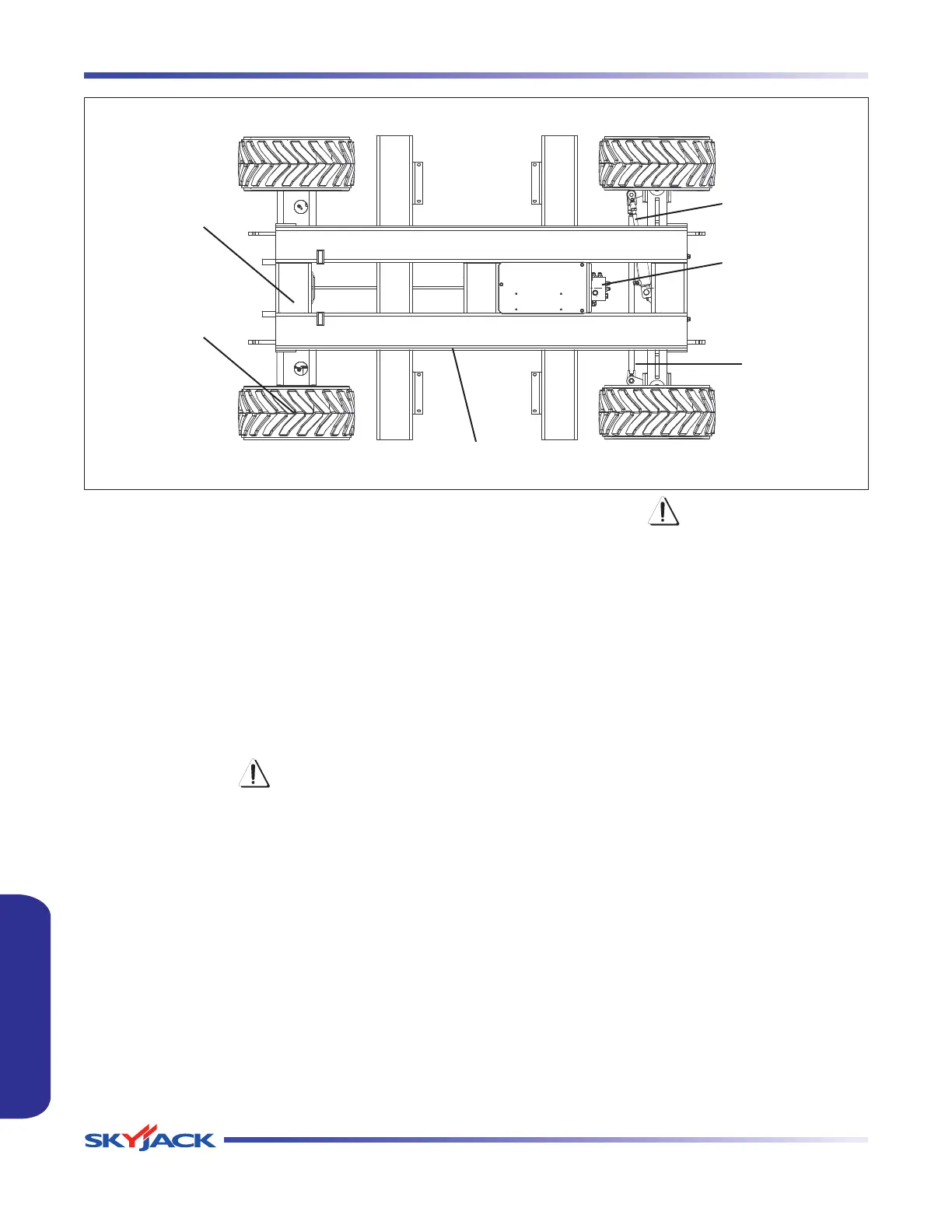

Wheel/Tire
Assembly
Steer Cylinder
Assembly
Tie Rod
Overhead View
Base
Weldment
Splitter Manifold
Emergency Lowering
Access Rod
FAMILIARIZATIONFAMILIARIZATION
