Skyjack SJ45 AJ+ - Platform Control Console

238264AAA SJ45 AJ+, SJ60 AJ+
26
Section 3 – Familiarization Control functions
FAMILIARIZATION

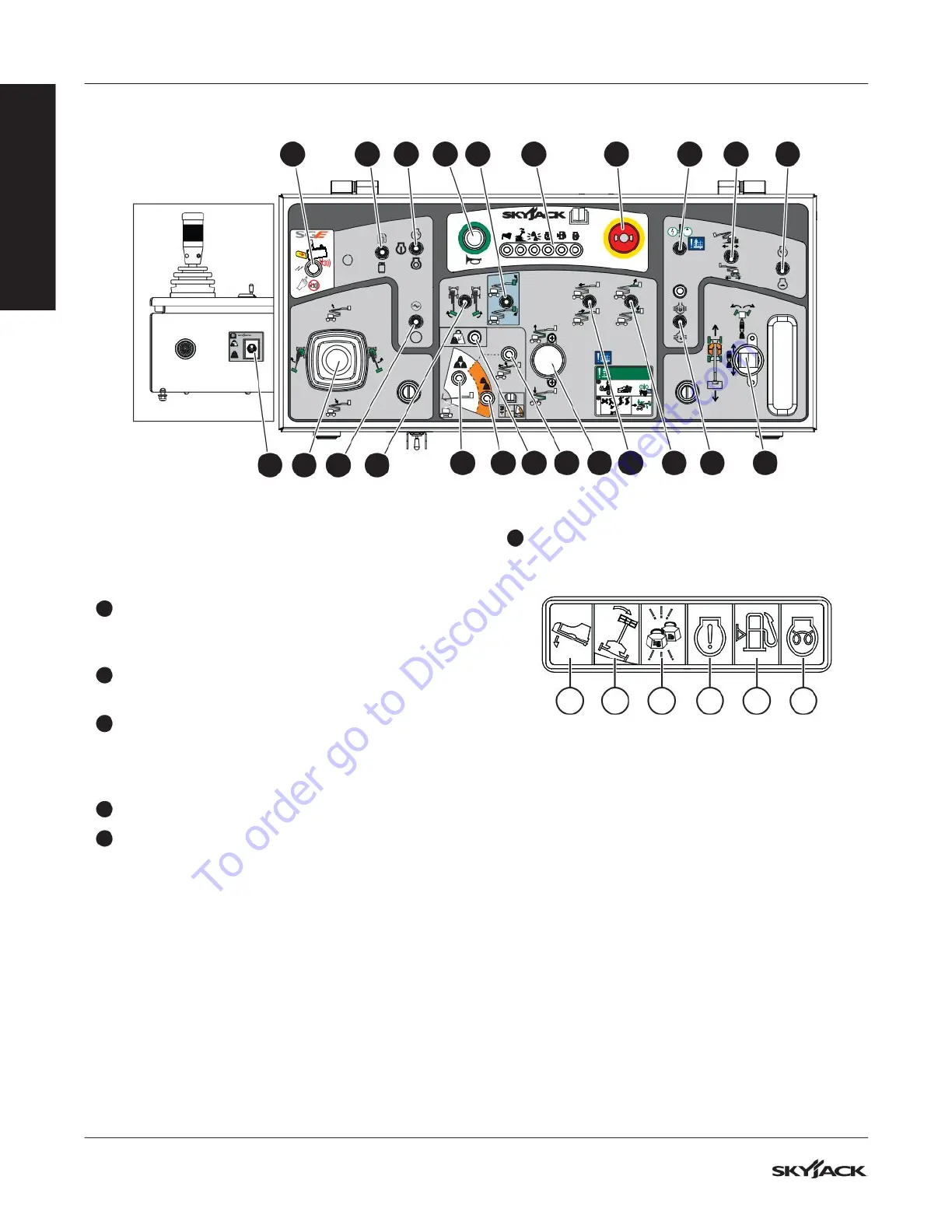

3.3-6 Platform control console
Refer to Section 3.1 for the location of the platform
control console.
1
Secondary guarding electrical (SGE) reset:
This button, when pressed, stops the SGE
audible/visual alarm.
2
Fuel (dual fuel): Use this switch to select liquid
propane gas or gasoline as the fuel type.
3
Engine start/on/off: In the start position, this
switch starts the engine. When the engine starts,
this switch goes back to the on position. In the
off position, this switch stops the engine.
4
Horn: This push-button makes a sound.
5
Platform-leveling override: This switch
overrides the automatic platform-leveling function
and controls the tilt up or tilt down function of the
platform.
6
Status indicator pilot lights: These lights show
the operation condition and errors in the control
or engine functions.
A B C D E F
a. Footswitch: This light illuminates when
the footswitch is pressed. A 7-second anti-
tiedown feature prevents the footswitch
operation when the operator presses it
for 15 seconds without the activation of a
function.
b. Chassis tilt: This light illuminates when
the MEWP chassis is at an inclination that
activates the tilt switch. At this inclination, an
alarm will make a sound at the platform. Refer
to Section 6.2 for instructions on recovery
from an inclined position.
c. Overload: This red light shows an overload
status. Refer to Section 3.4-7.
TM
TM
1
2

+

+
4 6 7 8 9 10
111213141517
212223
321 5
18 19 16
20
