Technical diagrams Section 7 – Technical Diagrams and Specifications

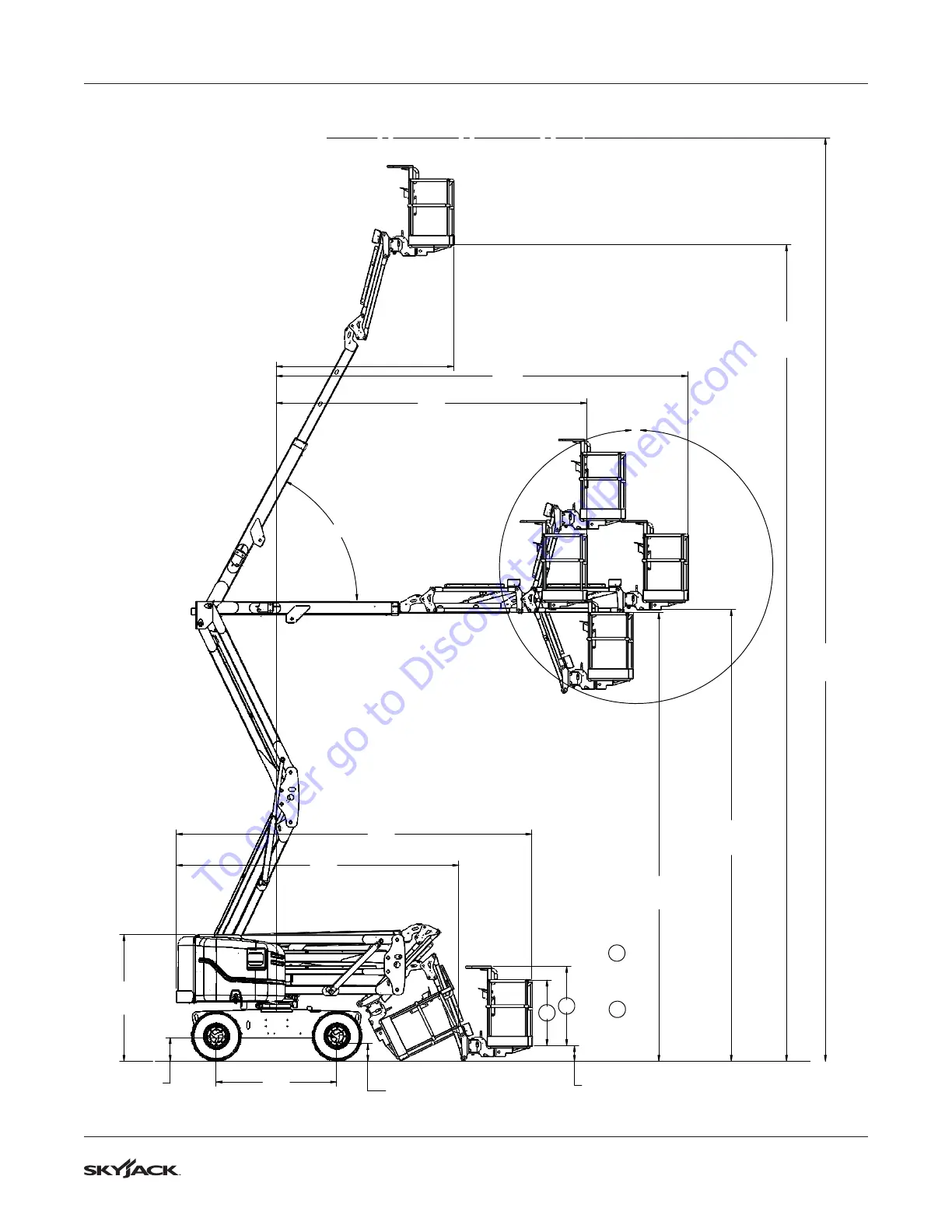

7.1-2 Dimensions - SJ45 AJ+
62°
B
A
A
2.98 m
(9 ft 10 in)
6.93 m
(22 ft 9 in)
5.23 m
(17 ft 2 in)
6 m
(19 ft 8 in)
4.75 m
(15 ft 7 in)
7.45 m
(24 ft 5-1/4 in)
7.53 m
(24 ft 8-3/4 in)
1.35 m
(4 ft 5 in)
1.11 m
(3 ft 8 in)
0.28 m
(11 in)
0.33 m
(13 in)
2.03 m
(6 ft 8 in)
A
B
0.39 m
(15-1/4 in)
2.06 m
(6 ft 9 in)
13.72 m
(45 ft)
15.54 m
(51 ft)
