Skyjack SJ63AJ - Page 26

Page 26 December 2007
SJ46AJ SJ51AJ SJ63AJ
It is the responsibility of the operator to read, completely understand and follow all
instructions and warnings contained in this operating manual and on the MEWP.
FAMILIARIZATION
Wheel/Tire
Assembly
Tie Rod
Steer Cylinder
Assembly
Oscillating
Cylinder
Assembly
Turret Rotation
Gear
Rotary
Manifold
Limit Switch
Drive Axle

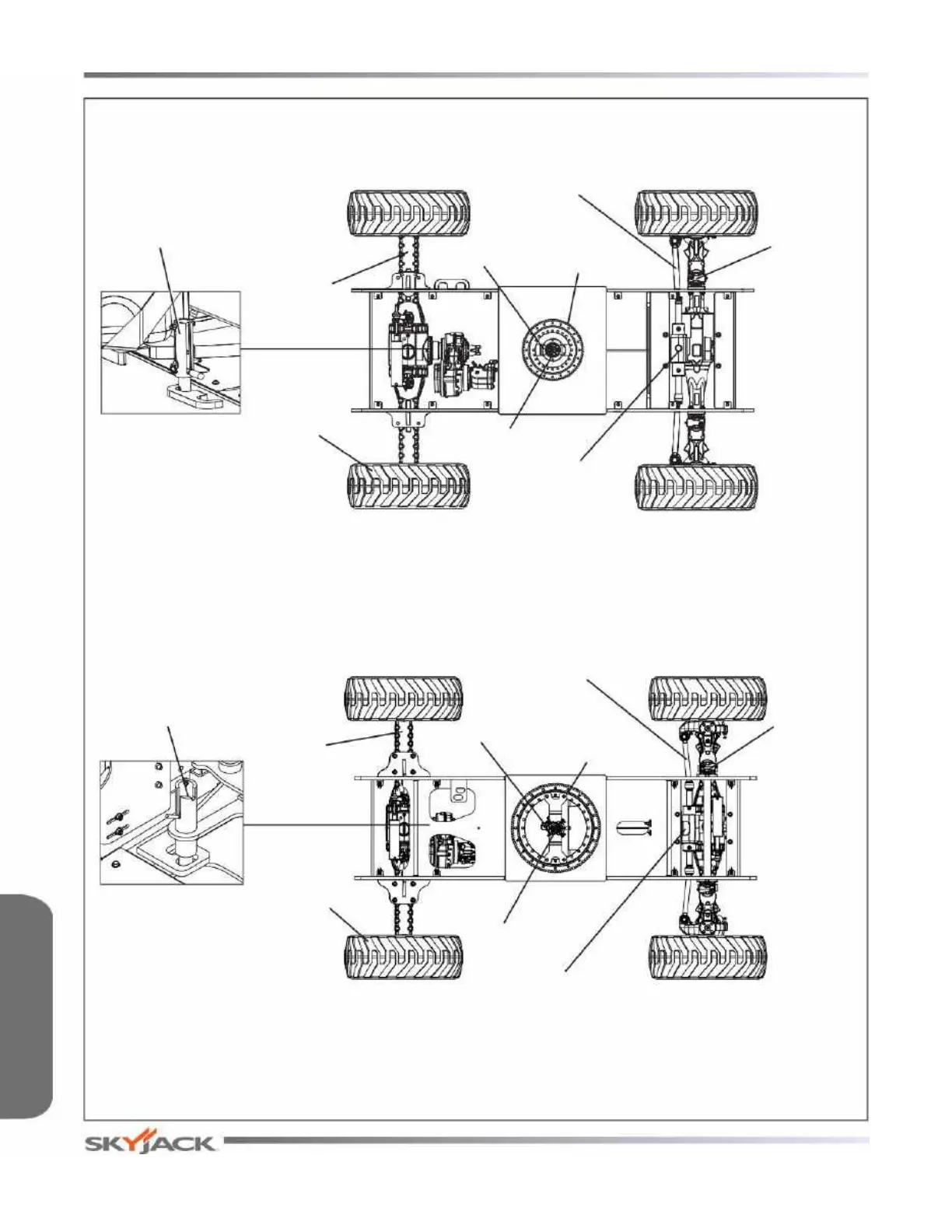

Base - SJ46AJ & SJ51AJ
Base - SJ63AJ
Wheel/Tire
Assembly
Tie Rod
Steer Cylinder
Assembly
Oscillating
Cylinder
Assembly
Turret Rotation
Gear
Rotary
Manifold
Limit Switch
Drive Axle
Turret
Transportation
Lock
Turret
Transportation
Lock
Visual & Maintenance Inspection Section 2 - Familiarization
