Visual & Maintenance Inspection Section 2 - Familiarization
It is the responsibility of the operator to read, completely understand and follow all instructions and warnings
contained in this operating manual and on the aerial platform.
FAMILIARIZATIONFAMILIARIZATION
• Steer Cylinder Assembly
- Ensure steer cylinder assembly is
properly secured, there are no loose
or missing parts, all fittings and hoses
are properly tightened and there is no
evidence of hydraulic leakage.
• Splitter Manifold
- Ensure all fittings and hoses are properly
tightened and there is no evidence of
hydraulic leakage.
• Tie Rod
- Ensure there are no loose or missing
parts, tie rod end studs are locked and
there is no visible damage.
• Emergency Lowering Access Rod
- Ensure rod is properly secured and there
is no visible damage.
• Ladder
- Ensure there are no loose or missing
parts and there is no visible damage.
• Hydraulic Outriggers (If Equipped)
- Ensure there are no loose or missing
parts and there is no visible damage.

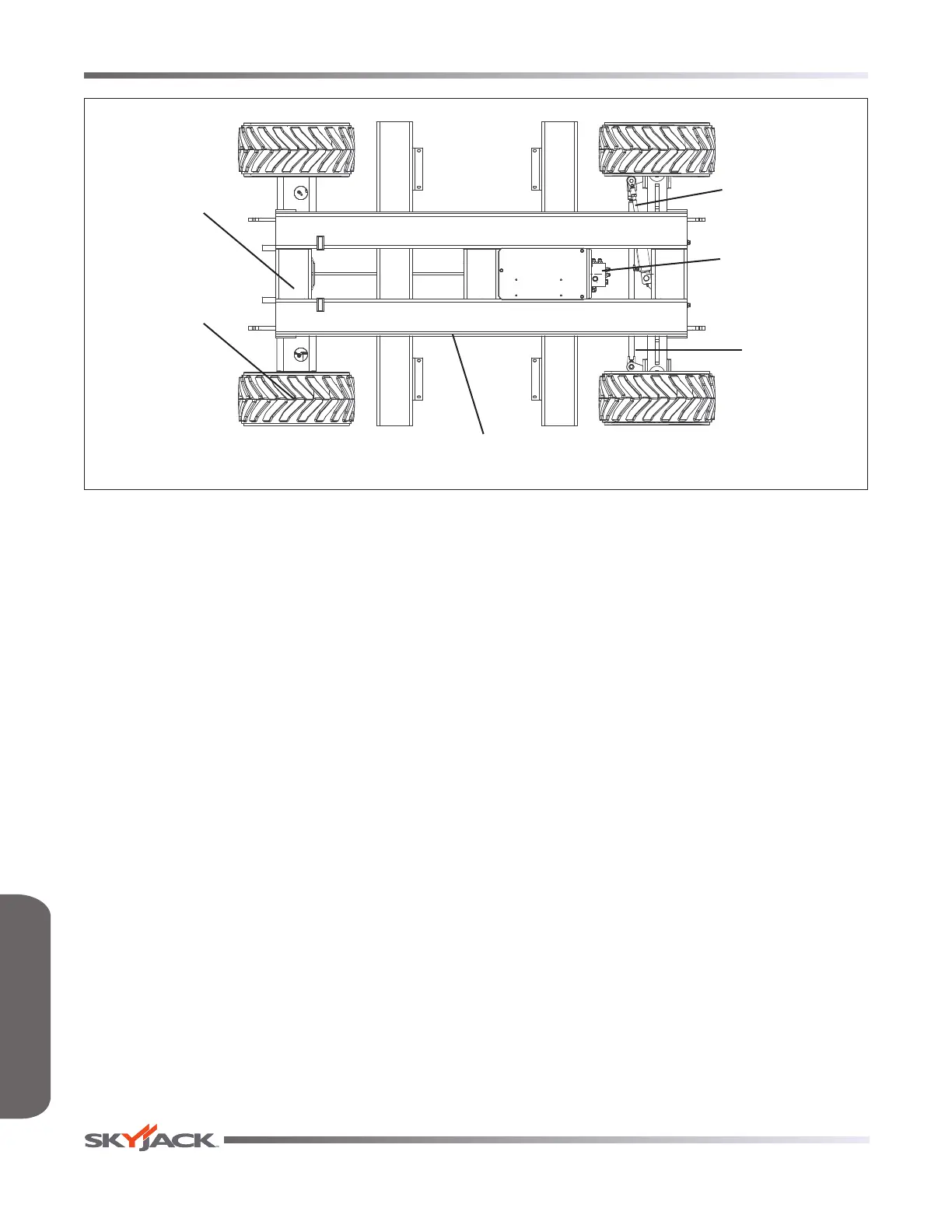

Wheel/Tire
Assembly
Steer Cylinder
Assembly
Tie Rod
Overhead View
Base
Weldment
Splitter Manifold
Emergency Lowering Access Rod
