Rough Terrain Scissors
December 2007 Page 73
Section 5 Labels

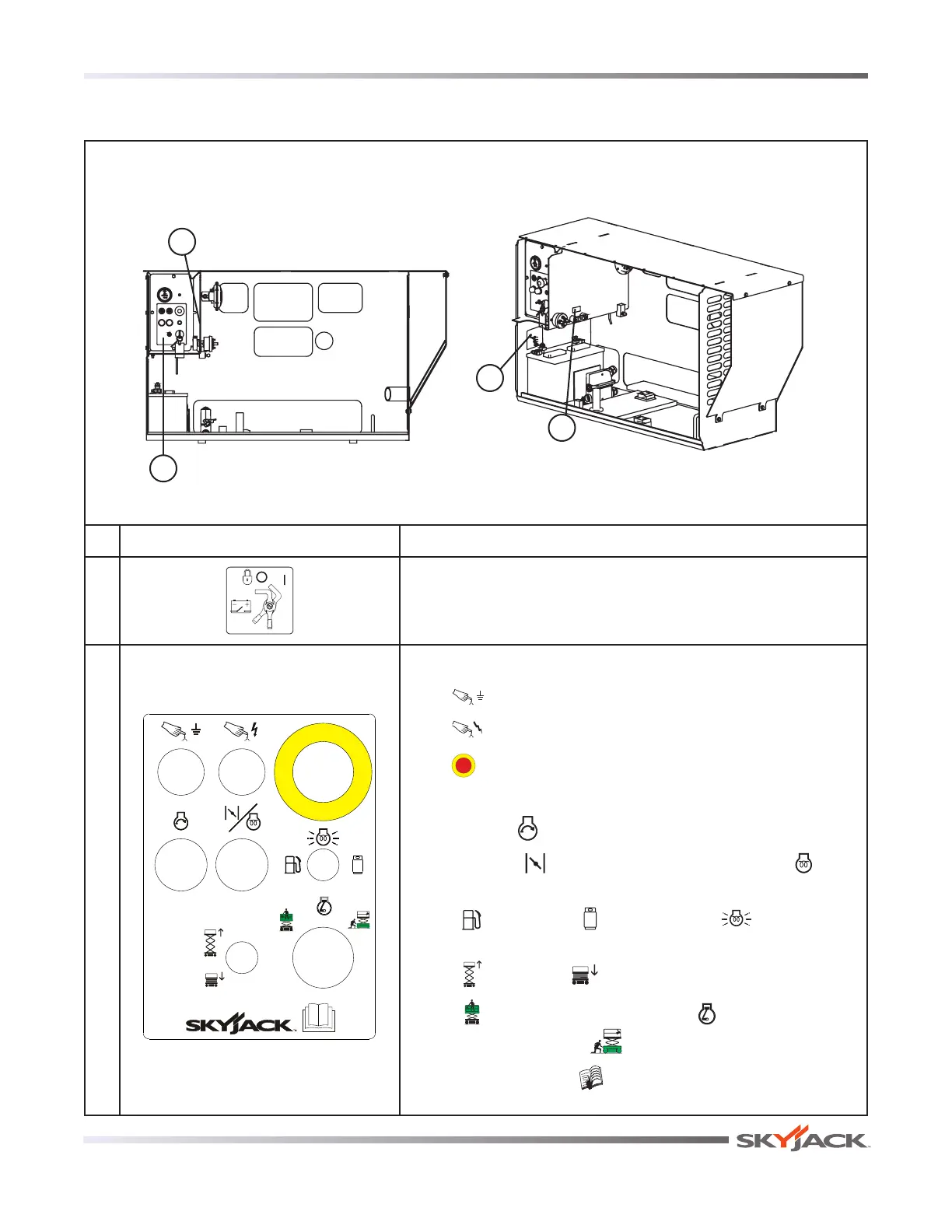

No. Label Pictorial Description
1
Main Power Disconnect
Main power disconnect switch
2
Electrical Panel SJ68xxRT
Push “ ” to reset ground circuit breaker.
Push “ ” to reset power circuit breaker.
Push “ ” to stop engine and disable controls (Emergency Stop).
Light indicates controls enabled.
Push and hold “
” to start engine.
Push and hold “
” to operate choke (dual fuel) or “ ” glow
plugs (diesel).
Select “
” gasoline or “ ” propane. Light “ ” indicates glow
plug operation (diesel).
Select “
” to raise or “ ” to lower platform.
Select “ ” to enable platform controls, “ ” to allow engine run
with no controls active or “ ” to enable base control console.
Read operating manual.
