Rough Terrain Scissors
December 2007 Page 89
Section 5 Labels
1
2

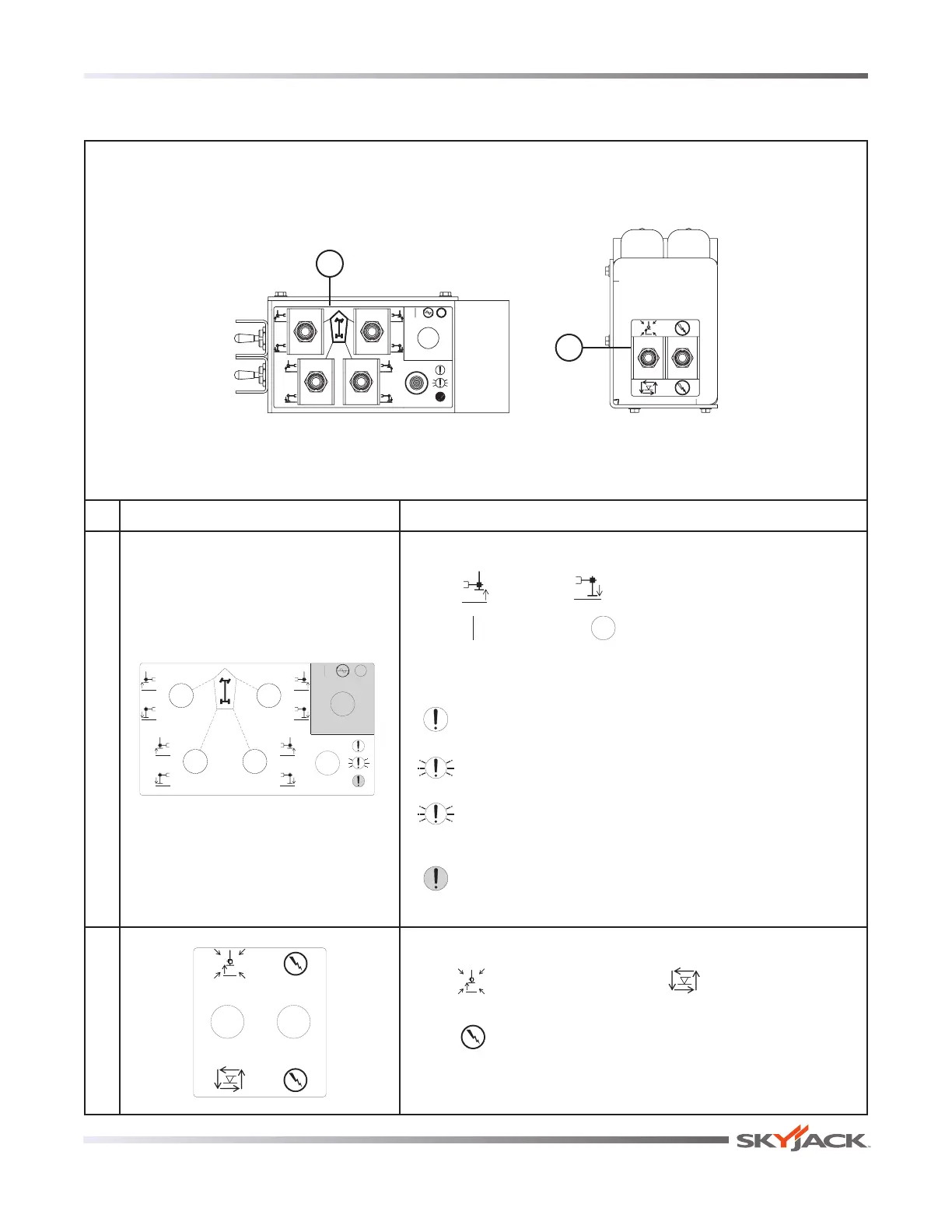

No. Label Pictorial Description
1
Manual Outrigger Control Console with Generator
Select “ ” retract or “ ” extend for each outrigger.
Select “
” to enable or “ ” to disable generator.
Indicates leveling system status:
Off: The outriggers are fully retracted.
Flashing Rapidly: The outriggers are extending but the
platform is not level.
Flashing: The outriggers are extended but the platform is
not yet level.
Solid: The outriggers are extended and the platform is
level.
2
Automatic Outrigger Control Console
Select “ ” to retract all outriggers or “ ” to extend all outriggers
with automatic leveling.
Select “
” to enable manual or automatic outrigger controls.
Outrigger Control Console (If Equipped)
