BATTERY MEMORY SET AND CALL OUT
[ B A T T M E M O R Y 1 ]
E N T E R S E T - >
B A T T T Y P E
L i P o
B A T T V O L T S
7 . 4 V ( 2 S )
C H A R G E C U R R E NT
4 . 9 A
D S C H C U R R E N T
2 . 0 A
D S C H V O L T A G E
3 . 0 V / C E L L
T V C = Y O U R R I S K
4 . 2 0 V
S A V E P R O G R A M
E N T E R
The charger can store up to 20 different charge/discharge profiles(each channel 10 sets)
for your convenience, and the stored profiles can be recalled quickly without having to go
through the setup process.
When you are willing to alter the parameter value in the program, press START/ENTER to
make it blink then change the value with INC or DEC. The value will be stored by
pressing START/ENTER once.
Note: All following screen are taking 2S(7.4V) LiPo battery for example.

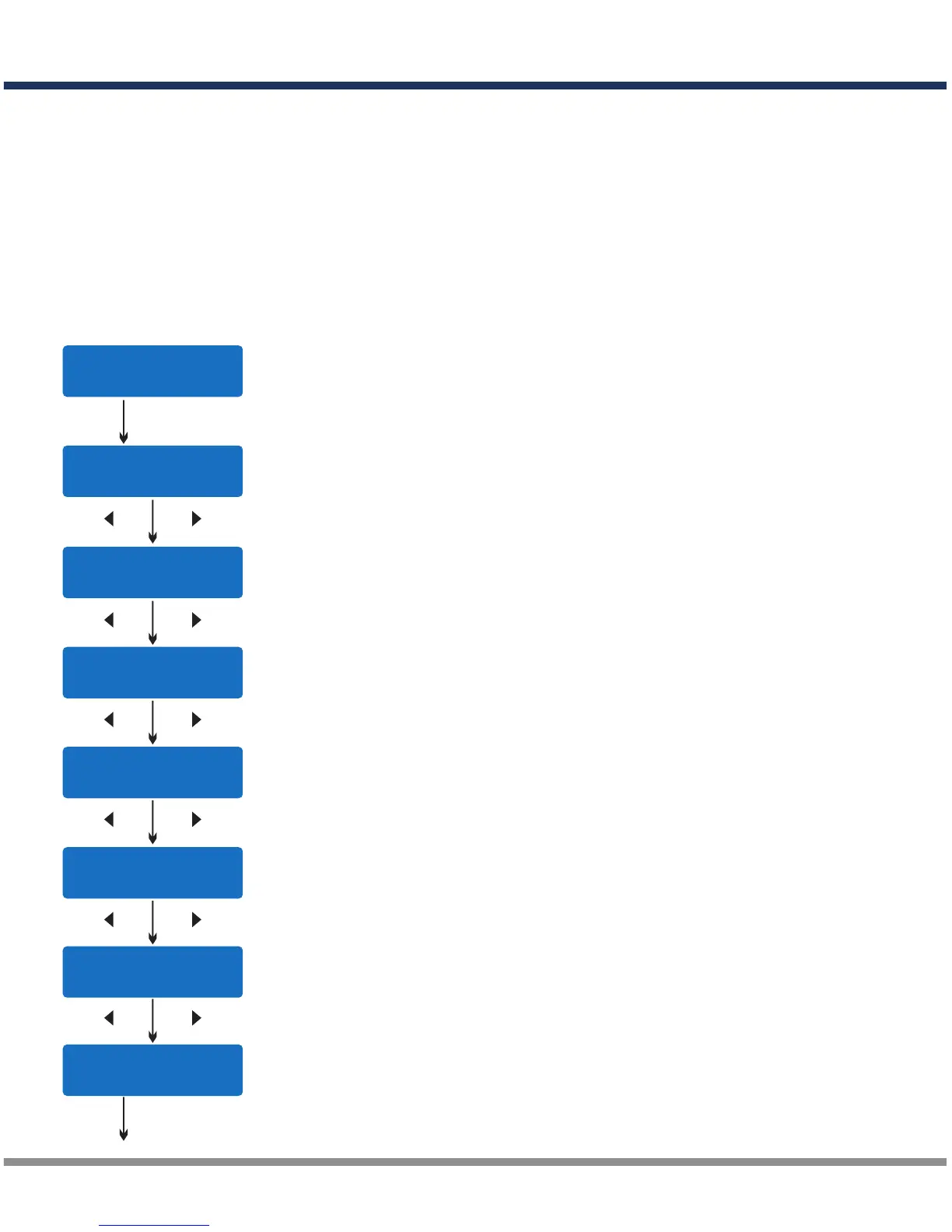

Enter the battery memory program.
(10 different charge/discharge profiles can be stored in each channel).
Set the battery type(LiPo/LiFe/LiIon/LiHV/NiMH/NiCd/Pb).
Set the voltage and number of cells(1S-6S).
Set the charge current(CH A 0.1-20.0A / CH B 0.1-10.0A).
Set the discharge current (0.1A-5.0A).
Set the discharge voltage(3.0-3.3V/Cell).
Set the terminal voltage(4.18-4.25V).
Press ENTER to save program.
1. Battery Memory Set
· 16
D200
START/ENTER
DEC INC
DEC INC
DEC INC
DEC INC
DEC INC
DEC INC
START/ENTER
To Next Page
