LITHIUM BATTERY (LIION/LIPO/LIFE) PROGRAM
Lithium battery (LiIon/LiPo/LiFe) program
These programs are only suitable for charging and discharging Lithium batteries with a
nominal voltage of 3.3V, 3.6V and 3.7V per cell. These batteries need to adopt different
charge technique that is termed constant current (CC) and a constant voltage (CV)
method. The charge current varies according to the battery capacity and performance.

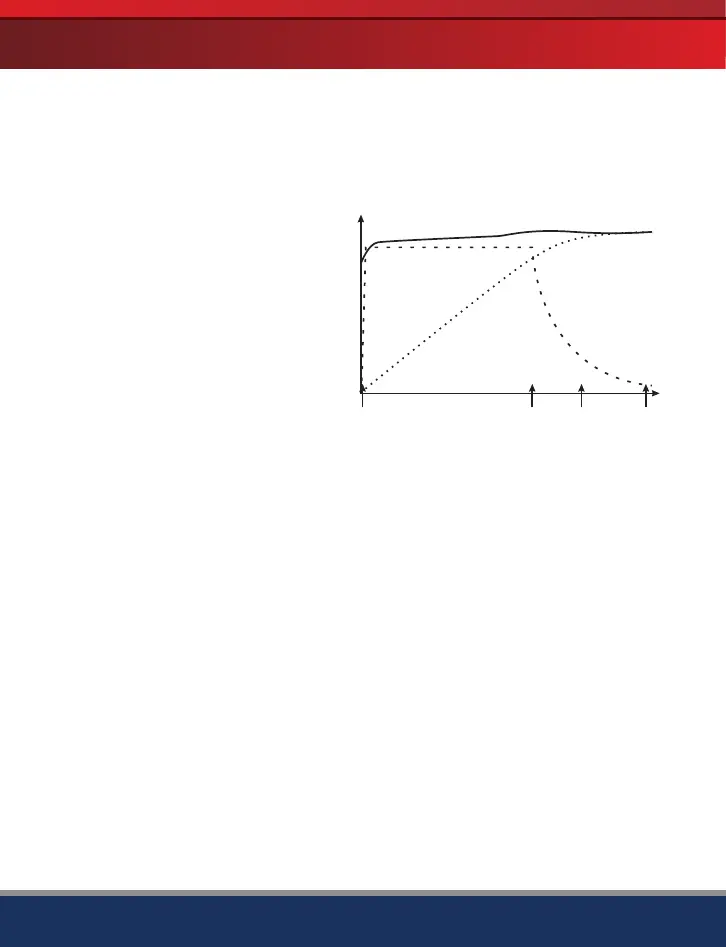

The Lithium battery is charged at a
constant current until it reaches the final
charge voltage of 4.2 V per cell (B).
After this point the voltage is kept at a
constant level, and the residual charge
takes the form of a declining current
curve (C) until the cut-off point (D) is
reached. Charge current = C/10. At this
point the battery can be disconnected
from the charger, and is ready for use.
The final voltage of charge process is also very important; it should be precisely matched
with the charged voltage of the battery. They are 4.2V for LiPo, 4.1V for Lilo, and 3.6V for
LiFe. The charge current and nominal voltage as for cell count set on the charge program
must always be correct for the battery to be charged.
4.2V
V
A
Ah
A
B
C
D
t
V/A/Ah
When you are willing to alter the parameter value in the program, press start/enter key to
make it blink then change the value with Inc> or <Dec key. The value will be stored by
pressing start/enter key once.
