Skytech: 3002
REV. 4-19-12 Page 3

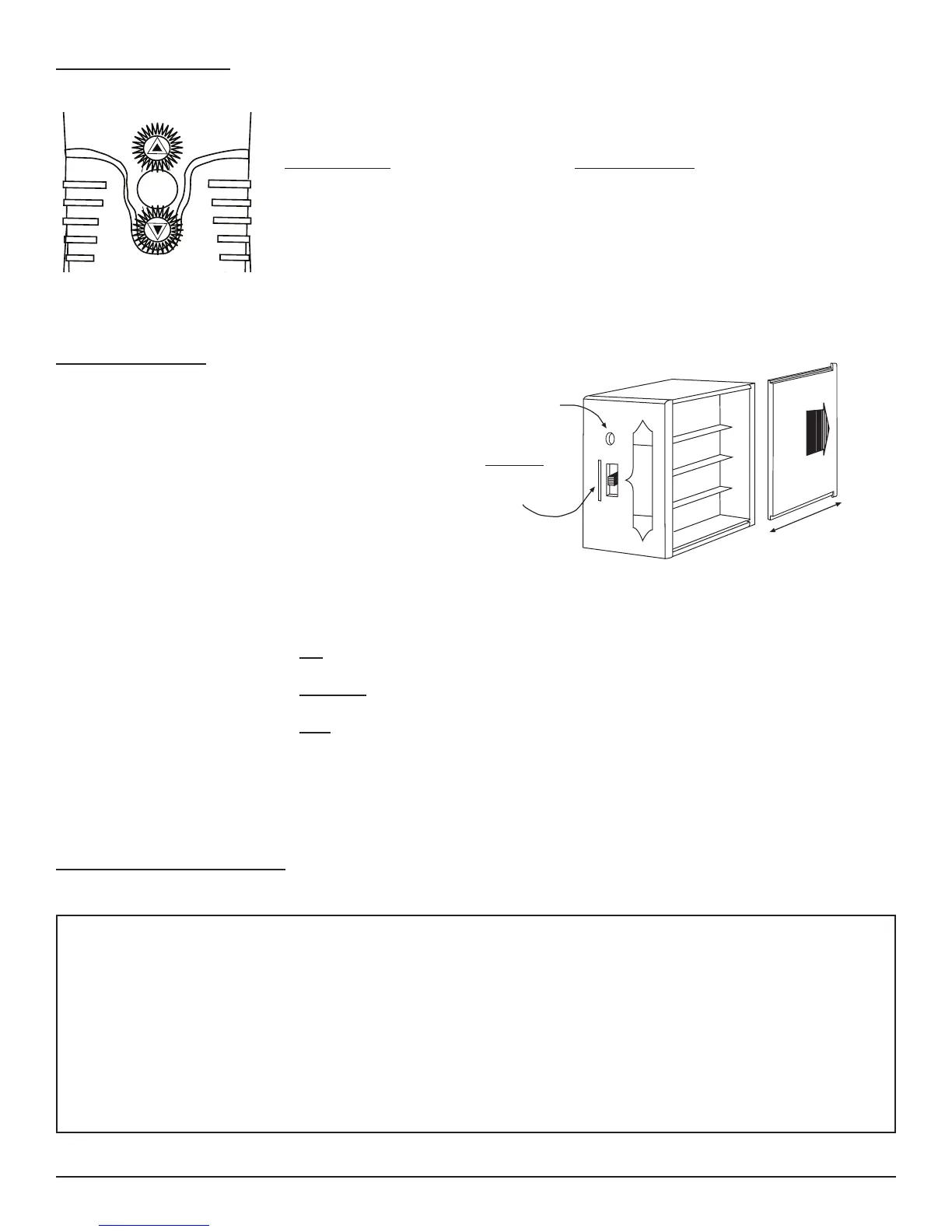

The factory setting for temperature is ºF. To change this setting to ºC, rst press and hold
the UP and DOWN buttons on the transmitter at the same time (Fig. 10). Follow this same
procedure to change from ºC back to ºF. When changing between the ºF and ºC scales, the
temperature in the SET frame defaults to the lowest temperature (45º F, or 6º C). The
highest SET temperature is 99º Fahrenheit (32º Celsius).
SETTING ºF / ºC SCALE
The remote receiver operates on (4) AA-size 1.5V batteries.
It is recommended that ALKALINE batteries be used for
longer battery life and maximum microprocessor
performance. IMPORTANT: New or fully charged batteries
are essential for proper operation of the remote receiver.
The remote receiver houses the microprocessor that
responds to commands from the transmitter to control
system operation. It emits one beep when it receives an
ON or OFF command manually, but no beep when cycling
on and off automatically in THERMO mode. The remote
receiver has a 3-position slide switch (Fig. 11) for selecting
the ON/REMOTE/OFF mode of operation:
• With the slide switch in the ON position (toward the LEARN button), the system will remain ON until the slide
switch is placed in the OFF or REMOTE position.
• With the slide switch in the REMOTE position (centered), the system will only operate if the remote receiver
receives commands from the transmitter.
• With the slide switch in the OFF position (away from the LEARN button), the system is OFF.
• It is suggested that the slide switch be placed in the OFF position if you will be away from your home for an
extended period of time. If the remote receiver is mounted out of children’s reach, placing the slide switch in the
OFF position also functions as a safety “lock-out” by both turning the system off and rendering the remote receiver
inoperative.
REMOTE RECEIVER
REMOTE
ON
OFF
LEARN
Requires 4-AA 1.5V
alkaline batteries
Learning
button
Remote Receiver
Battery cover slides on/off
Slide
Switch
ON
REMOTE
OFF
Fig. 11 Remote Receiver
INSTALLATION PRECAUTIONS
This remote control system must be installed exactly as outlined in these instructions. Read all instructions completely
before attempting installation. Follow instructions carefully during installation. Any modications of the SKYTECH
remote control or any of its components will void the warranty and may could cause a re hazard.
Do not connect any gas valve or electronic module directly to 110-120VAC power. Consult gas appliance manufac-
turer’s instructions and wiring schematics for proper placement of all wires. All electronic modules are to be wired to
manufacturer’s specications.
The following wiring diagrams are for illustration purpose only. Follow instructions from manufacturer of gas valve and/
or electronic module for correct wiring procedures. Improper installation of electric components can cause damage to
electronic module, gas valve and remote receiver.
WARNING
Fig. 10 Temperature Scale
