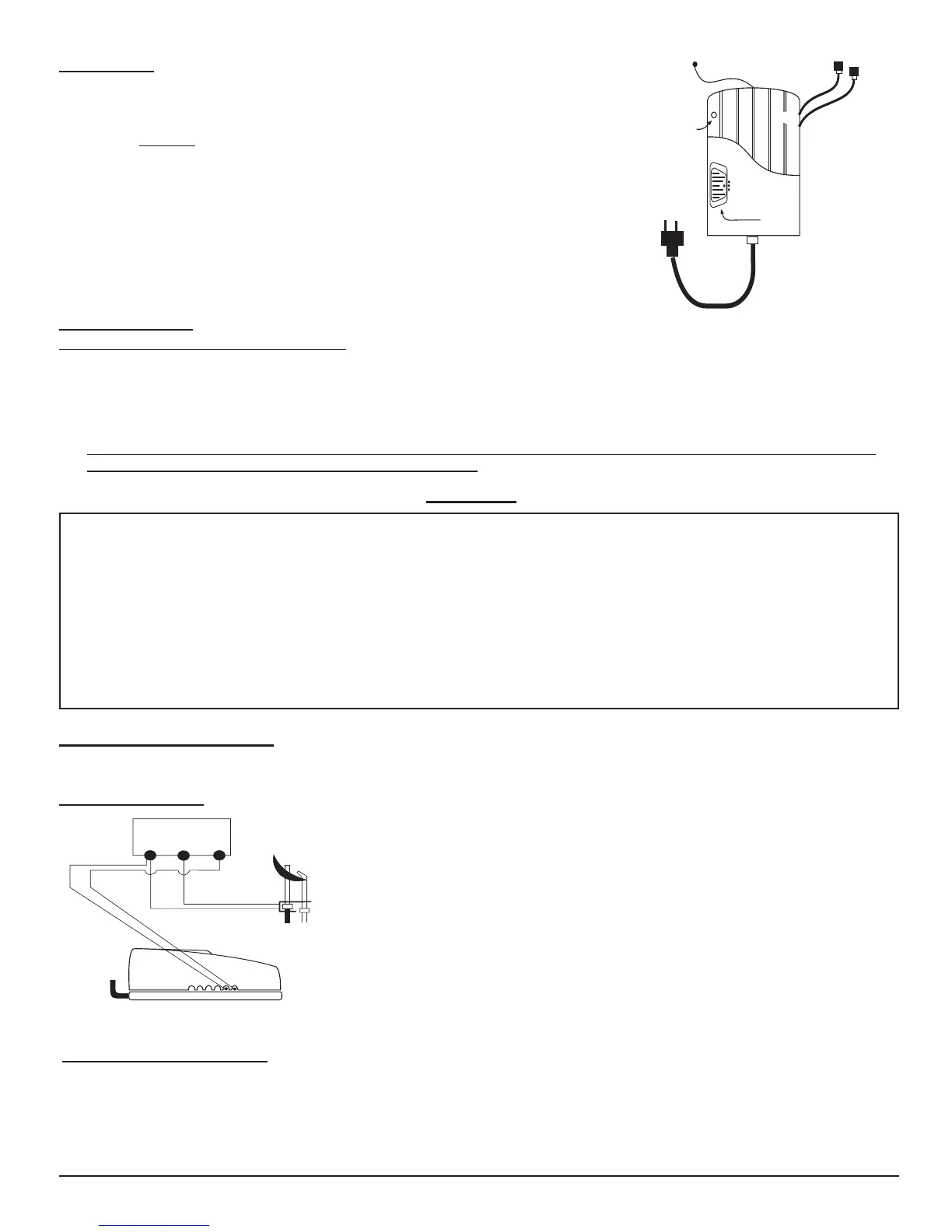

Skytech 1410 T/LCD-A - Page 2

Slide
Switch
OFF
REMOTE
ON
LEARN
VALVE
ANTENNA
REMOTE RECEIVER
Dry Contact
(2) 1/4” female
Connectors
To 110VAC
input
• Before installation, make sure you turn the slide switch to OFF. After installation, make sure you turn the slide switch to REMOTE.
• The remote receiver can be placed on the replace hearth or under the replace behind the control access panel.
• Use the wires attached to the remote receiver to connect to the gas valve or the electric module (piggyback connectors have both
male & female terminals for exibility).
• Be sure that the connectors do not touch each other or other bare metal surfaces; this will cause the appliance to turn on. The
connectors may be wrapped with electrical tape to prevent this.
INSTALLATION
Protection from extreme heat is very important. The remote receiver should be kept away from temperatures exceeding 130ºF. Extreme
heat can cause damage, which is not covered under warranty.
WIRING INSTRUCTIONS
A qualied electrician should install the remote control system.
1 2 3 4 5 6
REMOTE RECEIVER
TERMINAL BLOCK
ON MILLIVOLT
GAS VALVES
TH
TP
TP
TH
THERMOPILE/
PILOT LIGHT
To 110VAC
input
MILLIVOLT VALVES
MILLIVOLT SYSTEM CHECK
• Ensure that the pilot ame is lit.
• Slide the 3-position button on the remote receiver to the ON position. The main gas ame (i.e., the re) should ignite.
• Slide the button to OFF. The main ame should extinguish (the pilot ame will remain on).
• Slide the button to REMOTE, then press the ON button on the transmitter to change the system to on. The main gas ame should
ignite.
REV. 11-8-16 Page 2
When plugged into a standard 110-120 VAC receptacle, the remote receiver operates on
commands from the transmitter or from the slide switch on the face of the receiver (This
switch is to be used during a power outage to operate the appliance manually).
• ON: will manually turn on the appliance.
• REMOTE: will allow use of handheld transmitter. If the system does not respond to the
transmitter on initial use, check the battery positions in the remote. If that does not work,
see the LEARNING TRANSMITTER TO RECEIVER section.
• OFF: will disable the remote receiver.
• It is suggested that the slide switch be placed in the OFF position if you will be
away from your home for an extended period of time.
The remote receiver is manufactured with a “dry contact” relay in its circuitry that operates
like an on/off switch. However, no power or current passes from the 110-120VAC input side
to the wires leading from the output side of the remote receiver.
RECEIVER
WARNING
This remote control system must be installed exactly as outlined in these instructions. Read all instructions completely before
attempting installation. Follow instructions carefully during installation. Any modications of this remote control or any of its
components will void the warranty and may pose a re hazard.
Consult gas appliance manufacturer’s instructions and wiring schematics for proper placement of all wires. All electronic modules
are to be wired to manufacturer’s specications.
The following wiring diagrams are for illustration purpose only. Follow instructions from manufacturer of gas valve and/or electronic
module for correct wiring procedures. Improper installation of electric components can cause damage to electronic module, gas
valve and remote receiver.
• Connect one wire from the remote receiver to the TH terminal on the gas
valve.
• Connect the other wire from the remote receiver to the TH/TP terminal on
the gas valve.
Skytech 1410 T/LCD-A
