Page 15
6701 OPERATOR • REV2
2-6. Positioning Functions

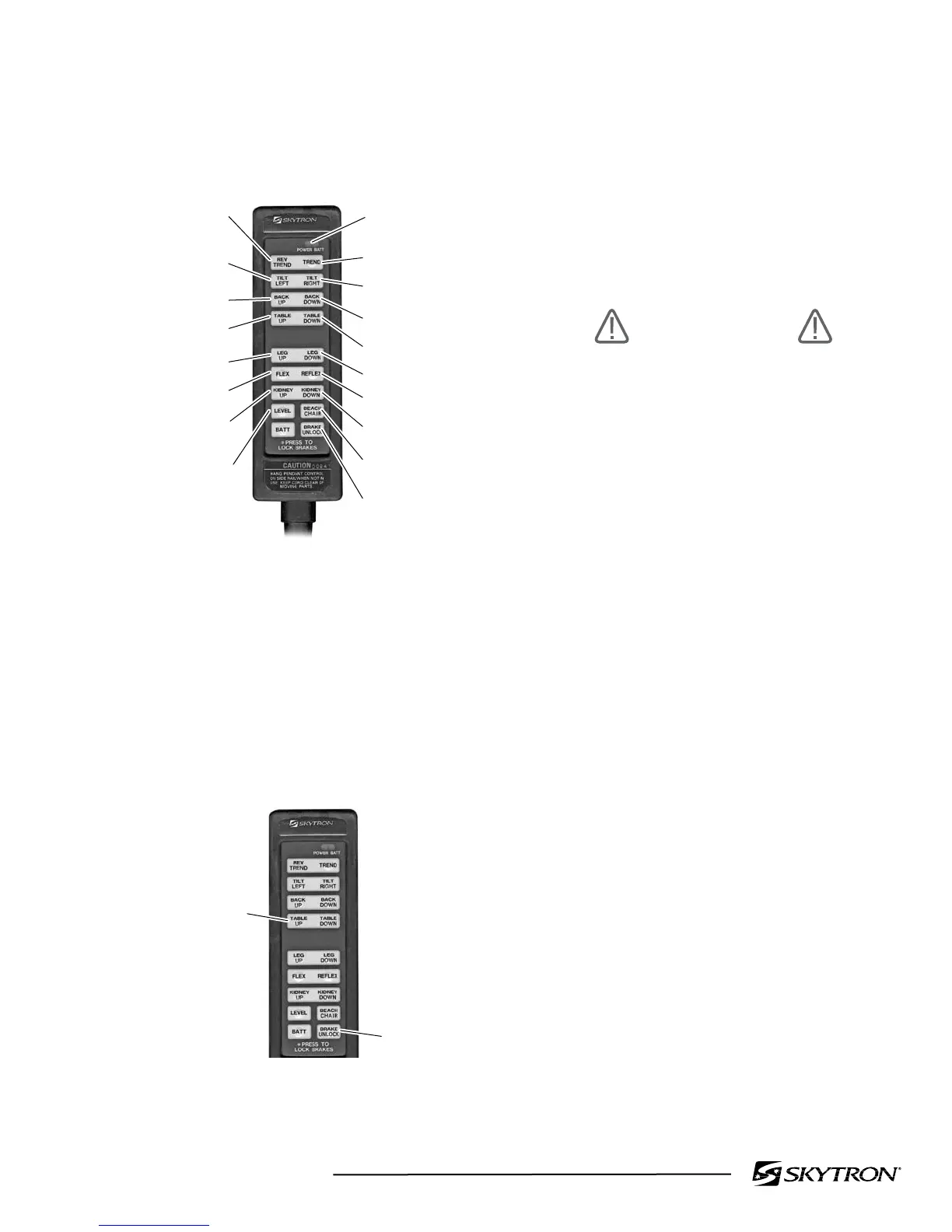

The hand-held pendant control (figure 2-4) activates
the following table functions:
Figure 2-4. Pendant Control Function
Buttons
a. Floor Lock/Brake System. To activate
the brakes without affecting table positioning,
press the TABLE UP button. See figure 2-5. The
elevation cylinder will not function until the brakes
are completely extended.
Figure 2-5. Brake System Activation
Press the BRAKE UNLOCK button on the pendant
control to release the four self-leveling brake feet
in order to move the table. See figure 2-5. The
brake delay circuit automatically retracts the brake
system. It takes approximately 7-8 seconds to
totally release the system.
WARNING
•Do Not unlock brakes when patient is
on the table. An uneven patient weight
load may cause instability.
•If circumstances demand table brakes
to be unlocked, the patient must be
centered and evenly distributed on the
table top (i.e. supine or prone position)
with the table lowered to its lowest height
position. The maximum patient weight
should not exceed 500 pounds. Table top
rotation must be in normal orientation,
that is, the back section over the long
end of the table. Patient's head must be
on the head section. Head section must
be attached in its normal orientation to
the table's back section.
•Prior to unlocking brakes, check for
obstructions on the floor that might
prevent the table from moving smoothly
to new location. Relock the brakes
immediately once the final position
is reached and before commencing
surgery. Table brakes should remain
locked at all times if patient weight
exceeds 500 pounds.
NOTE
With an evenly distributed patient weight
load, all table positioning functions will
operate smoothly and quietly with a
patient weight of up to 1,000 pounds.
AC120V POWER ON
INDICATOR LIGHT
(GREEN)
TABLE UP
(BRAKE LOCK)
LATERAL
TILT LEFT
BACK UP
LEG UP
FLEX
KIDNEY
LIFT UP
RETURN
TO LEVEL
LATERAL
TILT RIGHT
BACK DOWN
TABLE DOWN
LEG DOWN
REFLEX
KIDNEY
LIFT DOWN
BEACH
CHAIR
BRAKE
UNLOCK
REVERSE
TRENDELENBURG
TRENDELENBURG
TABLE UP
(BRAKE LOCK)
BRAKE
UNLOCK
