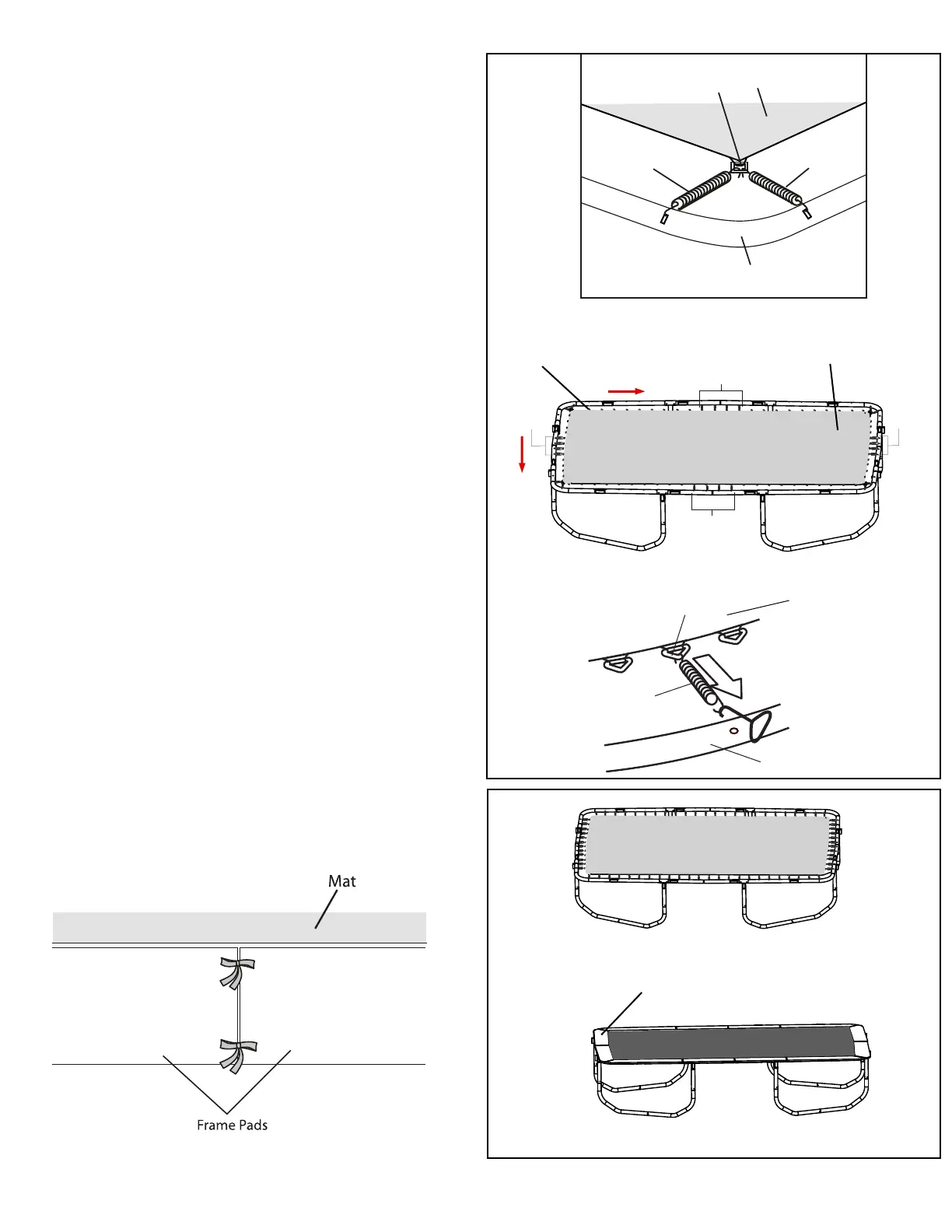

Note: There are 68 V-rings and 4 D-rings around the edge of the Bed
(Mat) (15) and 76 holes around the top of the frame. In
Steps 8 and 9 you will attach the Bed (Mat) (15) to the
frame, using 76 spring
matD-ring
corner tube
small spring
small spring
8, Attach two small springs(16) to the each corner of the mat(15)
There should be now be a total of 8 small springs attahced.
Count exactly 10 holes from corner and 10 V-vings in 15ft
dirction, Attach four big springs to the V-ring and frame
there will be a 8 big spings attached
Count 6 V-rings from corner and 6 frame holes in 9 ft direction
and attach four small springs, there will be 16 big spings attached
Continue to attach the remaining small springs between
the previously attached Springs, until all Springs are attached.
9. Lay one of the two frame Pad (17) on the frame.
Adjust the position of the Frame Pad so that the slits are
directly above the frames (2), as shown. Securely tie the
two frame pads together using the attached straps.
big springs
big springs
big
springs
big
springs
15ft dirction
V-ring
15
9 ft
direction
8
9
17
16
Note:The spring has a large hook which attaches to the
frame and a small hook which attaches to the mat V-ring.
16
V-ring
Frame
Inset drawing
15
Attach the Spring(16) as follows: Hook one end of a spring
into a V-ring /D-ring sewn on the jump mat. hook a Spring tool
shown as the inset drawing into the free end of the Spring. pull
it by the Spring tool until it reach the frame. push the end of the
Spring into a hole in the frame. unhook the Spring tool
