Smappee Infinity - Initial setup and configuration

11
English – Version 1.2 – January 2021
BusinessLine G4

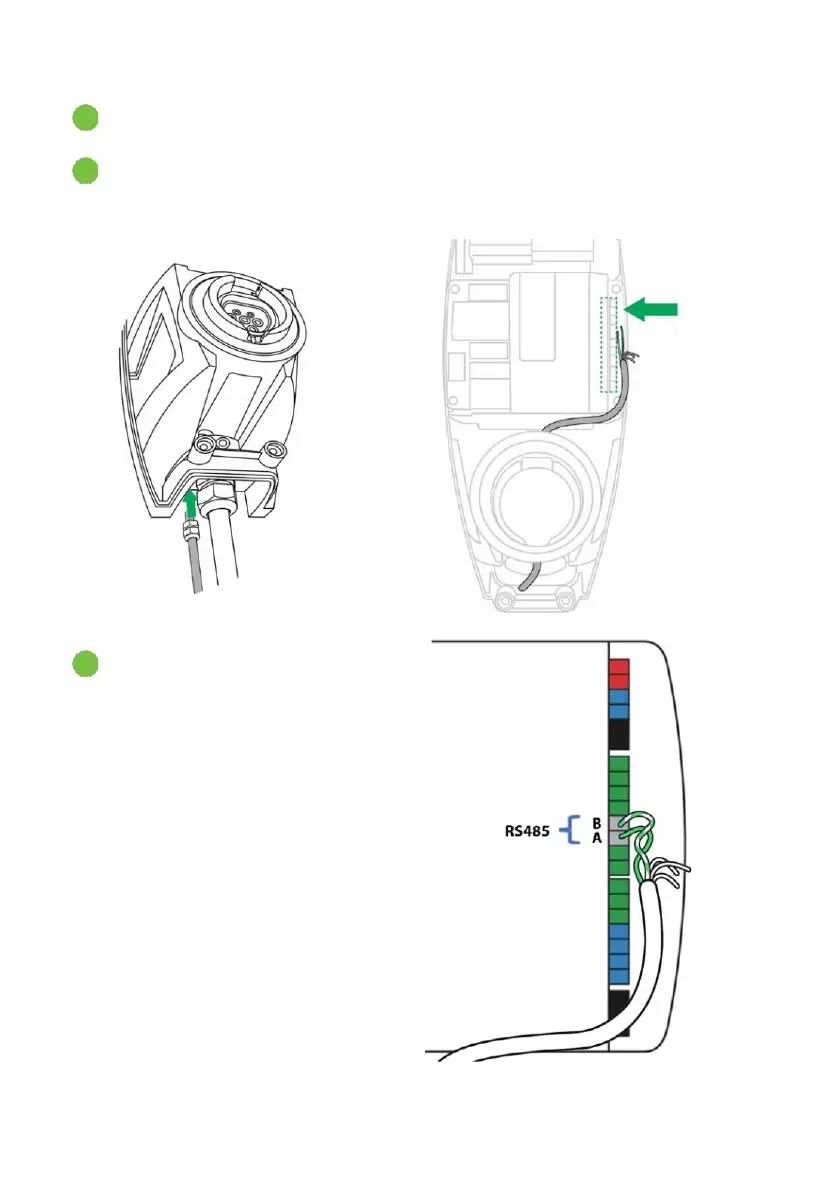

In the charging station, find the RS485 connection on the modem board PCB. The
figures below will help you find the connection.
Route the network cable into the charging station along the same route as the power
cable. When the cable enters the base of the station, drill a hole and use a cable
gland.
Connect the network cable to the
controller’s gray RS485 connector
using the gray 2-pole Phoenix plug
(supplied):
• Green > RS485 pin A
• Green/White > RS485 pin B
3
1
2
1
2
3
