IF302 - Operation and Maintenance Instruction Manual
3.6
Sub_Index
In case you wish to visualize a certain tag, opt for the index relative equal to zero, and for the sub-
index equal to one (refer to paragraph Structure Block in the Function Blocks Manual).
Mnemonic
This is the mnemonic for the parameter identification (it accepts a maximum of 16 characters in the
alphanumeric field of the display). Choose the mnemonic, preferably with no more than 5 characters
because, this way, it will not be necessary to rotate it on the display.
Inc_Dec
It is the increment and decrement in decimal units when the parameter is Float or Float Status time,
or integer, when the parameter is in whole units.
Decimal_Point_Number
This is the number of digits after the decimal point (0 to 3 decimal digits).
Access
The access allows the user to read, in the case of the “Monitoring” option, and to write when "action"
option is selected, then the display will show the increment and decrement arrows.
Alpha_Num
These parameters include two options: value and mnemonic. If option value is selected, the display
will show data both in the alphanumeric and in the numeric fields; this way, in the case of a data
higher than 10000, it will be shown in the alphanumeric field.
If option mnemonic, the display will show the data in the numeric field and the mnemonic in the
alphanumeric field.
In case you wish to visualize a certain tag, opt for the index relative equal to zero, and for the sub-
index equal to one (refer to paragraph Structure Block in the Function Blocks Manual).

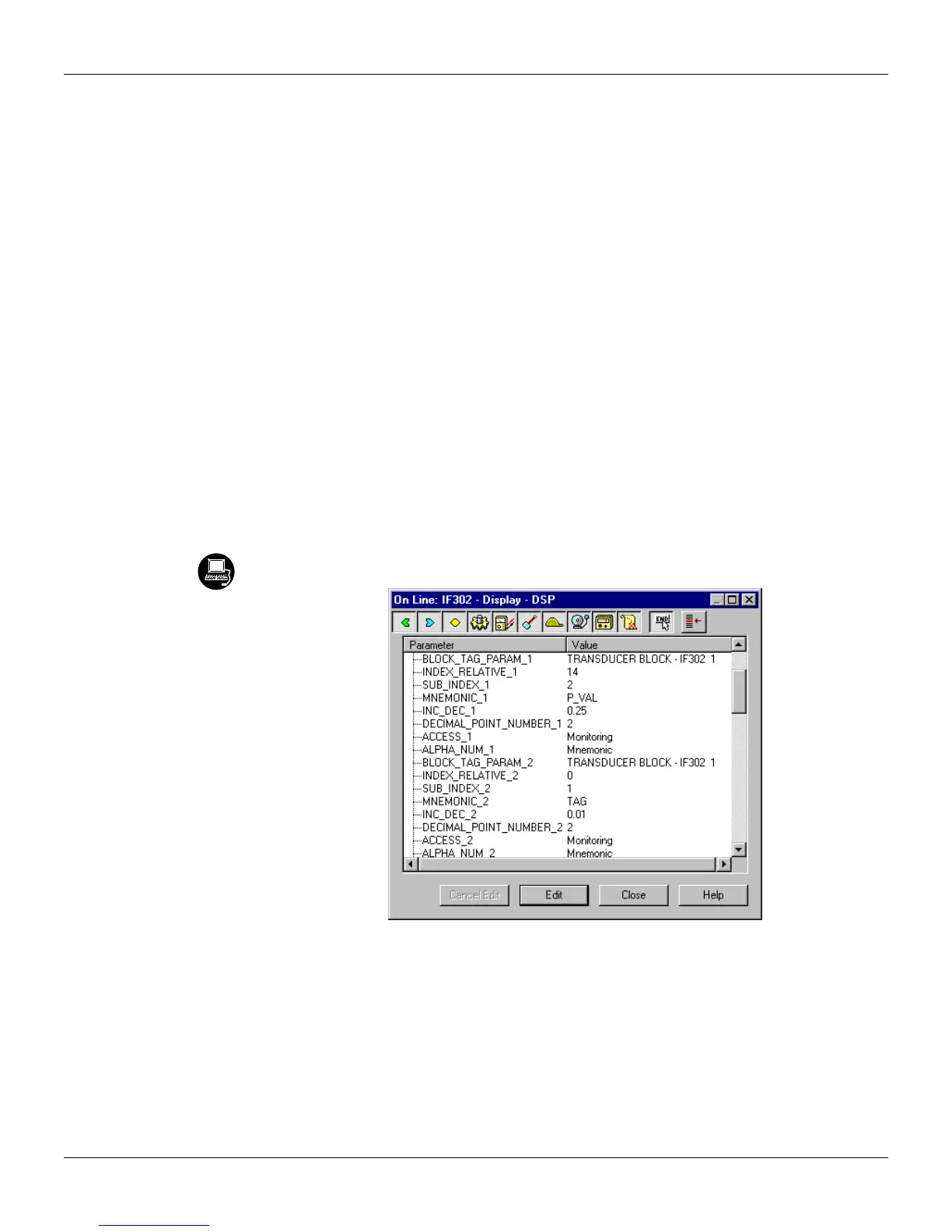

Figure 3.4 - Parameters for Local Adjustment Configuration
