SMAR IF302 - J1 Jumper Connections; W1 Jumper Connections

Configuration
3.9
Magnetic Tool
Span Hole
Zero Hole

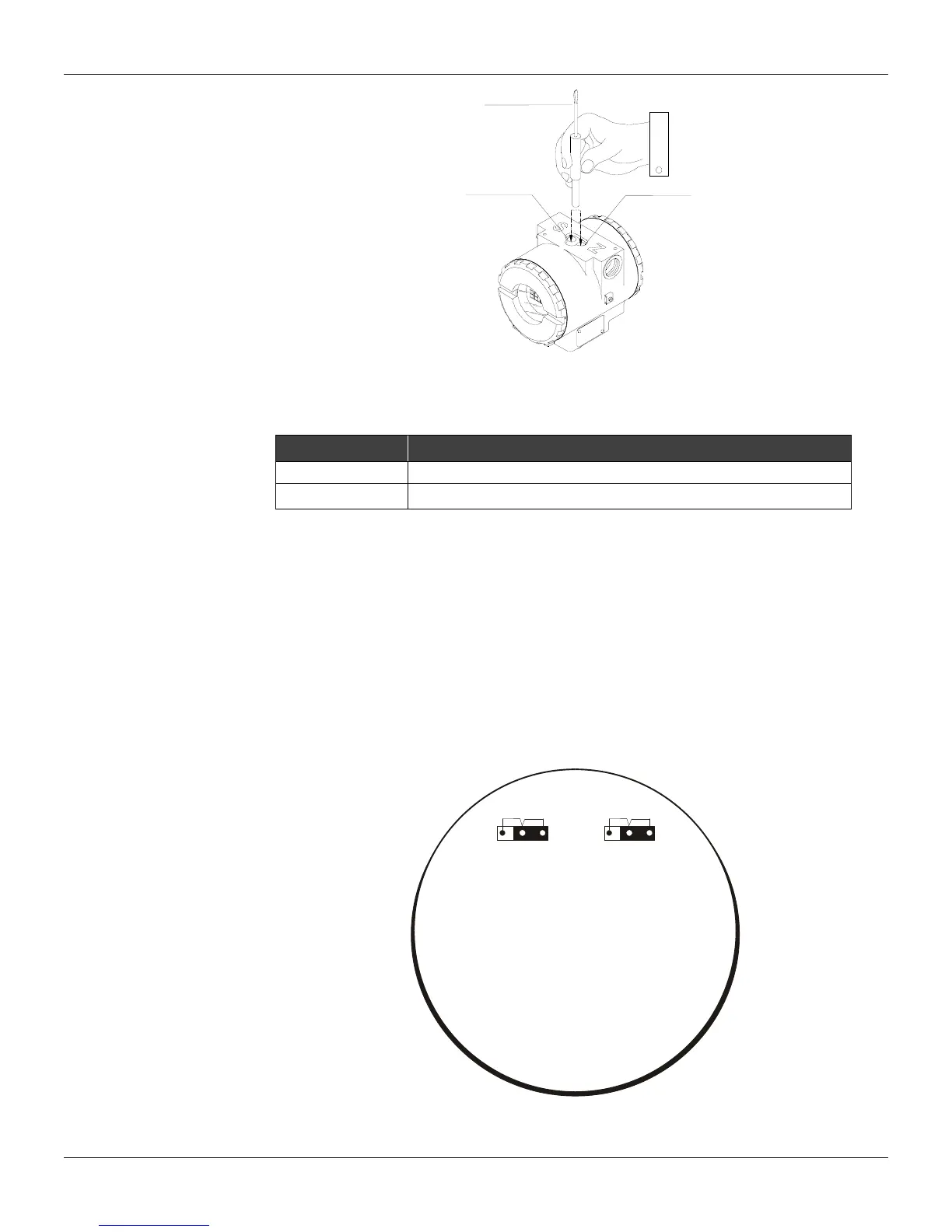

Fig. 3.9 - Local Adjustment Holes
Table 3.1 shows the actions on the Z and S holes on the LD302 when Local Adjustment is enabled.
HOLE ACTION
Z Initializes and rotates through the available functions.
S Selects the function shown in the display.
Table 3.1 - Purpose of the holes on the Housing
J1 Jumper Connections
If J1 (see figure 3.10) is connected to ON, it is possible to simulate values and status through the
SIMULATE parameter, from the function blocks.
W1 Jumper Connections
If W1(see figure 3.10) is connected to ON, the local adjustment programming tree is enabled, the
block parameters can be adjusted and the communication can be pre-configured via local
adjustment.
MAIN BOARD
WR
J1
OFF
ON
W1
LOC
A
DJ
OFF
ON
Fig. 3.10 - J1 and W1 Jumpers
