IF302 - Operation and Maintenance Instruction Manual
3.8

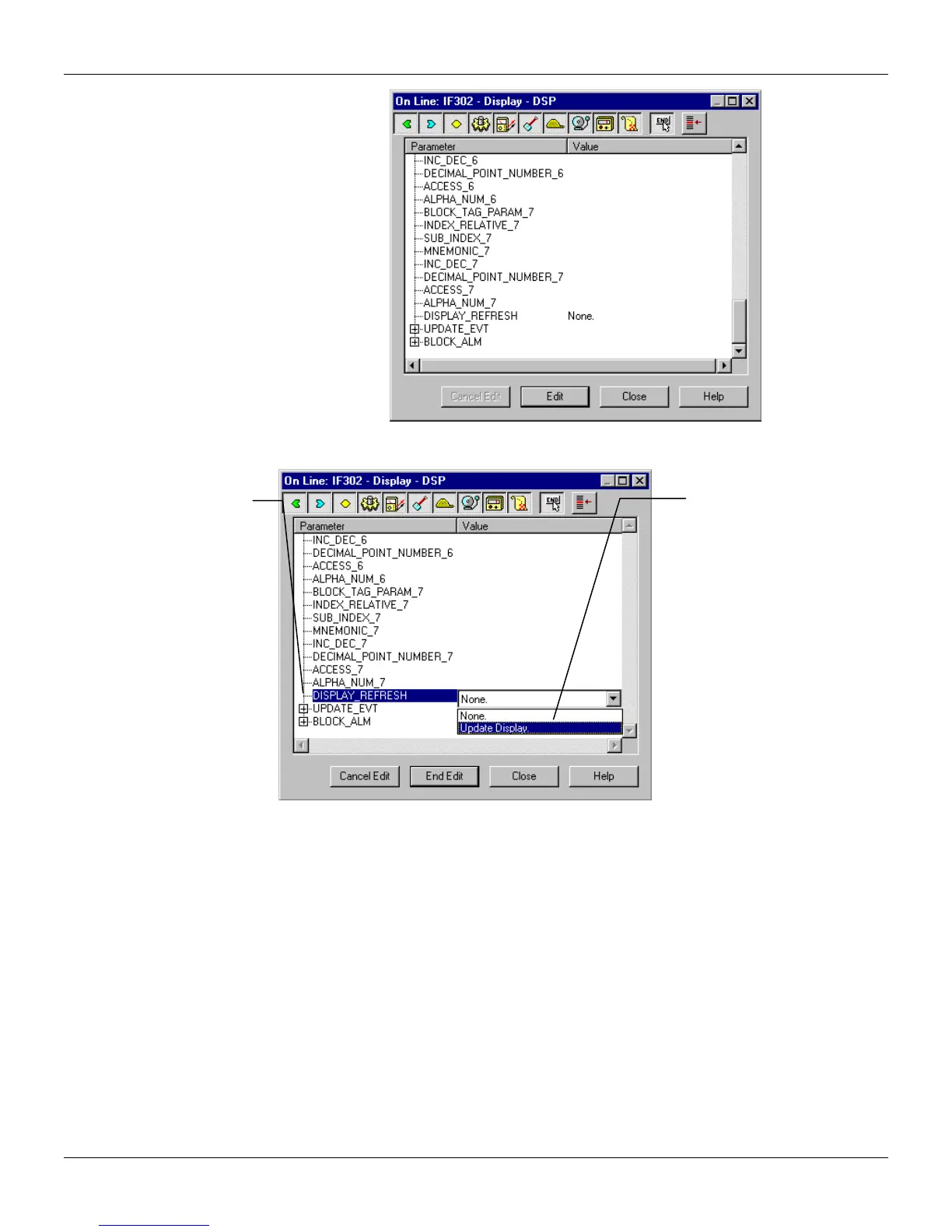

Figure 3.7 - Parameters for Local Adjustment Configuration
Figure 3.8 - Parameters for Local Adjustment Configuration
Programming Using Local Adjustment
The converter has two holes for magnetic switches activated by the magnetic tool located under the
identification plate (See Figure 3.9). These magnetic switches are activated by one magnetic tool.
This magnetic tool enables adjustment of the most important parameters of the blocks. It also
enables pre-configuration of the communication.
The jumper J1 on top of the main circuit board must be in place for this function to be enabled and
the transmitter must be fitted with the digital display for access to the local adjustment. Without the
display the local adjustment is not possible.
The option "update" should
be selected in order to
execute the upgrade of local
adjustment programming
tree.
After its step all the
parameters selected will be
show on the LCD display.
This parameter
updates the local
adjustment
programming tree
configured on each
device.
To Next Page
