Transformers

300А/600А/1000А/1500А

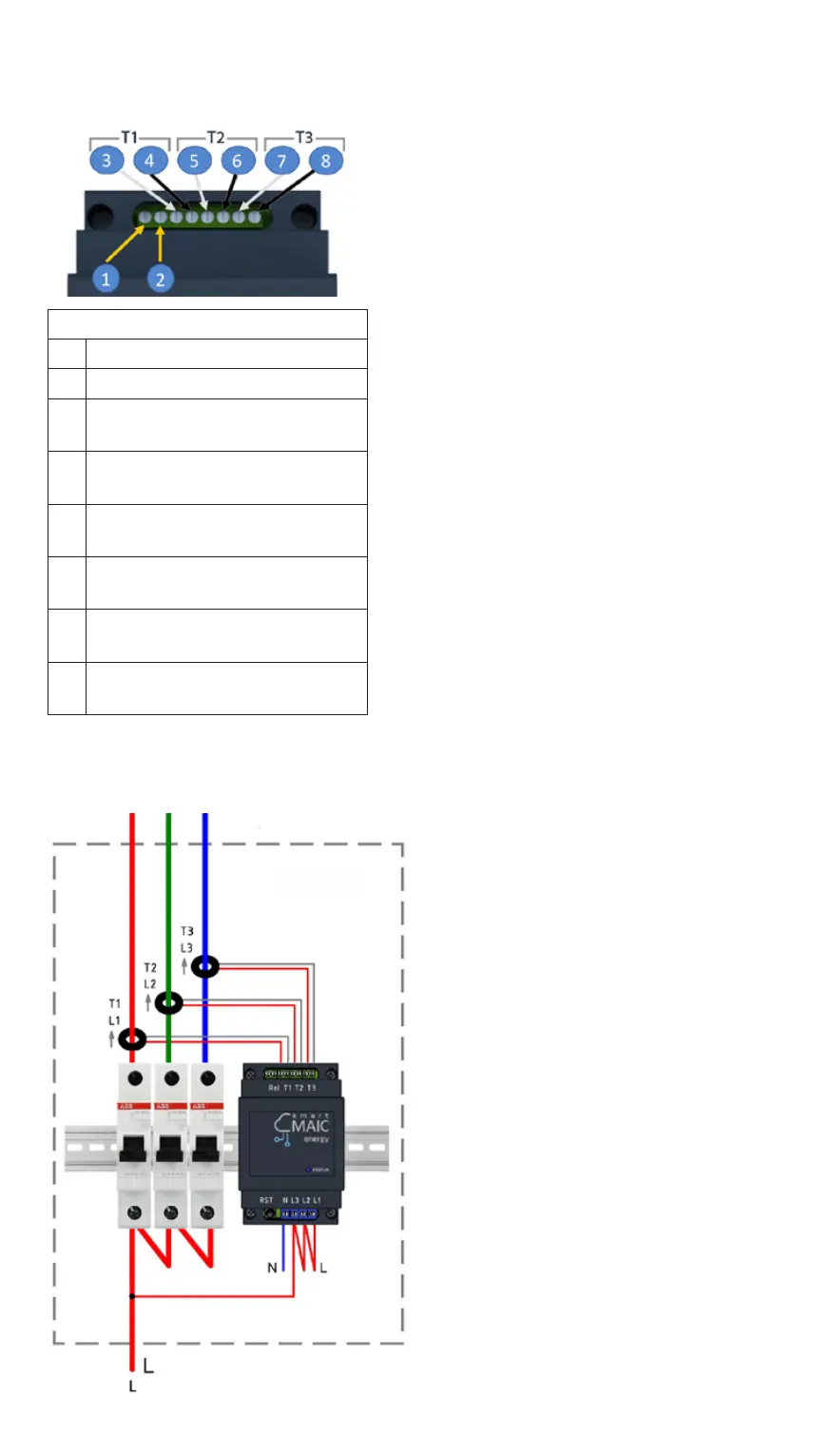

Upper contact group

1 controlled output

2 controlled output

3 current transformer No. 1,

white wire

4 current transformer No. 1,

black wire

5 current transformer No. 2,

white wire

6 current transformer No. 2,

black wire

7 current transformer No. 3,

white wire

8 current transformer No. 3,

black wire

The smart-MAIC D103 energy

monitor is a 3-line device that

can be installed in a single-

phase network to monitor

lines to different consumers

(boiler, air conditioner, kitchen,

sockets, lighting, etc.)

Connect power to one of the

inputs and set jumpers for the

remaining power inputs L1 L2

L3.

Connect the current trans-

formers and put them on the

corresponding lines that go to

the consumers.

Smart-MAIC D103 connection in a single-phase network

to consumer
