Electrical Connection
Single Leaf Gate Set Up
For single leaf gate the opener is prewired ready for set
up. Continue to page 9 for set up procedure.
Motor Connection for Two Leaf Gate
For a two leaf gate a master and slave drive unit is
required with connection via a 5-core cable. Connect

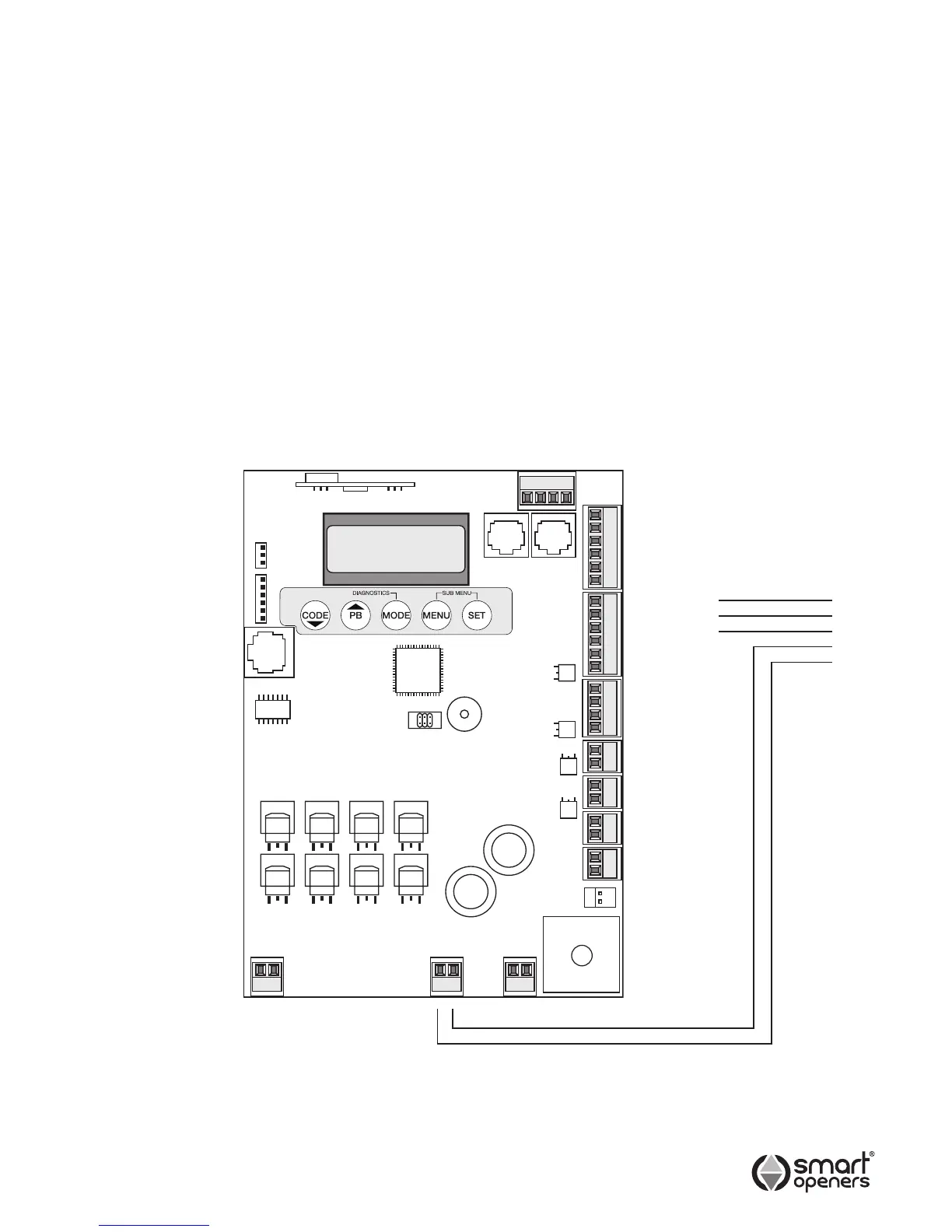

5-core cable from the terminal block on Motor 2 to Motor
1 controller as per wiring diagram (Fig. 4).
Ensure that the cable is properly protected with a cable
gland at each end and a suitable conduit across or under
the driveway.
M1 acts as the Master controller and is prewired ready to
go. No cable connections need to be modied for motor
control and limits.
Note: During limits set up (page 12) you must specify on
which side M1 is positioned.
Fig. 4
© March 2008 Smart Openers Pty Ltd
Com
Push Btn
Pedestrian
Stop
Close
Open
M2 Open Limit
Com
M2 Close Limit
M1 Open Limit
Com
M1 Close Limit
Com
Photo Beam 2
Photo Beam 1
+24V
Lock +
Lock -
Activity 2 +
Activity 2 -
Activity 1 +
Activity 1 -
DC Charger -
DC Charger +
24V AC
Encoder 2 Encoder 1
Motor 1 Motor 2
24V Battery
Back Up
Smart Openers
SC Vx.xx
RF Receiver
