HGM400N Series Genset Controller User Manual Page 35 of 38

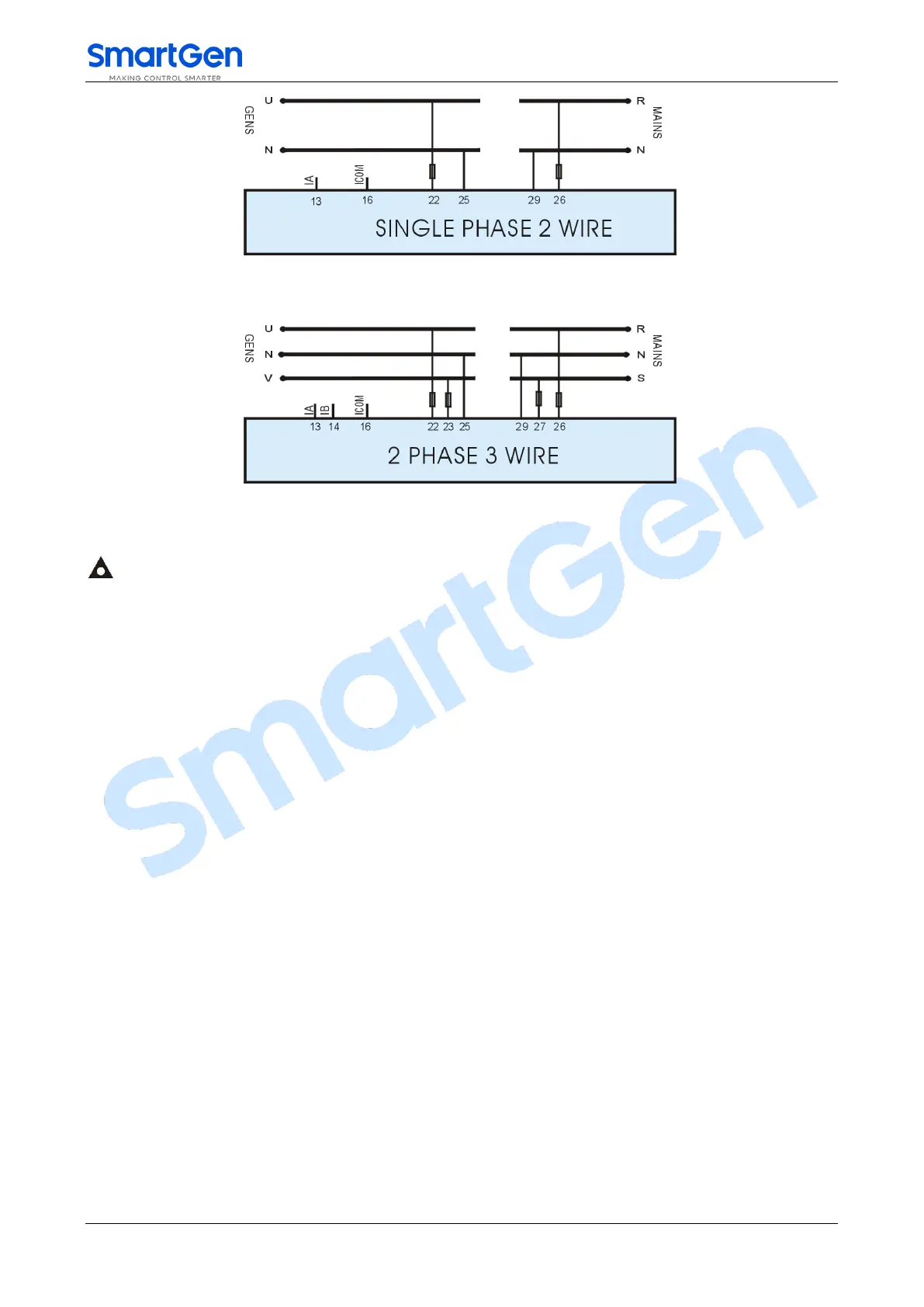

Fig.6 Single Phase 2 Wire
Fig.7 2 Phase 3 Wire
NOTE: It is suggested to expand relay with high capacity for start and fuel outputs.
