HGM6100N Series Genset Controller User Manual Page 36 of 47

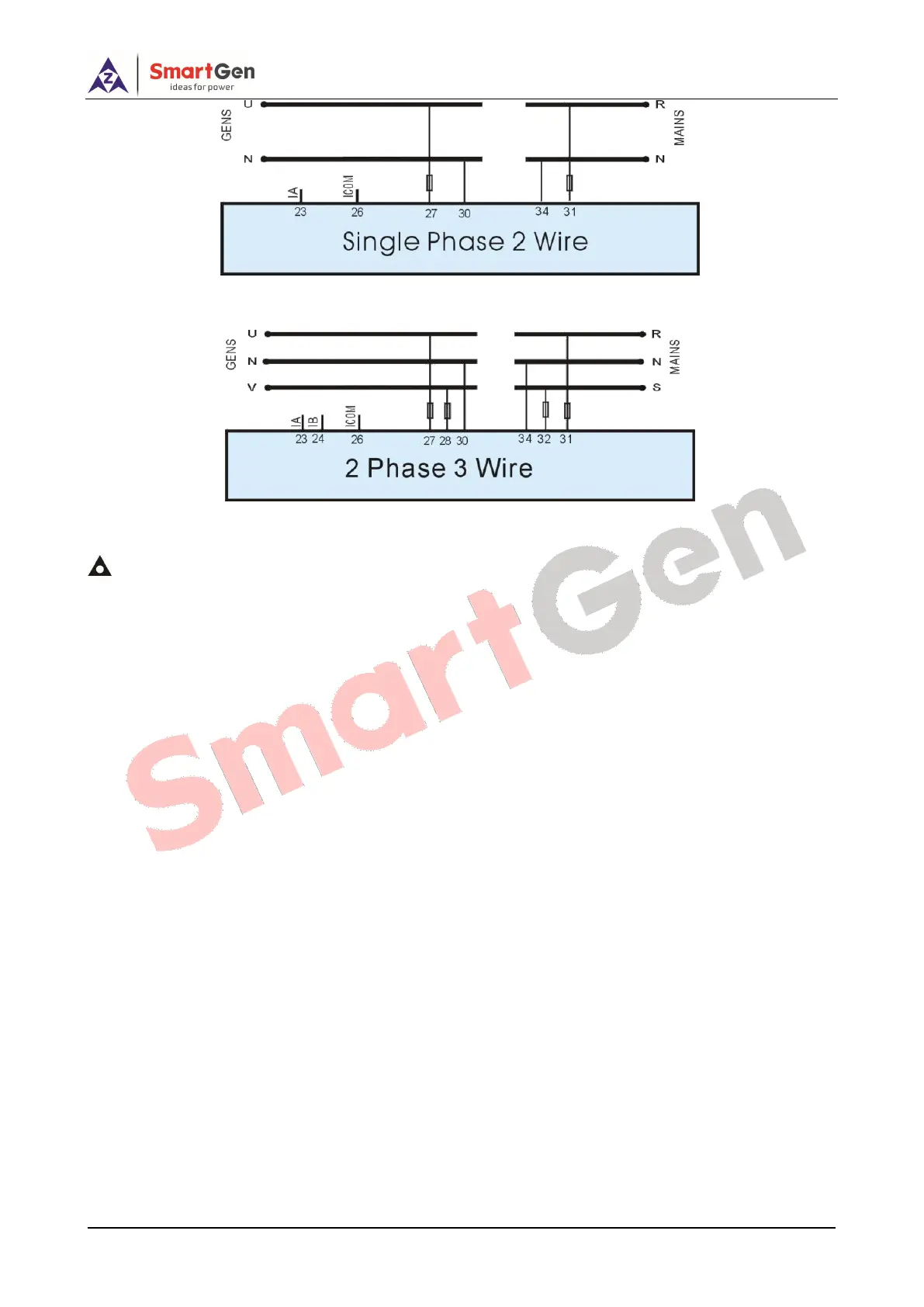

Fig. 9 – Single Phase 2 Wire
Fig. 10 – 2 Phase 3 Wire
NOTE: Recommend that the output of crank and Fuel expand high capacity relay.
