Smartgen HGM6100N Series

HGM6100N Series Genset Controller User Manual Page 16 of 47
6 CONNECTIONS
Compared with HGM6120, HGM6110 doesn’t have 3-phase input terminal of mains voltage. The
back panel of HGM6120 is as below.

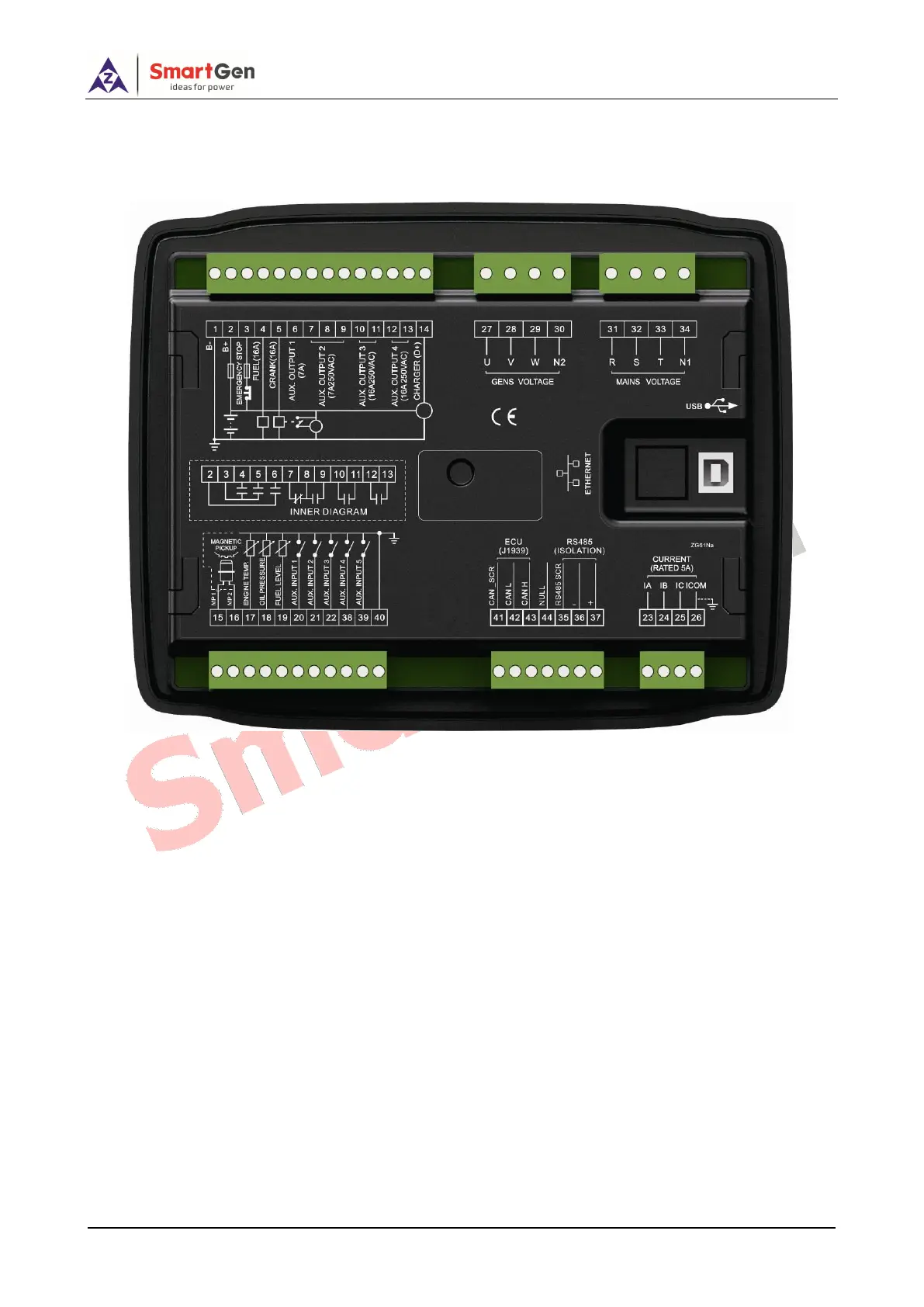

Fig.3 – Controller Rear Panel Drawing
