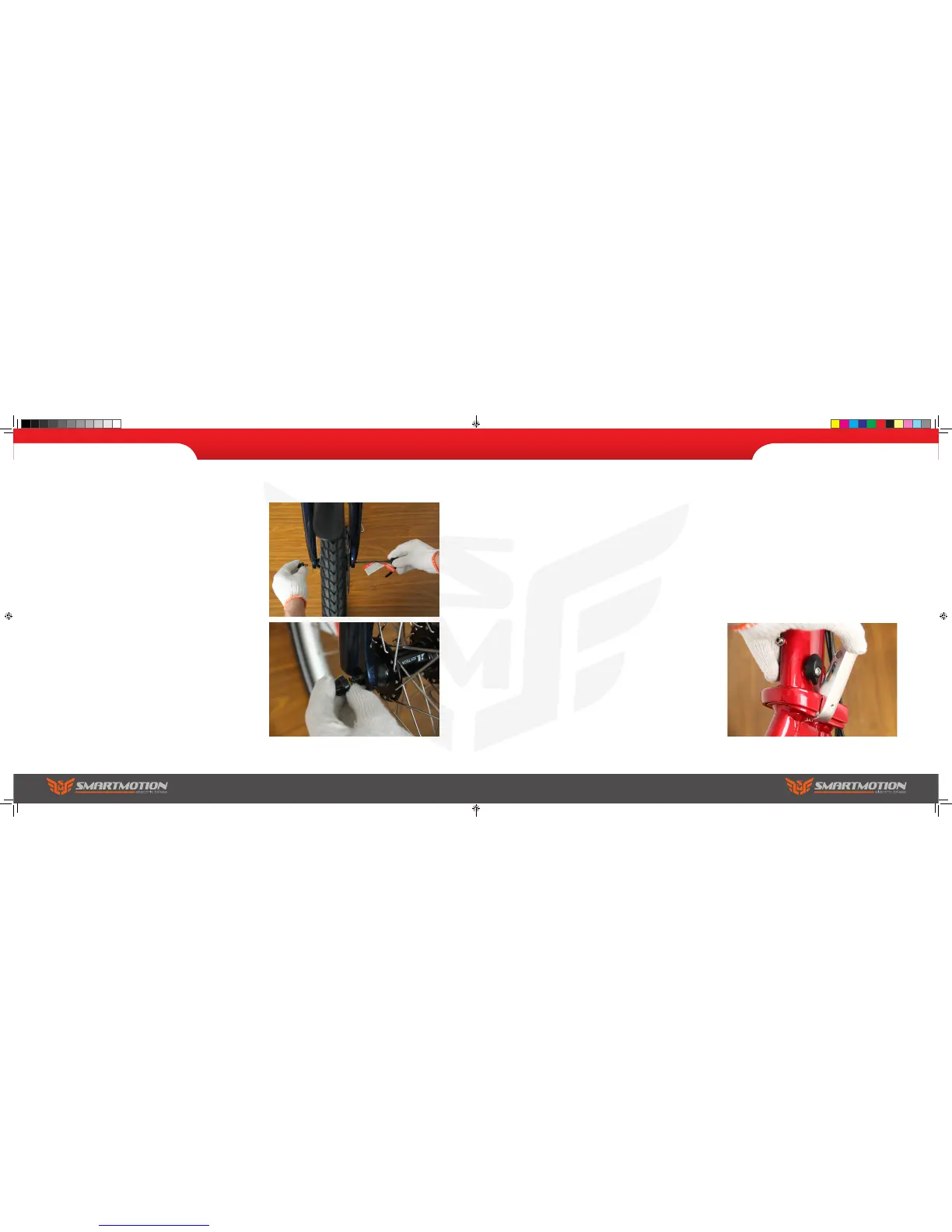

7. Front wheel
Assemble the front wheel quick release axle by
pushing it through the hollow hub, making sure
that one spring is on each side of the hub. Then
screw on the end nut several turns. Next, carefully
lift the bike front forks off the ground and lower the
forks onto the wheel axle, being careful the disc
rotor ts correctly into the disc calipers (this job is
best with 2 people). Tighten the non-rotor side nut
nger tight and try to close the quick release lever.
Loosen or tighten the nut until it takes the correct
amount of force to close the lever. It should be hard
to close, but not so hard you cannot fully close it. It
must fully close (as in picture) otherwise the wheel
may come loose, causing serious injury. Note: if
you are not well trained in cycle assembly, this
procedure must be checked by a cycle technician.
2. Assembly Instructions
To Prepare
We recommend that you familiarise yourself
with the bike parts before assembling. Gather all
required tools. Be sure to work in a clean, dry space
with plenty of room. You might wish to lay down a
tarpaulin or old blanket to protect the bike during
assembly. You may nd it helpful to stand the bike
frame on a block or sturdy box under the battery
housing to work with it in an upright position.
Please watch the balance when installing wheels.
1. Unpack
a. Carefully lift the electric bike out from the carton
(two people recommended for this task). Cut the
nylon zip ties with suitable scissors and remove the
foam protection from the bike.
b. Unfold the main frame until the hinge joint is fully
closed and lock it by pushing alloy lock lever until
it clamps against the frame. Then rotate the plastic
secondary lock down into the alloy lock lever.
The e20 electric bike is shipped folded inside the carton
and 95% assembled. Follow these steps to get it ready
and safe for you to ride.
2. Assembly Instructions
eCity & eUrban e20
Classic user manual.indd 8-9 7/15/2016 4:58:31 PM
