SmartRG™ Residential Gateways
P a g e | 14 C o n f i d e n t i a l S m a r t R G © 2 0 1 2

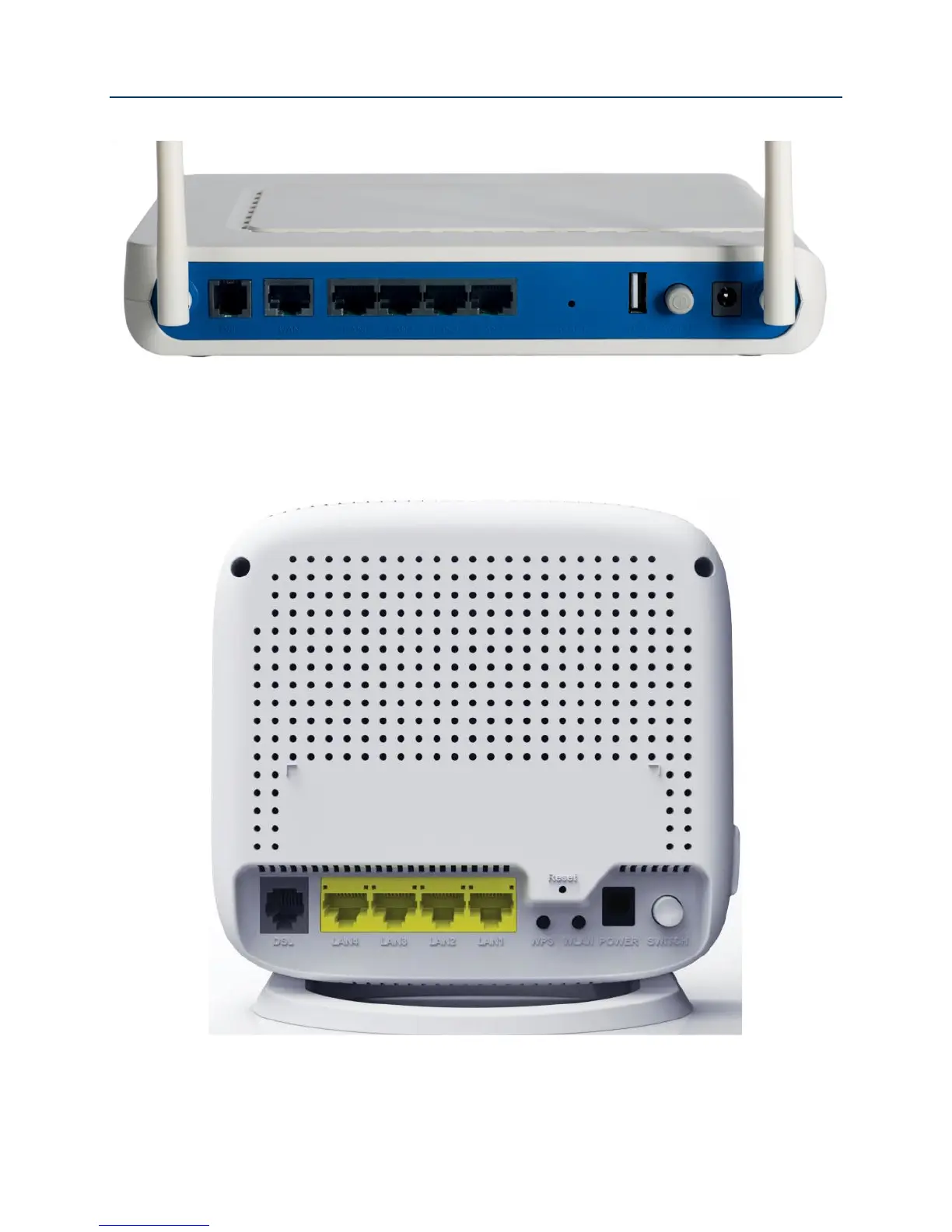

SR500N/SR500NE
DSL(WAN) GigE(WAN) LAN1 - 4 Reset USB On/Off Power
Figure 6 SR500N/NE Rear Panel Connectors
SR505N
DSL(WAN) LAN1 - 4 WPS Reset Power On/Off USB(Side)
Figure 7 SR505N Rear Panel Connectors
