Load Weighing Device
Page 14 ©2021 Smartrise Engineering, Inc. All Rights Reserved September 29,2021

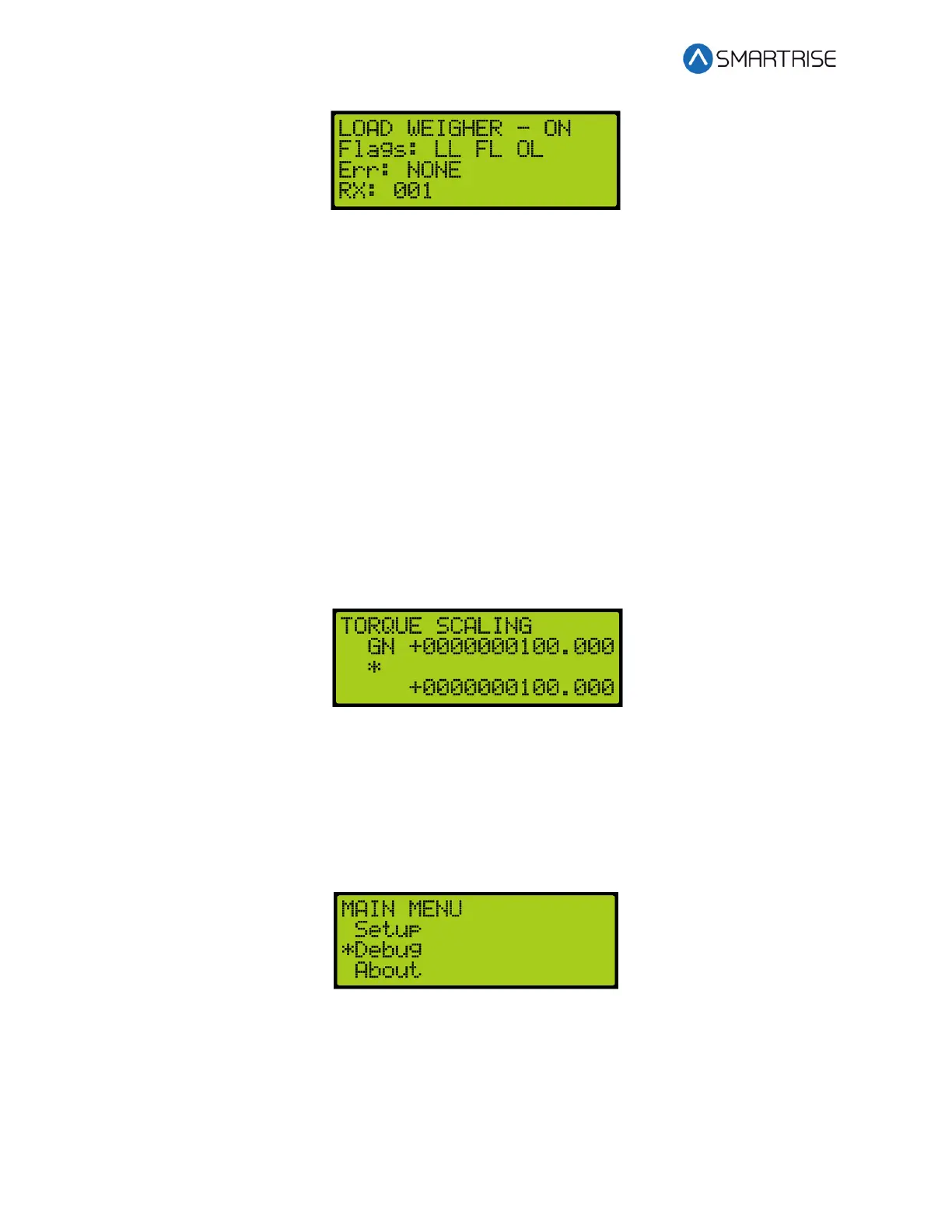

Figure 37: LOAD WEIGHER Menu Part 2 of 2
5. Remove load from the car and position it at the top landing.
Torque Scaling
Load information is used to provide pre-torquing of the motor to accommodate for load
changes and prevent rollback.
The following procedure describe how to set torque scaling.
1. Press the left button until the Main Menu displays.
2. From the MAIN MENU, scroll and select Setup. See Figure 5.
3. From the SETUP menu, scroll and select Load Weigher. See Figure 6.
4. From the LOAD WEIGHER MENU SETUP menu, scroll and select Enter Requests. See
Figure 15.
5. From the Request menu, scroll and select TORQUE SCALING.
Figure 38: Request Menu – TORQUE SCALING
6. Scroll right.
7. Scroll and select command GN.
8. Press Enter to generate torque scaling.
9. Press the left button until Main Menu is displayed displays.
10. From the MAIN MENU, scroll and select Debug.
Figure 39: MAIN Menu – Debug
11. From the DEBUG menu, scroll and select Load Weigher. See Figure 35.
12. Verify the Torque is 100%. See Figure 36.
13. Position the car just below the top landing and enable torque.
14. Press the left button until the Main Menu displays.
15. From the MAIN MENU, scroll and select Setup. See Figure 5.
