SMC Corporation LECP1 series User Manual

- 22 -
No. JXC※-OMU0029-A

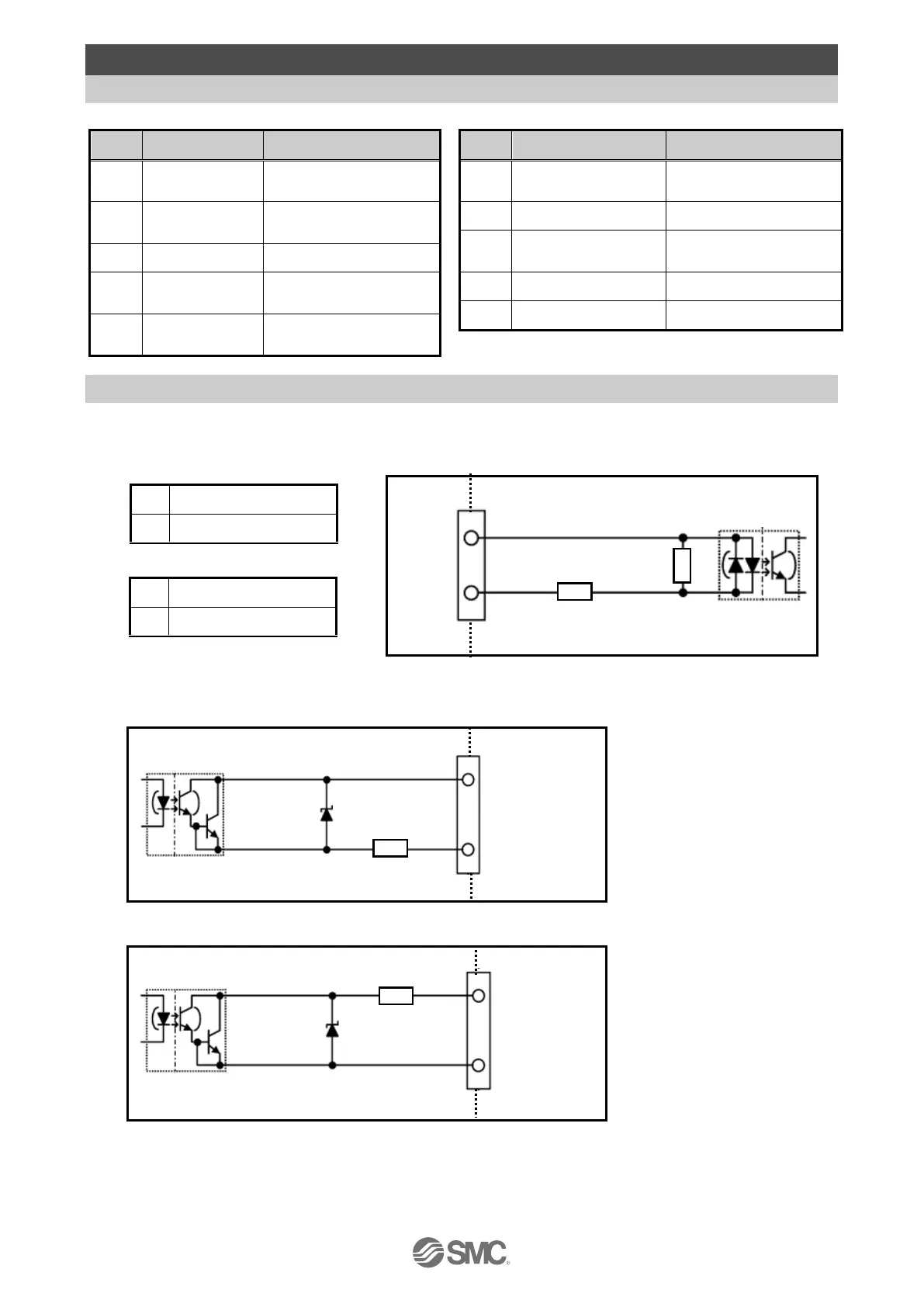

6. CN4: Parallel l/O Connector
6.1 Parallel I/O specifications
● Input specifications ● Output specifications
6.2 Parallel I/O type (NPN / PNP type)
There are two types of parallel I/O for this controller: NPN type and PNP type.
(1) Parallel I/O input circuit (same for both NPN and PNP type)
●
NPN type (LECP1N
□□
-
□
)
●
PNP type (LECP1P
□□
-
□
)
(2) Parallel I/O output circuit
●
NPN type (LECP1N
□□
-
□
)
●
PNP type (LECP1P
□□
-
□
)
No.
Item
Specification
1
Output circuit
Internal circuit and photo
coupler Isolation
2
Number of outputs
6 outputs
3
Max. voltage between
terminal
30 VDC
4
Max. output current
10mA supply / sink
5
Saturation voltage
2.0V (Max.)
No.
Item
Specification
1
Input circuit
Internal circuit and photo
coupler isolation
2
Number of
inputs
6 inputs
3
Voltage
24 VDC +/- 10%
4
Input current at
ON
3.5mA +/- 20%
(at 24 VDC)
5
Input current /
voltage at OFF
Current 1.5 mA or less
Voltage 11V or less
(a)
(b)
Inside of the controller
(a)
「COM+」〈1〉
(b)
IN0〈9〉-STOP〈14〉
(a)
「COM-」〈2〉
(b)
IN0〈9〉-STOP〈14〉
Outside
OUT0〈3〉
-ALARM〈8〉
OUT0〈3〉
-ALARM〈8〉
「COM-」
〈2〉
「COM+」
〈1〉
Inside of the controller
Outside
Inside of the controller
Outside
10Ω
10Ω
6.8kΩ
1kΩ
