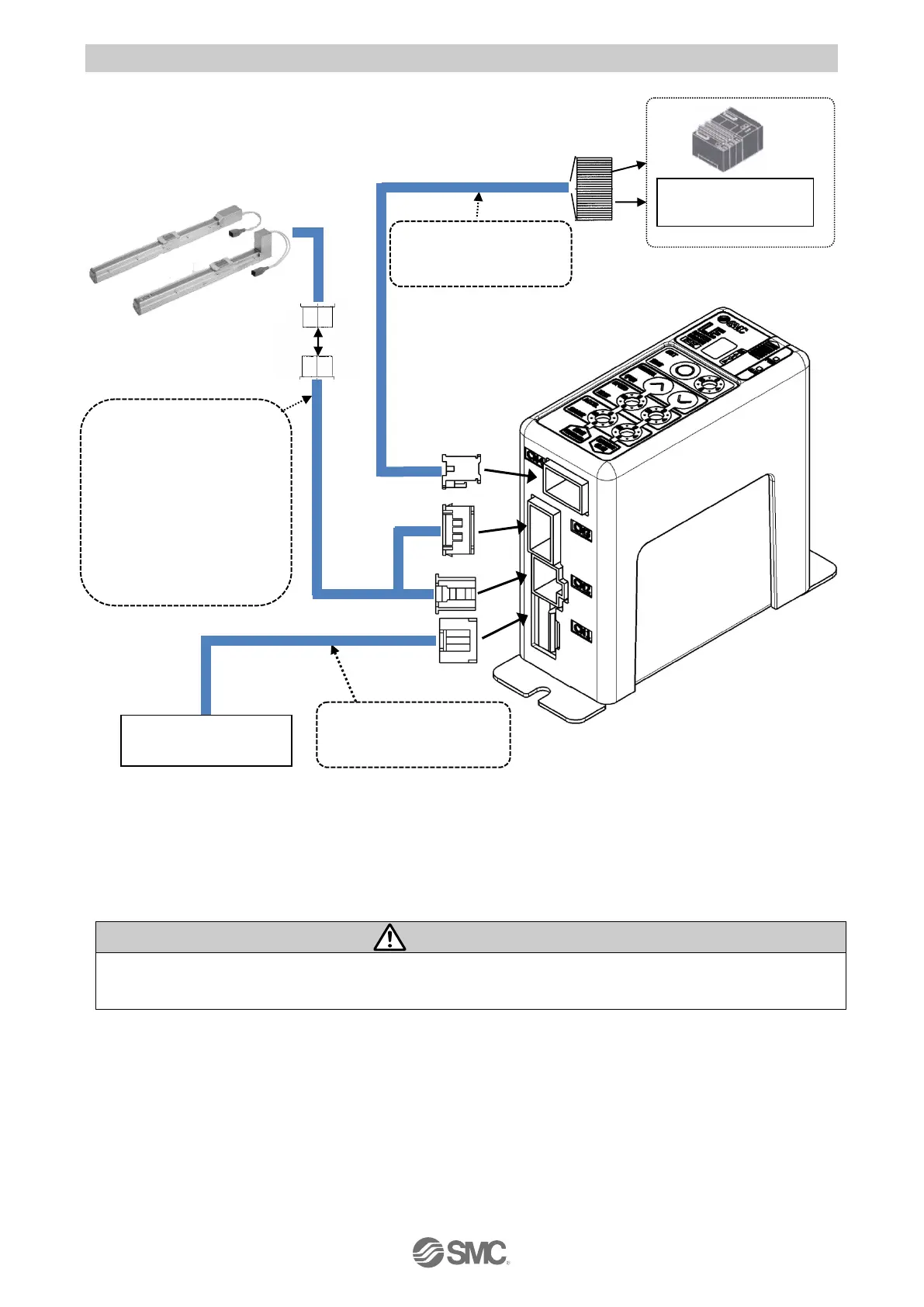

2.2 Product configuration
The product configuration of this controller is as follows.
● Electric actuator
*1)
*1) These items are included when ordered using the part number for an electric actuator set.
*2) When conformity to UL is required, the electric actuator and controller should be used with a
UL1310 Class 2 power supply.
Warning
Refer to “4. External Connection for wiring”
Refer to “12. Precautions for wiring and cables” when handling the wiring and cables.
To CN4
To CN3
To CN2
To CN1
●Controller
●Power supply cable
Part No: LEC-CK1-1
I/O cable
*1)
Part No: LEC-CK4-□
●Actuator cable
*1)
Part No: LE-CP-□-S
LE-CP-□-B-S
(Standard cable)
LE-CP-□
LE-CP-□-B
(Robotic type cable)
Controller power supply
24 VDC
