SMC Networks Barricade SMC7008ABR User Manual

7008ABR – Manual
35

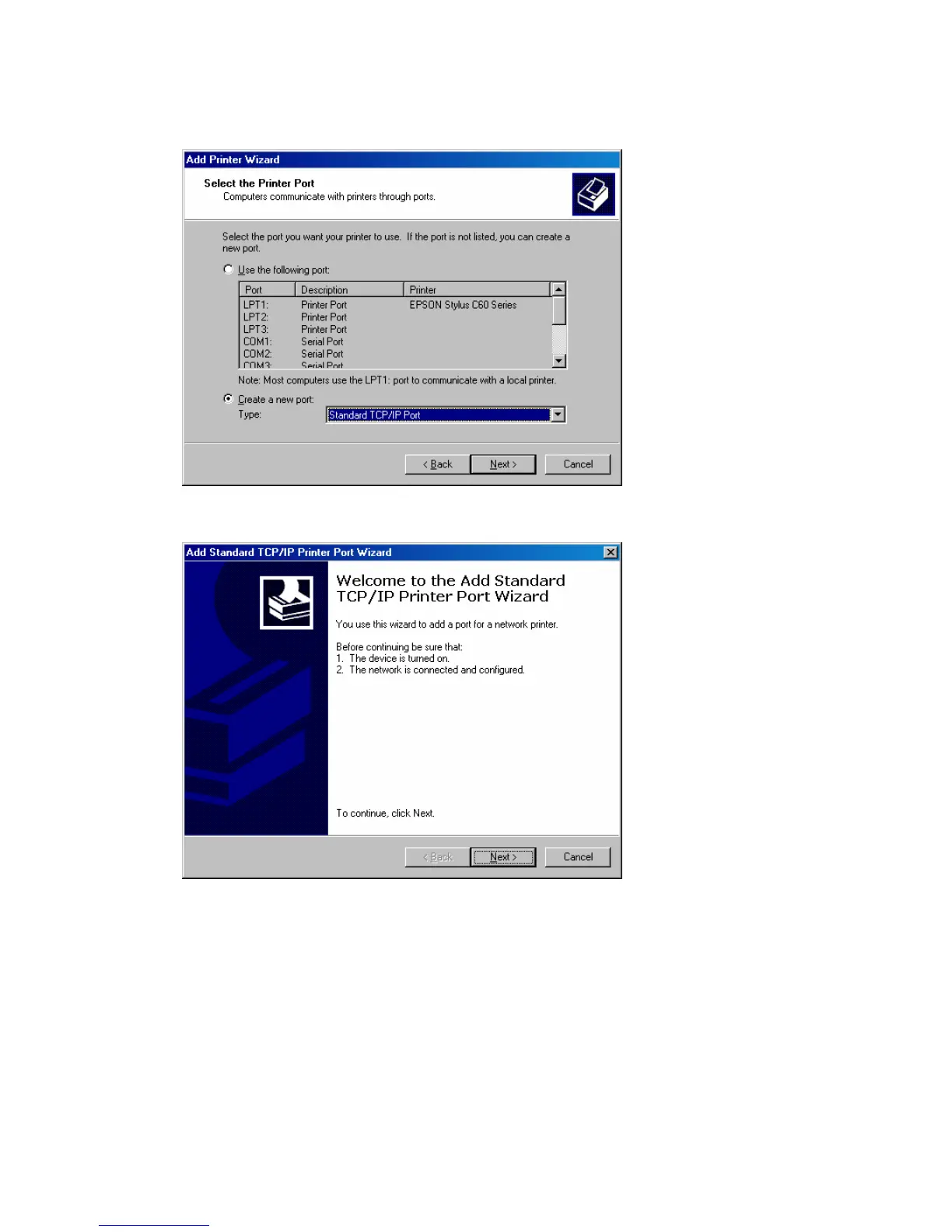

7. Select the [Create a New Port] option and then select the [Standard TCP/IP Port] option in
the drop down menu.
8. When you click the [Next] button the [Add Standard TCP/IP Printer Port Wizard] will launch.
9. To start this new installation wizard click the [Next] button
10. Provide the appropriate IP and Port name information for your new Printer port. If you are
using default settings on the router you can use the following information:
Printer Name or IP Address: 192.168.2.1
Port Name: IP_192.168.2.1
Note: this is the IP that you use to admin your router with (for example: 192.168.2.1). If
you have changed this IP address then please use the new one that you have assigned to
your router.
11. Click the [Next] button to continue
12. On the next dialog box, under the [Device type] choose the [Custom] option
13. Then click the [Settings…] button to input the Specific Barricade Printer port information.

SMC Networks Barricade SMC7008ABR Specifications

Ports & Interfaces

Ethernet ports	8 10Base-T/100Base TX RJ-45 ports
Broadband WAN port	One 10Base-T port
PSTN/ISDN connection port	One DB-9 port
Printer port	One DB-25 port

Operating Environment

operating temperature	0 to 40°C
storage temperature	-40 to 70°C
humidity	5% to 95% (non-condensing)

Weight and Dimensions

size	24.92 x 11.63 x 3.66 cm
weight	1.766 kg
