CHAPTER 3 | Getting Connected
The Barricade Broadband router is connected between the Cable/DSL Broadband Modem and your
computers. If you have more then one computer to connect, simply plug the other computers into
the LAN ports on the front of the router.
3.1 | Basic Installation Procedure
1. Connect the LAN
Run an Ethernet cable from one of the LAN ports on the front of the Barricade to your
computer’s network adapter.
2. Connect the WAN
Connect an Ethernet cable from your cable or DSL modem or the Barricade’s WAN port on
the back on the router.
3. Power on
Connect the power cable to the Barricade.
Once you have completed connecting all of the hardware, simply insert the Barricade CD-ROM and
the 3-Click EZ Installation Wizard will automatically connect you to the Internet.
For manual Configuration of the PCs see Chapter 4.
For advanced Configuration of the Barricade Broadband Router see Chapter 5.

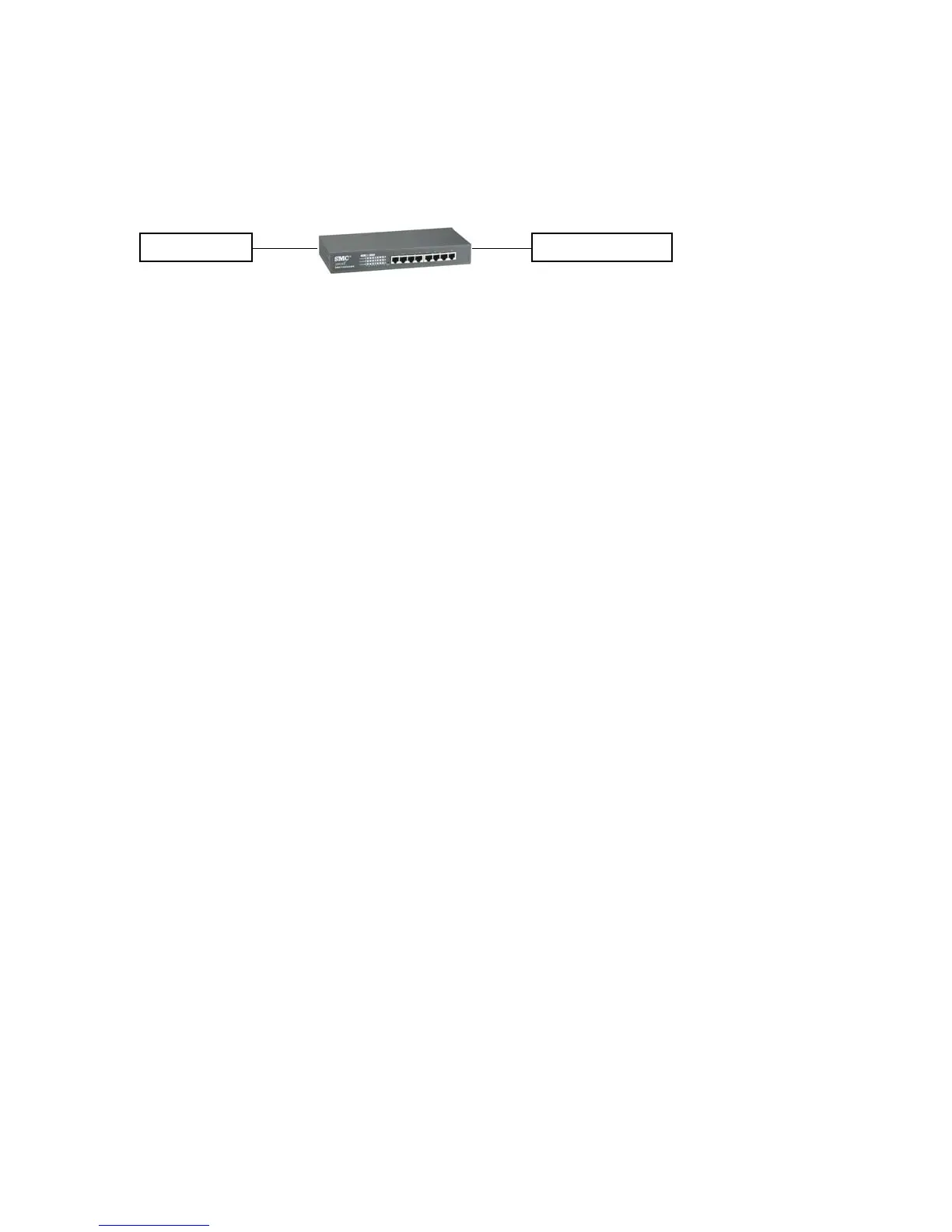

M
O
DEM
CO
MP
U
TER

SMC Networks Barricade SMC7008ABR Specifications

Ports & Interfaces

Ethernet ports	8 10Base-T/100Base TX RJ-45 ports
Broadband WAN port	One 10Base-T port
PSTN/ISDN connection port	One DB-9 port
Printer port	One DB-25 port

Operating Environment

operating temperature	0 to 40°C
storage temperature	-40 to 70°C
humidity	5% to 95% (non-condensing)

Weight and Dimensions

size	24.92 x 11.63 x 3.66 cm
weight	1.766 kg
