2.1.3. Top Panel

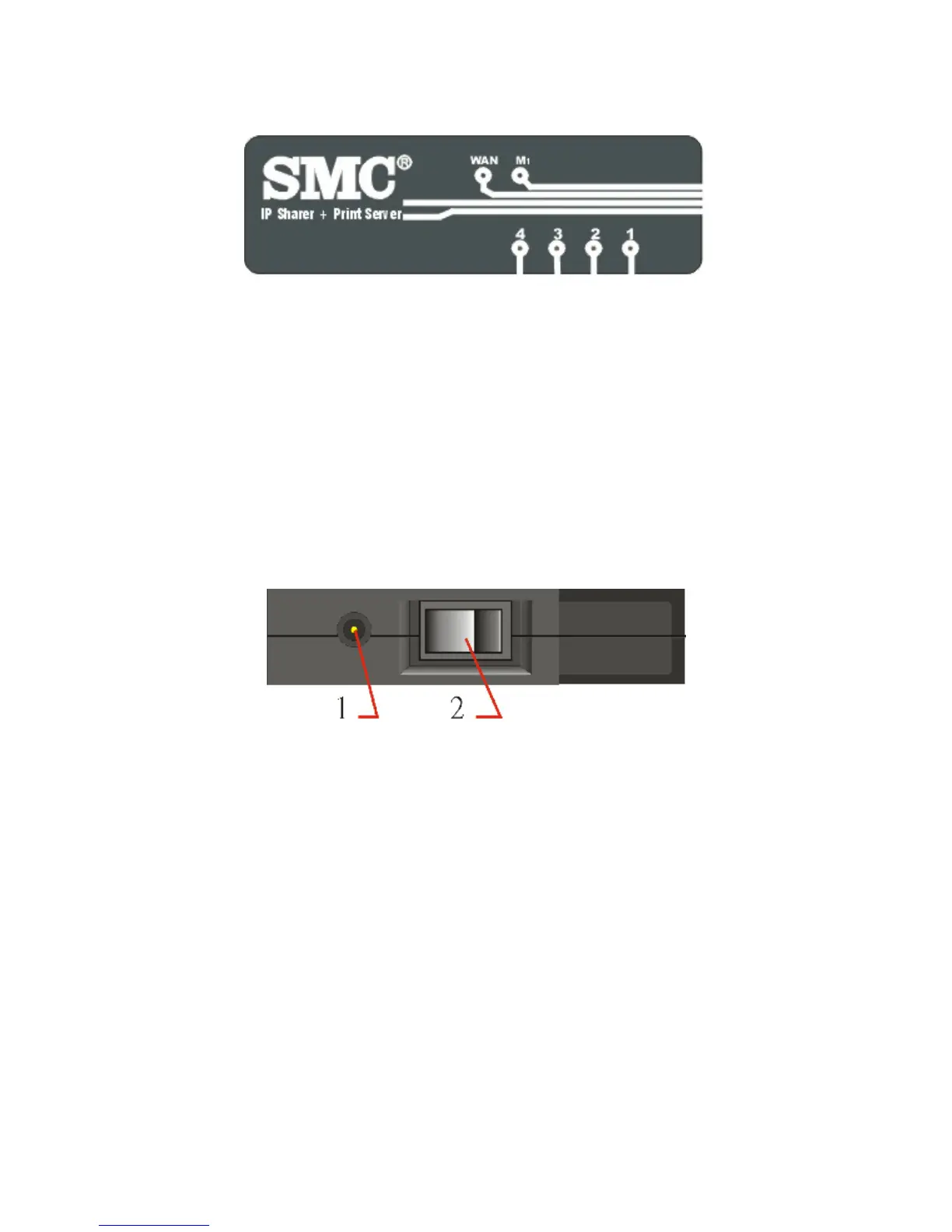

Figure 2-3 Top Panel
LAN Port 1-4 LAN port indicators, Green
. The LED flashes when the LAN port is
sending or receiving data.
WAN WAN port indicator, Green. The LED
flashes when the WAN port is
sending or receiving data.
M1 System status indicators, Orange
. M1 flashes once per second to
indicate the system is functioning properly.
2.1.4. Left Side Panel
Figure 2-4 Left Side Panel
1. Power Power inlet. This is whe
re you connect the included power adapter.
Note: The included power adapter is DC 5V/1A. Using the wrong type
of power adapter may cause damage.
2. Switch Power switch.
2.2 Installation Requirements
The Barricade can be positioned at any convenient place in your office or home. No special
wiring or cooling requirements are needed. You should, however comply with the following
guidelines:
l Place product on a flat horizontal plane.
